Network Extenders
DAHUA PFT1500 Network Transmitter PoE Extender 1000 Mbit/s Metal Black (NET POE EXTENDER PFT1500 DAHUA)
- Transmission Distance: Extends PoE up to 350 meters
- Ports: 4x 100 Mbps and 1x 1000 Mbps PoE Ethernet ports
- Standards: IEEE802.3af, at, Hi-PoE, and IEEE802.3bt compliant
- Protection: Lightning protection up to 4 kV with PoE Watchdog
- Delivery & Warranty: Fast shipping to Latvia, as well as Estonia and Lithuania. 2-Year Warranty for all clients (Business & Private).
65,92€
€54.48 (bez PVN)
PFT1500 | Network transmitter | Maximum transfer distance 250 m | Data transfer rate 1000 Mbit/s | Cabling technology 10/100/1000Base-T(X) | Colour Black | Housing material Metal | Mounting type Desk | Power consumption (typical) 5 W | Operating temperature (T-T) -30 – 65 °C | Weight 470 g

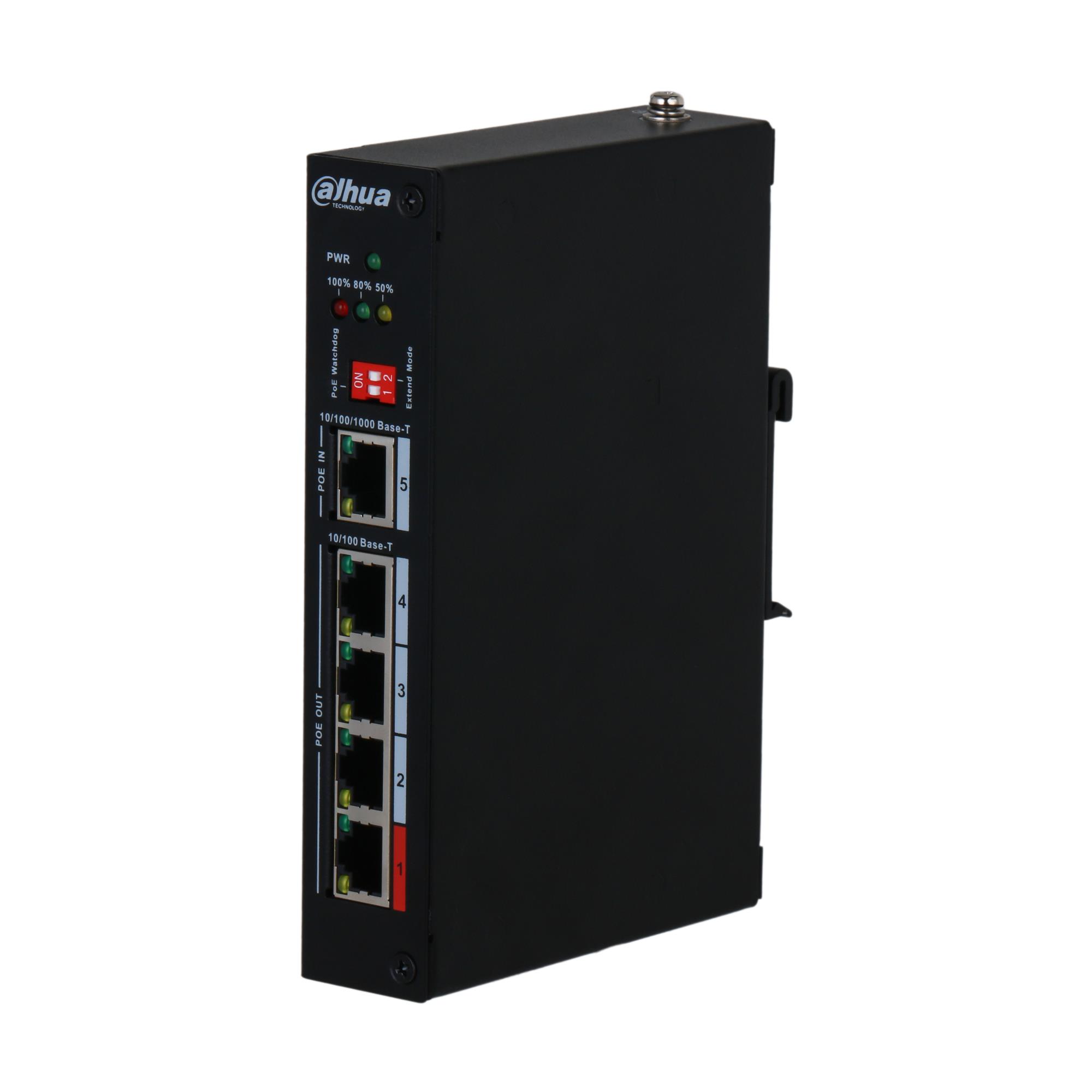

The Device is a hardened PoE extender. It works together with conventional PoE devices to extend their maximum base transmission distance to 350 meters.

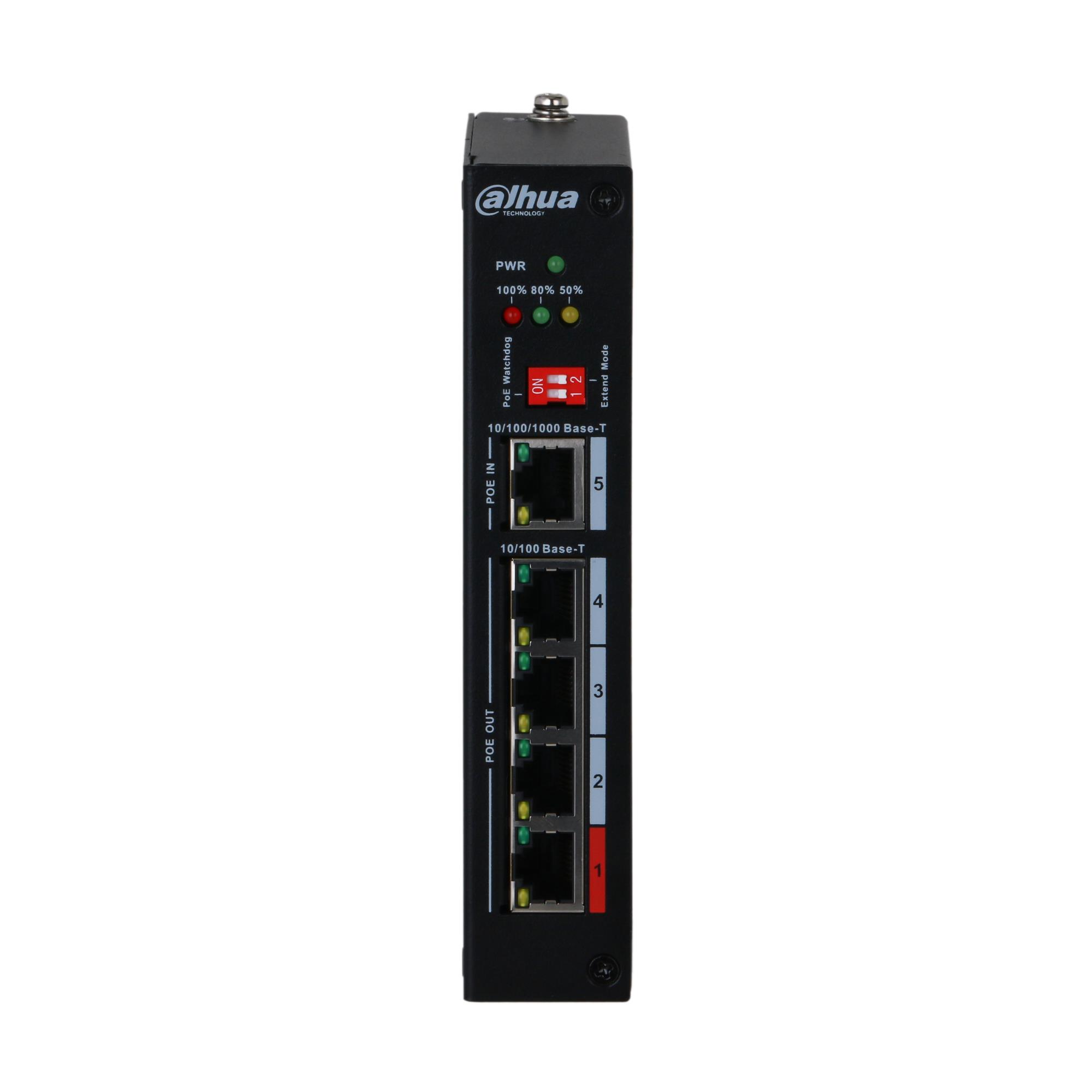

- 4× 100 Mbps PoE Ethernet ports, 1 × 1000 Mbps PoE Ethernet port
- All ports meet the requirements of IEEE802.3af and IEEE802.3at standards. The red ports also conform with Hi-PoE and IEEE802.3bt standards
- 250 m long-distance PoE transmission, which can be enabled by the DIP switch
- PoE Watchdog for real-time detection of terminal device status
- Fanless
- Full-metal
- Lightning Protection: common mode: 4 kV, differential mode: 2 kV

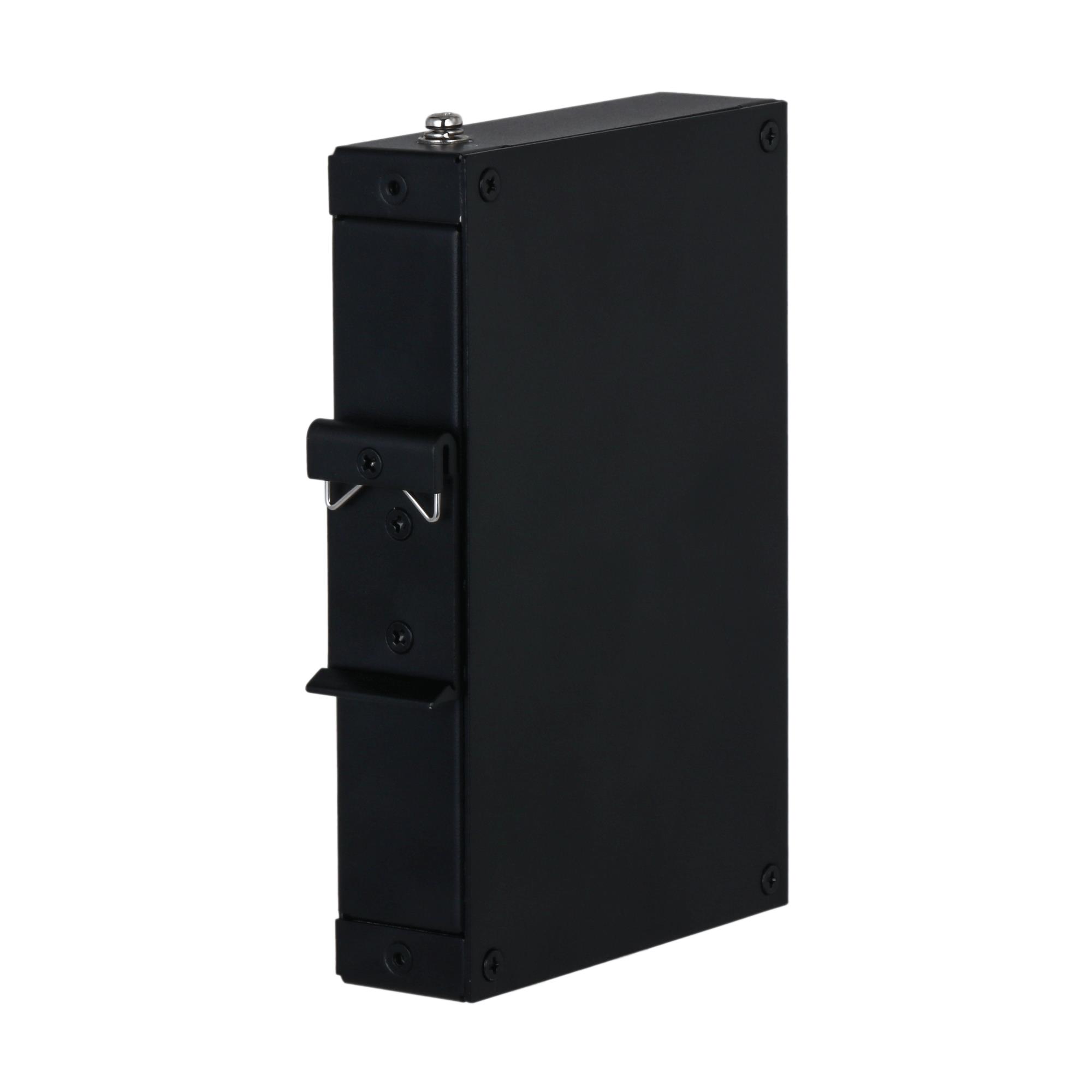

- Desktop mount and DIN-rail mount
| Summary | Dahua Technology PFT1500. Type: Network transmitter, Maximum transfer distance: 250 m, Data transfer rate: 1000 Mbit/s. Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u,…. Host interface: RJ-45. Product colour: Black, Housing material: Metal, Mounting type: Desk. Power consumption (typical): 5 W, Power consumption (transmitter) (max): 90 W, Total Power over Ethernet (PoE) budget: 90 W |
| Unit Box Height | 0.075 |
| Unit Box Length | 0.265 |
| Unit Box Width | 0.24 |
| Type | Network transmitter |
| Maximum transfer distance | 250m |
| Data transfer rate | 1000Mbit/s |
| Ethernet LAN data rates | 10/100/1000Mbit/s |
| Flow control support | Yes |
| Jumbo frames support | Yes |
| MAC address table | 4000entries |
| MTBF (transmitter) | 66.37h |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z |
| Host interface | RJ-45 |
| Ethernet LAN (RJ-45) ports | 5 |
| Power over Ethernet (PoE) ports quantity | 4 |
| Product colour | Black |
| Housing material | Metal |
| Mounting type | Desk |
| LED indicators | PoE |
| Quantity per pack | 1pc(s) |
| Power consumption (typical) | 5W |
| Power consumption (transmitter) (max) | 90W |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 90W |
| Operating temperature (T-T) | -30 – 65°C |
| Storage temperature (T-T) | -40 – 70°C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (transmitter) | 5 – 95% |
| Width | 150mm |
| Depth | 100mm |
| Height | 30mm |
| Weight | 470g |
| Package type | Box |
| Package width | 265mm |
| Package depth | 238mm |
| Package height | 76mm |
| Package weight | 650g |
| Sustainability compliance | Yes |
| Compliance certificates | CE/Federal Communications Commission (FCC) |
| Unit Calculated Weight | 0.8kg |
| Units per Shipping Box | 8 |
| Unit Width | 24cm |
| Units per Pallet | 0 |
| Unit Depth | 26.5cm |
| Unit Height | 7.5cm |
| Unit Calculated Volume | 0.00572cubm |
| Shipping Box Weight | 6.4kg |
| Shipping Box Height | 32cm |
| Shipping Box Depth | 55cm |
| Shipping Box Width | 26cm |
| Name | NET POE EXTENDER/PFT1500 DAHUA |
| Model name | PFT1500 |
Based on 0 reviews
Only logged in customers who have purchased this product may leave a review.
What are the power consumption and total PoE budget specifications for the PFT1500?
The typical power consumption of the device is 5 W, with a maximum transmitter power consumption of up to 90 W and a total Power over Ethernet (PoE) budget of 90 W.
What warranty and support are provided when purchasing this product from Apsardze24.lv?
Apsardze24.lv offers a 2-year warranty for both business and private clients. For any specific technical inquiries regarding setup or compatibility, please contact our technical support at [email protected].
Is the DAHUA PFT1500 compatible with high-power PoE standards?
Yes, all ports meet IEEE802.3af and IEEE802.3at standards, while the red ports also conform to Hi-PoE and IEEE802.3bt standards.
What mounting options are available for the DAHUA PFT1500 PoE extender?
The device supports both desktop mounting and DIN-rail mounting, housed in a durable full-metal chassis that operates in temperatures ranging from -30 to 65 °C.
What is the maximum transmission distance supported by the DAHUA PFT1500 network transmitter?
The DAHUA PFT1500 extends PoE transmission up to 250 meters as a standard base distance, and up to 350 meters when working together with conventional PoE devices.
