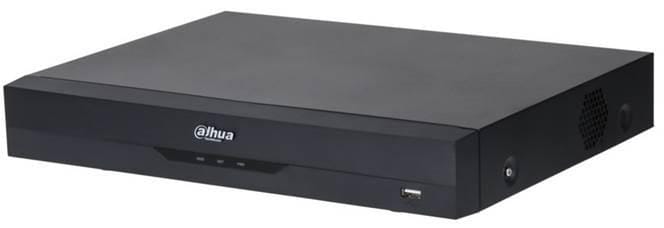

XVR5116HS-I3 Dahua 16-Channel 5M-N WizSense Pentabrid AI DVR

  • 16-Channel Pentabrid 5M-N/1080P & H.265+
  • WizSense AI: SMD Plus & Face Recognition
  • Supports 16+8 IP Channels up to 6MP
  • Fast shipping to Latvia, Estonia, Lithuania
  • 2-Year Warranty

Dahua

156,16€
€129.06 (bez PVN)

8 Channel | Camera Compatibility Analog/IP/AHD 5MP/HDCVI 720P/HDCVI 1080P/HDCVI 4MP/HDCVI 8MP/HD-TVI/TurboHD 5MP | DC12V, 2A

Pentabrid capability: Each channel supports up to 6MP: IP, HDCVI, AHD, TVI and CVBS access can be configured
16-channel BNC interface
Recording: HDCVI/AHD/HD-TVI recording:, 5MP, 4MP, 3MP, 2MP
All channel 5M-N (1 fps–10 fps); 4M-N/1080P (1 fps–15fps); 1080N/720P/960H/D1/CIF (1fps–25/30 fps)
IP: 16+8 channels, each channel up to 6MP, Max 128 Mbps incoming bandwidth
AI Coding/H.265+/H.265/H.264+/H.264 video compression
G.711A, G.711U, PCM audio compression,
1x SATA interface up to 16 TB storage
VGA/HDMI up to 4K output
RJ-45, 2x USB ports, RS485
No front panel control, 1/1 Audio I/O, no Alarm I/O, Audio over Coax for 8 channels
Mini 1U case, mouse included
ONVIF 16.12, CGI Conformant, Smart Search
Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
AI: Up to 2 channels video stream (analog channel) Perimeter Protection
Up to 16 channels video stream (analog channel) SMD Plus
Up to 2 channels video stream (analog channel) human face recognition
IoT & POS functionalities
Free IP monitoring software available

Unit Box Height0.315
Unit Box Length0.335
Unit Box Width0.09
SATAYes
USBYes
15pin D-sub1
Audio-In1
Audio-Out1
HDMI1
DVR type8 Channel
Camera CompatibilityAHD 5MP/Analog/HDCVI 1080P/HDCVI 4MP/HDCVI 720P/HDCVI 8MP/HD-TVI/TurboHD 5MP/IP
Power supply requirementsDC12V, 2A
Dimensions260.0 mm × 237.4 mm × 47.6 mm
Units per Shipping Box1
Unit Calculated Volume0.009497cubm
Product Net Weight0.9kg
Unit Calculated Weight1.54kg
SKU: DAHUA-DH-XVR5116HS-I3 Category:

Based on 1 review

0.0 overall
1
0
0
0
0

Only logged in customers who have purchased this product may leave a review.

  1. Matthew Taylor –

    This Dahua WizSense DVR is a solid piece of kit. The AI features, particularly the SMD Plus, have made my security system much more reliable. I’m very satisfied with the 4K video quality and the easy interface. Apsardze24.lv provided excellent service and fast shipping. It’s a great value for a 16-channel setup.

    Matthew Taylor –

Is this Dahua model the Official EU version or a grey market import?

This is the **Official EU version**. Unlike grey market units, it supports all official firmware updates and has no region locks. Apsardze24.lv is an authorized partner ensuring full compliance.

Can I use IP cameras with this XVR5116HS-I3 analog recorder?

Yes, this is a Pentabrid system. It supports 16 analog (BNC) channels plus an additional 8 IP channels (up to 6MP). You can also switch BNC channels to IP mode for a flexible hybrid setup.

What kind of monitor can I connect to the XVR5116HS-I3?

You can connect monitors via the HDMI or VGA ports. The HDMI output supports resolutions up to 4K (3840 × 2160), allowing for crystal-clear viewing of your 5M-N footage.

What happens if my device stops working after a year?

We provide a comprehensive **2-Year Warranty** for all customers. Since our service center is based in **Riga**, warranty claims are handled locally and quickly without shipping equipment abroad.

Does the XVR5116HS-I3 support audio recording via the coaxial cable?

Yes, this model supports Audio over Coax (AoC). If your HDCVI cameras have built-in microphones, the audio is transmitted directly through the coaxial cable without needing extra wiring.

I am having trouble configuring Face Recognition; who can help?

Face recognition requires specific setup steps regarding camera angles and database management. For detailed configuration guides or technical assistance, please email us at [email protected].

How does the WizSense SMD Plus feature improve security on this DVR?

SMD Plus (Smart Motion Detection) uses AI to distinguish between real threats and false alarms. It filters out motion caused by rain, leaves, or pets, triggering alerts only when humans or vehicles are detected.

Which mobile app is compatible with the XVR5116HS-I3 for remote viewing?

You should download the **DMSS** app, which is available for free on both iOS and Android. It allows for easy P2P setup to view live video, play back footage, and receive push notifications from your Dahua recorder.

What is the maximum hard drive capacity for the XVR5116HS-I3 Dahua DVR?

This unit has 1 SATA interface that supports a hard drive up to **16 TB**. Combined with AI Coding and H.265+ compression, this maximizes your recording duration significantly compared to older codecs.
