LS1005 | Type Unmanaged | 5xBasic switching RJ-45 Ethernet ports quantity | Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100) | Switching capacity 1 Gbit/s | Forwarding rate 0.7 Mpps | Product colour White | Power source DC | Power supply included Yes | Width 83.6 mm | Depth 45.7 mm | Height 22.8 mm
5× 10/100Mbos Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX
Green Ethernet technology saves power consumption
IEEE 802.3X flow control provides reliable data transfer
Plastic casing and desktop design
Plug and play, no configuration required
Fanless design ensures quiet operation
Easily Expand Your Network and Save Energy

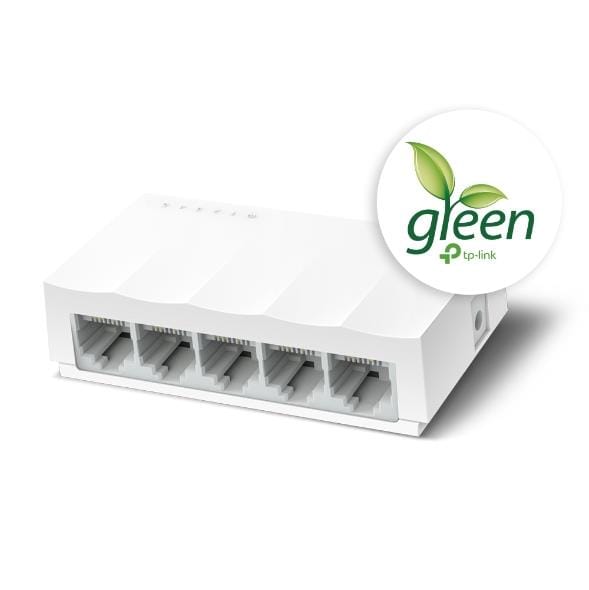

5-Port 10/100 Mbps Desktop Switch
Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.
Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!
Fanless and Desktop Design
Compact desktop design, to meet your needs in any environment.
Besides, fanless design ensures quiet operation.
Use Where You Need, However You Need
The LS1005 is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
- 5× 10/100Mbos Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3X flow control provides reliable data transfer
- Plastic casing and desktop design
- Plug and play, no configuration required
- Fanless design ensures quiet operation
| Summary | TP-Link 5-Port 10/100Mbps Desktop Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack |
| Unit Box Height | 0.085 |
| Unit Box Length | 0.095 |
| Unit Box Width | 0.095 |
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
| Networking standards | IEEE 802.3i/IEEE 802.3u/IEEE 802.3x |
| Forwarding rate | 0.7Mpps |
| Jumbo frames | 2000 |
| Jumbo frames support | Yes |
| MAC address table | 2000entries |
| Store-and-forward | Yes |
| Switching capacity | 1Gbit/s |
| Housing material | Plastic |
| LED indicators | Activity/Link/Power |
| Product colour | White |
| Rack mounting | No |
| Wall mountable | No |
| Input current | 0.6A |
| Input voltage | 5V |
| Power consumption (max) | 1.65W |
| Power source | DC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
| Heat dissipation | 5.627BTU/h |
| Operating relative humidity (H-H) | 10 – 90% |
| Operating temperature (T-T) | 0 – 40°C |
| Storage relative humidity (H-H) | 5 – 90% |
| Storage temperature (T-T) | -40 – 60°C |
| Depth | 45.7mm |
| Height | 22.8mm |
| Width | 83.6mm |
| Quick start guide | Yes |
| Package depth | 88mm |
| Package height | 84mm |
| Package type | Box |
| Package weight | 80g |
| Package width | 82mm |
| Certification | CE, FCC, RoHS |
| Harmonized System (HS) code | 85176990 |
| Model | LS1005 |
| Model name | LS1005 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.0006885cubm |
| Unit Calculated Weight | 0.15kg |
Based on 0 reviews
Only logged in customers who have purchased this product may leave a review.
What is the warranty coverage for the LS1005 when shipping to Estonia or Lithuania?
Apsardze24.lv provides a 2-year warranty for all clients in the Baltics. We offer fast shipping to Latvia, Estonia, and Lithuania, with local service support handled through our center in Riga.
Do I need to use a specific crossover cable to connect the LS1005 to another switch?
No, all 5 ports support Auto-MDI/MDIX. This technology automatically detects the cable type and connection requirements, allowing you to use standard straight-through Ethernet cables for all devices.
Does the TP-Link LiteWave LS1005 package include a power supply unit?
Yes, a DC power adapter is included in the box. When purchasing from Apsardze24.lv, you receive the official EU version, ensuring the power plug is compatible with local wall outlets.
Does the fanless design of the LS1005 cause it to overheat during heavy use?
No, the fanless design is optimized for the low power consumption (max 1.65W) of this device. It remains cool and operates completely silently, making it ideal for quiet environments like bedrooms or offices.
Can I use this 5-port switch to provide power to my IP security cameras?
No, the LS1005 does not support Power over Ethernet (PoE). If your devices require power through the network cable, please contact our technical support for a compatible PoE model at [email protected].
Is the TP-Link LS1005 fast enough for 4K video streaming or gaming?
This switch supports a maximum speed of 100 Mbps per port. While this is sufficient for a single 4K stream (typically 25-50 Mbps), it may become a bottleneck if multiple high-bandwidth devices are active simultaneously compared to a Gigabit switch.
Is there any software configuration required to start using the LS1005?
No configuration is needed because this is an unmanaged switch. It is a strictly 'plug and play' device; simply connect your router and your devices to the ports, and the network will expand instantly.
Can the LS1005 be mounted on a wall or is it for desktop use only?
This model is designed specifically as a compact desktop switch and does not include wall-mounting slots. However, its very small dimensions (83.6 x 45.7 mm) allow it to fit easily in most enclosures or small shelving units.
