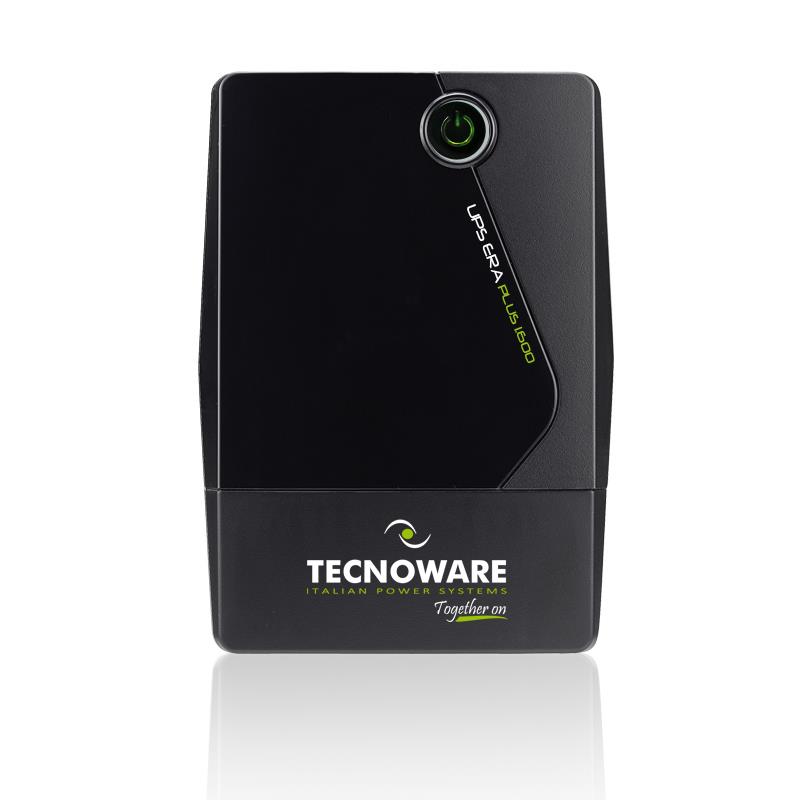

Tecnoware Era Plus 1600 UPS 1.6kVA 1120W Line-Interactive AVR Schuko USB Black (FGCERAPL1602SCH)

  • Capacity: 1600 VA / 1120 W (Line-Interactive)
  • Outlets: 2x Schuko (Backup + Surge)
  • Features: AVR, USB Port, Silent Operation
  • Application: Office PC, DVR/NVR, Modems
  • Fast shipping to Latvia, as well as Estonia and Lithuania. 2-Year Warranty for all clients.

TECNOWARE

93,62€
€77.37 (bez PVN)

UPS topology Line-Interactive | Output power capacity 1.6 kVA | Output power 1120 W | Waveform Sine | Input operation voltage (min) 172.5 V | Input operation voltage (max) 276 V | Input frequency 50/60 Hz | Output frequency 50/60 Hz | Response time 2 ms | Number of input phases 1 | Number of output phases 1 | AC outlet types Type F | USB port Yes | Battery technology Sealed Lead Acid (VRLA) | Form factor Compact | Colour Black | LED indicators Yes | International Protection (IP) code IP20 | Operating temperature (T-T) 0 – 55 °C | Operating altitude 0 – 300 m | Weight 5 kg

UPS ERA PLUS 1600VA, 12V 11Ah battery, It has 1 fixed SCHUKO input cable and 2 SCHUKO outputs protected against blackout, overvoltages and undervoltages. Line Interactive Plus technology. Dimensions 10x14x28 cm, weight 5.5 kg. Equipped with On-Off button with integrated multifunction LED with audible alarm for signaling the operating status and USB interface for controlling UPS continuity and programming on / off via the free tecnomanager win / mac software. Designed to protect PC Office, DVR for video surveillance, ADSL-Fiber Modem / router, Cash Register. Totally silent.

  • Complete protection against blackout and power surges (overvoltages and undervoltages)
  • Recommended for Personal Computers, DVR / NVR and video surveillance systems, ADSL / fiber modem, switch / router, cash registers
  • Not suitable with power supplies with Active PFC circuit (Server, PC game, video game console, workstation, Mac computer), lamps and electric motors
  • AVR Automatic Voltage Regulator electronic circuit
  • n 2 Italy / Schuko output sockets and n 1 schuko input cable
  • outputs socket protected against blackout
  • outputs socket protected against overvoltages
  • multifunction LED and on-off button
  • USB port for UPS control / monitoring and ignition programming / shutdown via Tecnomanager software
  • UPS management software TecnoManager compatible with Windows, Mac OS X, Linux etc
SummaryTecnoware Era Plus 1600. UPS topology: Line-Interactive, Output power capacity: 1.6 kVA, Output power: 1120 W. AC outlet types: Type F, AC outlets quantity: 2 AC outlet(s), USB port type: USB Type-B. Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 10 min. Form factor: Compact, Product colour: Black, International Protection (IP) code: IP20. Certification: CE
Unit Box Height0.22
Unit Box Length0.34
Unit Box Width0.18
Automatic Voltage Regulation (AVR)Yes
Input frequency50/60Hz
Input operation voltage (max)276V
Input operation voltage (min)172.5V
Noise level40dB
Number of input phases1
Number of output phases1
Output frequency50/60Hz
Output operation voltage (max)230V
Output operation voltage (min)230V
Output power1120W
Output power capacity1.6kVA
Output voltage regulation5%
Power factor0.7
Response time2ms
UPS topologyLine-Interactive
WaveformSine
AC outlet typesType F
AC outlets quantity2AC outlet(s)
USB 2.0 ports quantity1
USB portYes
USB port typeUSB Type-B
Battery technologySealed Lead Acid (VRLA)
Typical backup time at full load10min
Form factorCompact
International Protection (IP) codeIP20
LED indicatorsYes
Product colourBlack
Operating altitude0 – 300m
Operating relative humidity (H-H)0 – 95%
Operating temperature (T-T)0 – 55°C
CertificationCE
Depth279mm
Height142mm
Weight5000g
Width101mm
Package depth340mm
Package height220mm
Package width180mm
Units per Shipping Box1
Unit Calculated Volume0.01346cubm
Unit Calculated Weight5.35kg
SKU: TECNOWARE-FGCERAPL1602SCH Category:

Based on 1 review

0.0 overall
1
0
0
0
0

Only logged in customers who have purchased this product may leave a review.

  1. Sarah Jenkins –

    I picked up this Tecnoware UPS from apsardze24.lv to protect my home office equipment. It runs totally silent, which is a huge plus. The 1120W capacity is plenty for my desktop and router. Delivery was surprisingly fast, and the unit was easy to set up right out of the box.

    Sarah Jenkins –

How long will the UPS power my devices during a blackout?

Runtime depends on the load connected to the 12V 11Ah battery. A standard office PC and monitor (~150W) will last approximately 15-20 minutes. The 1120W capacity refers to peak power handling, not continuous runtime duration.

Will the UPS turn back on automatically after a power outage?

Yes, the device supports auto-restart. If the battery drains completely during a blackout, the UPS will automatically power on and begin recharging once mains electricity is restored.

Is the Era Plus 1600 compatible with Gaming PCs or Macs with Active PFC?

No, this model uses a modified sine wave and is not suitable for power supplies with Active PFC circuits (common in gaming PCs, Macs, and servers). It is designed for standard office PCs, DVRs, and modems.

Does this UPS stabilize voltage fluctuations without using the battery?

Yes, it features Automatic Voltage Regulation (AVR). This stabilizes input voltage ranging from 172.5V to 276V, protecting your equipment from surges and drops without depleting battery life.

How many output sockets does this model have?

The Tecnoware Era Plus 1600 is equipped with 2 Schuko (Type F) outlets. Both outlets provide full battery backup and surge protection for your connected devices.

How do I monitor battery status and configure auto-shutdown?

You can connect the UPS to your computer using the integrated USB port. The free TecnoManager software (compatible with Windows, Mac, and Linux) allows you to monitor status and program safe shutdowns.

Does the FGCERAPL1602SCH generate noise during operation?

The unit is designed to be totally silent during normal mains operation. It emits a noise level of approximately 40dB (fan and alarm) only when it switches to battery mode during a power cut.

What warranty and support is included with this UPS?

Apsardze24.lv provides a comprehensive 2-Year Warranty. Our service center is based in Riga, ensuring quick local support and fast shipping to Latvia, Estonia, and Lithuania.
