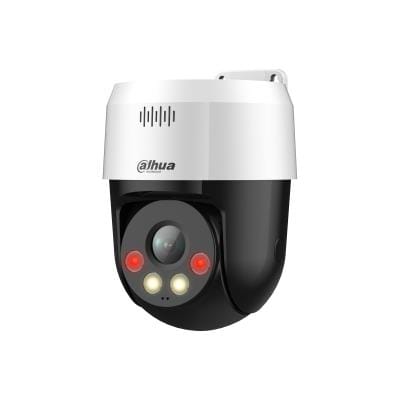

SDT2A200-2F-NB-A-PV Dahua 2+2MP Smart Dual Light Active Deterrence PT Wi-Fi Camera

  • Resolution: 4MP Total (2MP Fixed + 2MP PT) @ 25fps
  • Lens & View: Dual-Lens Panoramic & Detail View
  • Night Vision: Smart Dual Light (IR + White Light) up to 30m
  • Security: Active Deterrence (Siren + Light) & Human Detection
  • Fast shipping to Latvia, as well as Estonia and Lithuania. 2-Year Warranty for all clients (Business & Private).

Dahua

73,35€
€60.62 (bez PVN)

Dome | Ceiling/wall | Black/White | IP code IP66 | IP security camera | Wired | Placement Indoor & outdoor | PTZ control Yes | Wide Dynamic Range (WDR) Yes | Day/night mode Yes | Built-in light Yes | Pan range 0 – 345 ° | White balance Auto/Manual/Outdoor/ATW/Indoor | Camera shutter type Electronic | Optical sensor size 1/2.8 ” | Sensor type CMOS | Identify distance 7.74 m | Night vision Yes | Night vision distance 30 m | Total megapixels 5 MP | Frame rate 30 fps | Noise reduction Yes | Ethernet LAN Yes | Wi-Fi Yes | Card reader integrated Yes | Power source type DC | Weight 500 g | 1xNumber of cameras

The Active Defense series of small PT cameras raises the bar on performance. After detecting an intrusion, it triggers sound and light alarms, and then instantly relays vital information on the intrusion to the mobile client, keeping you informed no matter where you are. It supports two-way talk, allowing you to communicate with people in front of the camera in real time. It also records videos in full color, and uses Smart Dual Light to help produce vivid images, making it easy to obtain information on events, and reduce light pollution.

  • · 1/2.8″ 5Megapixel STARVIS™ CMOS
  • · Max. 20 fps@5MP
  • · Human detection
  • · Tripwire, intrusion
  • · H.265 encoding
  • · Wi-Fi
  • · Two-way audio
  • · Sound and light alarm
  • · IR and white light, three night view modes
  • · IP66
SummaryDahua Technology Lite DH-SD2A500HB-GN-AW-PV-S2. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Lens viewing angle, horizontal: 80.4°, Lens viewing angle, vertical: 58.1°, Lens viewing angle, diagonal: 104.8°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8″). Detect distance: 77.4 m, Observe distance: 31 m, Recognize distance: 15.5 m
Unit Box Height0.235
Unit Box Length0.185
Unit Box Width0.135
Form factorDome
International Protection (IP) codeIP66
Mounting typeCeiling/wall
Product colourBlack/White
Built-in lightYes
CertificationCE: EN55032/EN50130-4/EN IEC61000-3-3/EN IEC61000-3-2/EN55024/EN55035/EN62368-1
FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014
Connectivity technologyWired
Day/night modeYes
Placement supportedIndoor & outdoor
Preset pointsYes
PTZ controlYes
PTZ modesPreset sequence
TypeIP security camera
Wide Dynamic Range (WDR)Yes
Camera pan controlYes
Camera shutter speed1/3 – 1/100000s
Camera shutter typeElectronic
Camera tilt controlYes
Lens viewing angle, diagonal104.8°
Lens viewing angle, horizontal80.4°
Lens viewing angle, vertical58.1°
Minimum illumination0lx
Pan preset speed62°/sec
Pan range0 – 345°
Tilt angle range0 – 80°
Tilt preset speed36.3°/sec
Tilt speed36.4°/sec
White balanceATW/Auto/Indoor/Manual/Outdoor
Optical sensor size1/2.8″
Progressive scanYes
Sensor typeCMOS
Closest focusing distance0.3m
Detect distance77.4m
Fixed focal length4mm
Identify distance7.74m
Maximum aperture number1.6
Observe distance31m
Recognize distance15.5m
LED typeIR
Night visionYes
Night vision distance30m
Back Light Compensation (BLC)Yes
Bit rate32 Kbps-8192 Kbps
Bit rate controlConstant Bit Rate (CBR),Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Frame rate30fps
Gain control typeAuto/Manual
Highlight Compensation (HLC)Yes
Maximum resolution2560 x 1920pixels
Noise reductionYes
Noise reduction technology2D noise reduction,3D noise reduction
Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2560 x 1440/2560 x 1920/352 x 240/352 x 288/704 x 480/704 x 576
Supported video modes1080p/720p
Total megapixels5MP
Video compression formatsH.264/H.264+/H.264B/H.265/H.265+/M-JPEG
Video streamingYes
Audio formats supportedG.711/G.726
Audio input channels1.0channels
Audio output channels1.0channels
Built-in speaker(s)Yes
Signal-to-Noise Ratio (SNR)55dB
BluetoothNo
Ethernet interface typeFast Ethernet
Ethernet LANYes
Number of users20user(s)
Streaming methodMulticast/Unicast
Supported network protocolsUDP;FTP;RTMP;IPv6;IPv4;IP Filter;DNS;RTCP;HTTP;NTP;SS L;DHCP;RTP;SMTP;HTTPS;TCP/IP;RTSP;DDNS;ARP
Wi-FiYes
Wi-Fi standards802.11b/802.11g/Wi-Fi 4 (802.11n)
Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Internal memory128MB
Maximum memory card size512GB
ROM capacity128MB
Ethernet LAN (RJ-45) ports1
Management softwareSmart PSS; DMSS; player; configtool; NVR; Smart Player
DC output current1.5A
DC output voltage12
Power consumption (max)11W
Power consumption (typical)3.5W
Power source typeDC
Operating relative humidity (H-H)0 – 95%
Operating temperature (T-T)-30 – 55°C
Mobile operating systems supportedAndroid/iOS/Windows Mobile
Diameter111mm
Height140.5mm
Weight500g
Package weight1000g
Number of cameras1
ModelSDT2A200-2F-NB-A-PV
Units per Shipping Box1
Unit Calculated Volume0.005869cubm
Unit Calculated Weight1kg
SKU: DAHUA-SDT2A200-2F-NB-A-PV Category:

Based on 0 reviews

0.0 overall
0
0
0
0
0

Only logged in customers who have purchased this product may leave a review.

There are no reviews yet.

How many days of footage can I store on the SDT2A200-2F-NB-A-PV using a MicroSD card?

Thanks to the efficient H.265 video compression used by this camera, a **256GB MicroSD card** can typically store approximately **10 to 14 days** of footage if configured to record only when motion is detected. The device supports card capacities up to 512GB if you require a longer retention period.

What happens if my camera stops working after the first year?

We provide a comprehensive **2-Year Warranty** for all clients (both private and business). Our service center is located locally in **Riga**, ensuring that any potential warranty repairs or diagnostics are handled quickly without the need to ship the unit abroad.

What mobile app should I download to control the SDT2A200-2F-NB-A-PV camera remotely?

You should download the **DMSS** app, which is available for free on both iOS and Android devices. This app allows you to view live video, control the Pan/Tilt rotation, manage the active deterrence alarms, and receive instant security alerts directly on your smartphone.

Who can I contact if I have trouble configuring the network settings?

If you encounter specific installation errors or require advanced configuration assistance that is not covered in the user manual, please direct your technical queries to our support team at **[email protected]**.

How does the dual-lens system work on this Dahua Active Deterrence camera?

This model features a smart 'Panoramic + Detail' design. It utilizes a fixed lens to provide a constant wide-angle overview of the area, while the second PT (Pan/Tilt) lens can rotate and track active targets. This ensures you capture the full context of an event while simultaneously tracking intruders.

Does the SDT2A200-2F-NB-A-PV run on batteries since it is listed as a Wi-Fi camera?

No, this camera requires a continuous power connection via a 12V DC power adapter (wired power). The term 'Wi-Fi' refers to its ability to transmit video data wirelessly to your router, eliminating the need for an Ethernet cable, but it is not battery-operated.

Is the SDT2A200-2F-NB-A-PV sold as the official EU version or a grey import?

We sell only the **Official EU Version** of this product. This ensures full compatibility with European networks, English firmware updates, and strict GDPR compliance. As an Authorized Partner, Apsardze24.lv guarantees that you are not buying a region-locked device.
