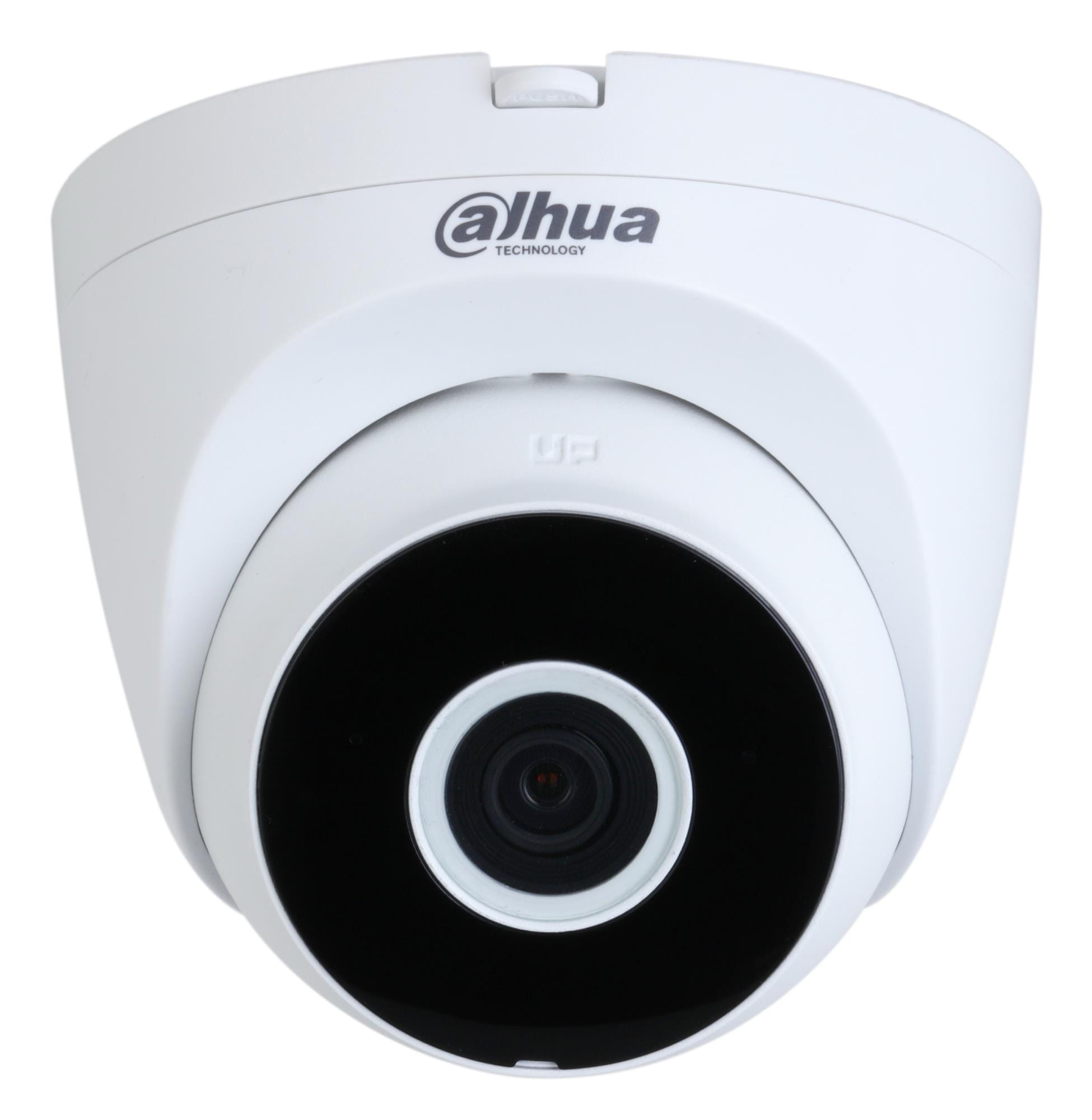

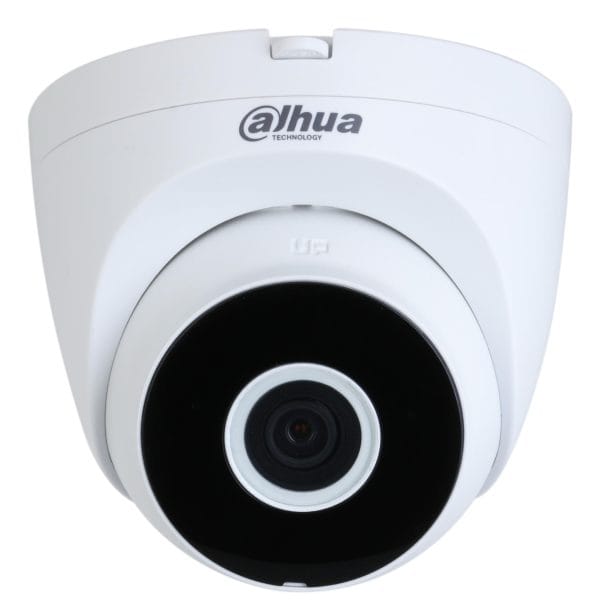

IPC-HDW1430DT-SAW-0280B 2.8mm Dahua 4MP IR Wi-Fi Eyeball Camera

  • Resolution: 4MP (2560 × 1440) High Definition
  • Lens: 2.8mm Wide Angle (Approx 90° View)
  • Night Vision: Smart IR up to 30m
  • Connectivity: 2.4G Wi-Fi & Built-in Mic
  • Fast shipping to Latvia, as well as Estonia and Lithuania. 2-Year Warranty for all clients (Business & Private).

Dahua

80,69€
€66.69 (bez PVN)

Dome | Ceiling/Wall/Pole | White | IP code IP67 | IP security camera | Wired & Wireless | Placement Indoor | Wide Dynamic Range (WDR) Yes | Day/night mode Yes | Minimum illumination 0.003 lx | Pan range 0 – 360 ° | White balance Auto/Manual/Natural/Outdoor/Regional custom/Street lamp | Optical sensor size 1/3 ” | Sensor type CMOS | Fixed focus Yes | Identify distance 6.8 m | Night vision Yes | Night vision distance 30 m | Total megapixels 4 MP | Frame rate 30 fps | Noise reduction Yes | Built-in microphone Yes | Ethernet LAN Yes | Wi-Fi Yes | Card reader integrated Yes | Power source type DC | Weight 316.9 g | 1xNumber of cameras

  • 4-MP 1/3″ CMOS image sensor, low luminance, and high definition image
  • Outputs max. 4 MP (2560 × 1440)@20 fps, and max. supports 3 MP (2304 × 1296)@25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in IR LED
  • SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes
  • Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and SMD (human)
  • The antenna offers 2.4G Wi-Fi with a range of 120 m
  • Supports max. 256 G Micro SD card.Built-in MIC
  • 12 VDC power supply
SummaryDahua Technology IPC-HDW1430DT-SAW-0280B. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.003 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3″). Detect distance: 68 m, Observe distance: 27.2 m, Recognize distance: 13.6 m
Unit Box Height0.11
Unit Box Length0.14
Unit Box Width0.125
Form factorDome
Housing materialMetal/Plastic
International Protection (IP) codeIP67
Mounting typeCeiling/Wall/Pole
Product colourWhite
Connectivity technologyWired & Wireless
Day/night modeYes
Placement supportedIndoor
TypeIP security camera
Wide Dynamic Range (WDR)Yes
Angle of rotation360°
Camera pan controlYes
Camera shutter speed1/3 – 1/100000s
Camera tilt controlYes
Lens viewing angle, diagonal107°
Lens viewing angle, horizontal90°
Lens viewing angle, vertical50°
Minimum illumination0.003lx
Pan range0 – 360°
Tilt angle range0 – 78°
White balanceAuto/Manual/Natural/Outdoor/Regional custom/Street lamp
Number of sensors1
Optical sensor size1/3″
Progressive scanYes
Sensor typeCMOS
Closest focusing distance1m
Detect distance68m
Fixed focal length2.8mm
Fixed focusYes
Identify distance6.8m
Maximum aperture number2
Observe distance27.2m
Recognize distance13.6m
LED typeIR
Night visionYes
Night vision distance30m
Number of illumination LEDs1
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Frame rate30fps
Gain control typeAuto
Maximum resolution2560 x 1440pixels
Noise reductionYes
Noise reduction technology3D noise reduction
Total megapixels4MP
Video compression formatsH.264/H.264B/H.264H/H.265
Video recordingYes
Video streamingYes
Built-in microphoneYes
BluetoothNo
Ethernet interface typeFast Ethernet
Ethernet LANYes
Networking standardsIEEE 802.1x
Streaming methodMulticast
Supported network protocolsIPv4, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, DHCP, DNS, NTP, RTMP
Wi-FiYes
Wi-Fi standards802.11b/802.11g/Wi-Fi 4 (802.11n)
Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256GB
RAM capacity64MB
ROM capacity16MB
DC-in jackYes
Ethernet LAN (RJ-45) ports1
IP address filteringYes
MirrorYes
Video motion detectionYes
DC output voltage12
Power consumption (max)4.2W
Power consumption (typical)2W
Power source typeDC
Operating temperature (T-T)-30 – 60°C
Storage temperature (T-T)-30 – 60°C
Mobile operating systems supportedAndroid/iOS
Diameter109.9mm
Height102.2mm
Weight316.9g
Compliance certificatesCE/Federal Communications Commission (FCC)
Package weight463g
ManualYes
Number of cameras1
ModelIPC-HDW1430DT-SAW-0280B
Units per Shipping Box1
Unit Calculated Volume0.001925cubm
Unit Calculated Weight0.473kg
SKU: DAHUA-IPC-HDW1430DT-SAW-0280B Category:

Based on 1 review

0.0 overall
1
0
0
0
0

Only logged in customers who have purchased this product may leave a review.

  1. Mark Thompson –

    I bought this Dahua camera for my home office and I’m really impressed. The 4MP video quality is crisp, even at night. Setting up the Wi-Fi connection was surprisingly easy. Quick delivery from apsardze24.lv as well. Definitely feel safer now. Highly recommended!

    Mark Thompson –

Does the IPC-HDW1430DT-SAW-0280B support two-way audio talk?

No, this specific model has a **built-in microphone** for recording audio from the environment, but it does not have a speaker. You can hear what is happening, but you cannot talk back through the camera.

Can I install this camera outside where it might get wet?

Yes, the camera is rated **IP67**, which means it is fully dust-tight and protected against the effects of immersion in water. It is suitable for outdoor use in rain and snow, with an operating temperature range of -30°C to +60°C.

Which mobile app is compatible with the IPC-HDW1430DT-SAW-0280B?

To view live video, play back recordings, and receive push notifications on your phone, you should download the **DMSS** app. It is free and available for both iOS and Android devices.

How far is the Wi-Fi range for this camera?

The antenna supports 2.4GHz Wi-Fi with a theoretical range of up to 120m in an open field. However, in a real-world home environment with walls and interference, the reliable range is typically much shorter. Ensure your router or extender is reasonably close for a stable 4MP video stream.

Is the IPC-HDW1430DT-SAW-0280B suitable for reading license plates?

Not specifically. This model has a **2.8mm wide-angle lens** (approx. 90° view), which is designed for a broad overview of a yard or room. To read license plates clearly, the target must be very close (within 6-7 meters). For longer distances, a camera with a narrower, zoomed lens is required.

Is this camera the official EU version or a Chinese region model?

We sell only the **Official EU version**. This ensures you receive full firmware update capabilities, English menus, and no region-locking issues. Apsardze24.lv is an authorized partner guaranteeing genuine hardware.

How many days of recording can the IPC-HDW1430DT-SAW-0280B store on a 256GB card?

This camera supports MicroSD cards up to 256GB. Thanks to efficient H.265 video compression, a 256GB card can store approximately **14 to 20 days** of continuous recording at 4MP. Setting the camera to record only on 'Motion Detection' will extend this period significantly.

Can I connect this camera to a third-party NVR or software?

Yes, the camera supports standard protocols like ONVIF and RTSP. However, seamless integration depends on your specific hardware. If you are unsure about compatibility with your existing system, please contact our technical support at [email protected].

What happens if I encounter technical issues after the purchase?

We provide a comprehensive **2-Year Warranty** for both private and business clients. Our service center is located locally in **Riga**, allowing for fast diagnostics and repairs without the need to ship the unit abroad.

Does the IPC-HDW1430DT-SAW-0280B require a power cable, or is it battery-operated?

While it connects to the internet via Wi-Fi, this camera **does require a power cable** (12V DC) to operate. It is not battery-powered. You will need to plug it into a standard power outlet or use a 12V power supply.
