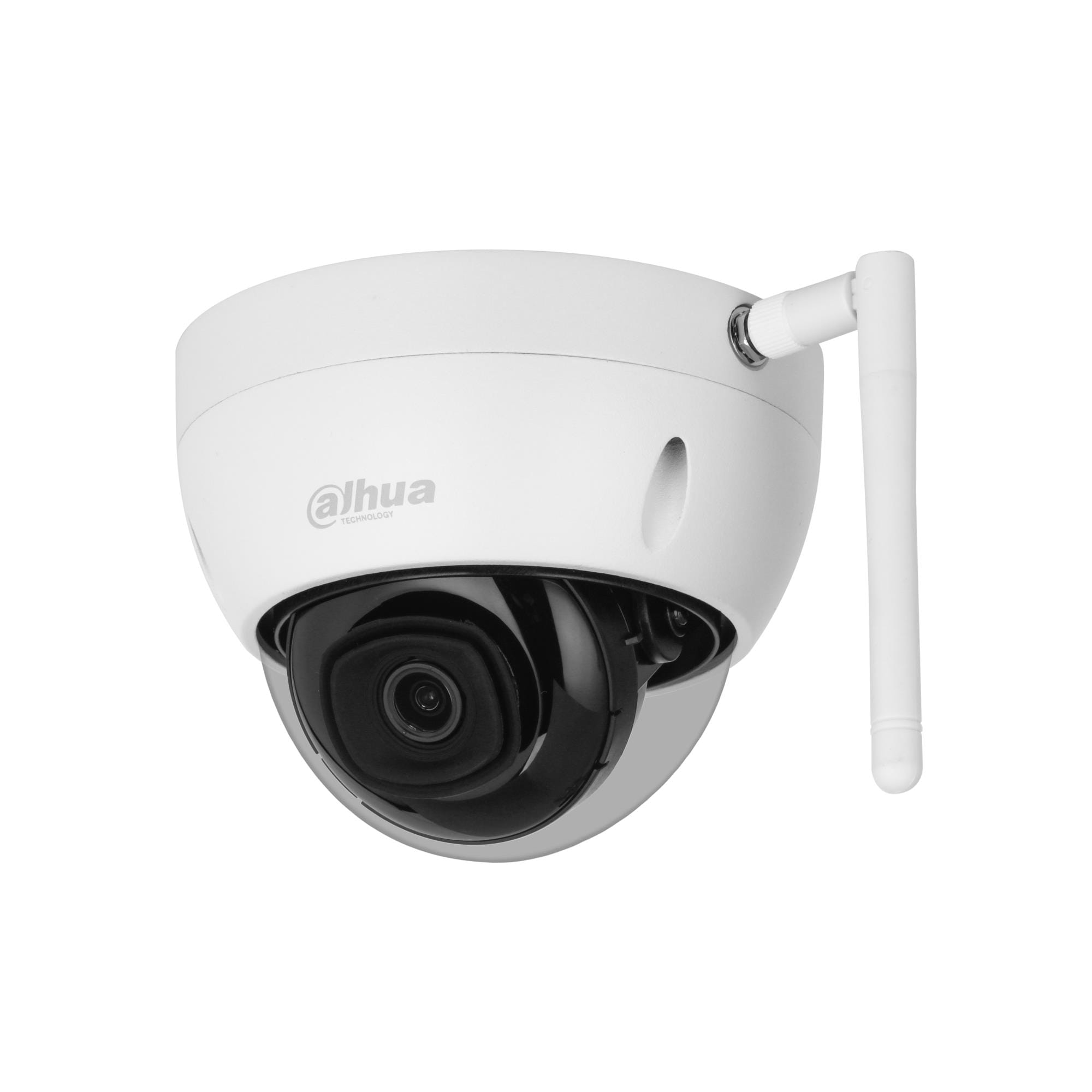

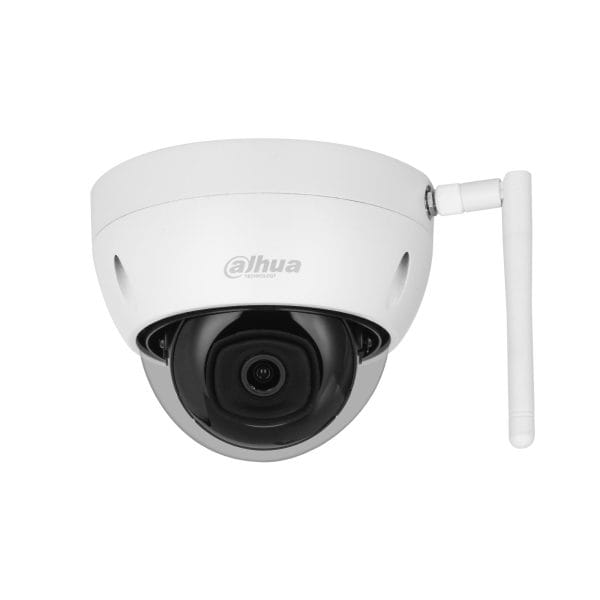

IPC-HDBW1430DE-SW-0280B White 2.8mm Dahua 4MP Wi-Fi IR Vandal-proof Dome Camera

  • Resolution: 4MP (2560 × 1440) for high-definition detail.
  • Lens & View: 2.8mm Fixed Lens offering a Wide Angle view suitable for full room coverage.
  • Connectivity: Wi-Fi (IEEE802.11b/g/n) & Wired Ethernet options.
  • Protection: IP67 Weatherproof & IK10 Vandal-proof housing.
  • Fast shipping to Latvia, as well as Estonia and Lithuania. 2-Year Warranty for all clients (Business & Private).

Dahua

76,69€
€63.38 (bez PVN)

Dome | Ceiling | White | IP code IP67 | IP security camera | Wired & Wireless | Placement Indoor & outdoor | Wide Dynamic Range (WDR) Yes | Day/night mode Yes | Pan range 0 – 355 ° | Camera shutter type Electronic | Optical sensor size 1/3 ” | Sensor type CMOS | 1xNumber of lenses | Identify distance 6.8 m | Night vision Yes | Night vision distance 30 m | Total megapixels 4 MP | Frame rate 30 fps | Noise reduction Yes | Ethernet LAN Yes | Wi-Fi Yes | Card reader integrated Yes | Power source type DC,PoE | Weight 414 g | 1xNumber of cameras

  • 4-MP 1/3″ CMOS image sensor, low luminance, and high definition image
  • Outputs max. 4 MP (2560 × 1440)@20 fps, and max. supports 3 MP (2304 × 1296)@25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in IR LED
  • SMART H.264 +/H.265+, flexible coding, applicable to various band width and storage environments
  • DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes
  • Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, SMD (human)
  • Supports single antenna 2.4G Wi-Fi that covers a range of up to 80 m in an open area
  • Supports max. 256 G Micro SD card
  • 12 VDC power supply
  • IP67, IK10 protection
SummaryDahua Technology Mobile Camera DH-IPC-HDBW1430DE-SW. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Angle of rotation: 355°, Lens viewing angle, horizontal: 90°, Tilt angle range: 0 – 75°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3″). Detect distance: 68 m, Observe distance: 27.2 m, Recognize distance: 13.6 m
Unit Box Height0.145
Unit Box Length0.14
Unit Box Width0.125
Form factorDome
Housing materialMetal
IK codeIK10
International Protection (IP) codeIP67
Mounting typeCeiling
Product colourWhite
Antenna typeExternal
Antennas quantity1
CertificationCE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
FCC ID: FCC PART 15C
Connectivity technologyWired & Wireless
Day/night modeYes
Placement supportedIndoor & outdoor
Remote viewingYes
TypeIP security camera
Wide Dynamic Range (WDR)Yes
Adjustment shutter speedAuto/Manual
Angle of rotation355°
Camera shutter speed1/3 – 1/100000s
Camera shutter typeElectronic
Lens viewing angle, horizontal90°
Pan range0 – 355°
Tilt angle range0 – 75°
Digital Wide Dynamic Range (DWDR) (panoramic camera)Yes
Number of sensors1
Optical sensor size1/3″
Progressive scanYes
Sensor typeCMOS
Auto focusYes
Detect distance68m
Fixed focal length (thermal module)2.8mm
Identify distance6.8m
Maximum aperture number2
Number of lenses1
Observe distance27.2m
Recognize distance13.6m
LED typeIR
Night visionYes
Night vision distance30m
Number of illumination LEDs3
Back Light Compensation (BLC)Yes
Bit rate3 Kbps – 20480 Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Frame rate30fps
Highlight Compensation (HLC)Yes
Maximum resolution2560 x 1440pixels
Noise reductionYes
Noise reduction technology3D noise reduction
Smart IRYes
Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440
Supported video modes1080p/720p
Total megapixels4MP
Video compression formatsH.264+/H.264H/H.265+
Video formats supportedH.264/H.264B/H.265
Video intelligence analyticYes
Video recordingYes
Video streamingYes
Audio codecsG.711a; G.711Mu; PCM; G.726; G.723
Audio system1-way
Audio system full duplexYes
BluetoothNo
Ethernet interface typeFast Ethernet
Ethernet LANYes
Number of users6user(s)
Wi-FiYes
Wi-Fi standards802.11b/802.11g/Wi-Fi 4 (802.11n)
Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Internal memory64MB
Maximum memory card size256GB
ROM capacity16MB
Ethernet LAN (RJ-45) ports1
Detection distance80m
Intelligent Video Surveillance (IVS) system featuresIntrusion
MirrorYes
Web browserYes
DC output voltage12
Power source typeDC,PoE
Operating relative humidity (H-H)0 – 95%
Operating temperature (T-T)-40 – 60°C
Storage temperature (T-T)-40 – 60°C
Mobile operating systems supportedAndroid/iOS
Diameter110.7mm
Height88.7mm
Weight414g
Package weight592g
Number of cameras1
Units per Shipping Box1
Unit Calculated Volume0.002537cubm
Unit Calculated Weight0.639kg
SKU: DAHUA-IPC-HDBW1430DE-SW-0280B Category:

Based on 1 review

0.0 overall
1
0
0
0
0

Only logged in customers who have purchased this product may leave a review.

  1. James Cooper –

    I am very pleased with this Dahua camera. The 4MP resolution is sharp, and the Wi-Fi setup was straightforward. It feels incredibly durable thanks to the metal housing. Great service from apsardze24.lv—the delivery was fast and the product arrived in perfect condition. Definitely worth the investment!

    James Cooper –

Is this IPC-HDBW1430DE-SW-0280B the official EU version or a grey market import?

We stock only the **Official EU Version** of this device. This ensures there are no region locks, firmware updates are fully supported, and the product complies with all European safety standards. As an Authorized Partner, Apsardze24.lv guarantees the authenticity of your equipment.

Does the IPC-HDBW1430DE-SW-0280B support recording to a third-party NAS or NVR?

Yes, this camera supports standard protocols like ONVIF, making it compatible with most network video recorders and NAS systems. However, for verification of specific hardware compatibility or complex network setups, please contact our technical team at **[email protected]**.

Does this Wi-Fi dome camera require a power cable, or is it battery operated?

This model is **not battery-operated**. While it connects to your network wirelessly via Wi-Fi (up to 80m range in open areas), it requires a constant power source. You must power it using a 12V DC adapter or via a wired Ethernet connection if you have a PoE (Power over Ethernet) switch.

What kind of warranty is provided if the camera stops working?

We provide a comprehensive **2-Year Warranty** for all clients (both Business and Private). In the unlikely event of a fault, our service center is located locally in **Riga**, ensuring that repairs or replacements are handled quickly without the need to ship the unit abroad.

Which mobile app is compatible with the IPC-HDBW1430DE-SW-0280B?

To manage this camera on your phone, download the **DMSS app** (available for both iOS and Android). This official application allows you to view live video, play back recorded footage, and receive push notifications directly to your device.

Is the 2.8mm lens on this camera suitable for reading license plates?

Generally, no. The **2.8mm fixed lens** offers a wide 90° horizontal viewing angle, which is excellent for covering large areas like full rooms, driveways, or parking lots. However, it lacks the optical zoom required to clearly identify license plates at a distance; for that, a camera with a varifocal lens would be better.

How many days of footage can I store on the IPC-HDBW1430DE-SW-0280B using a 256GB SD card?

Thanks to the efficient **H.265+ video compression**, a 256GB MicroSD card can typically store approximately **10 to 14 days** of continuous recording at full 4MP resolution. If you switch to motion-detection recording only, this duration can extend to several weeks.
