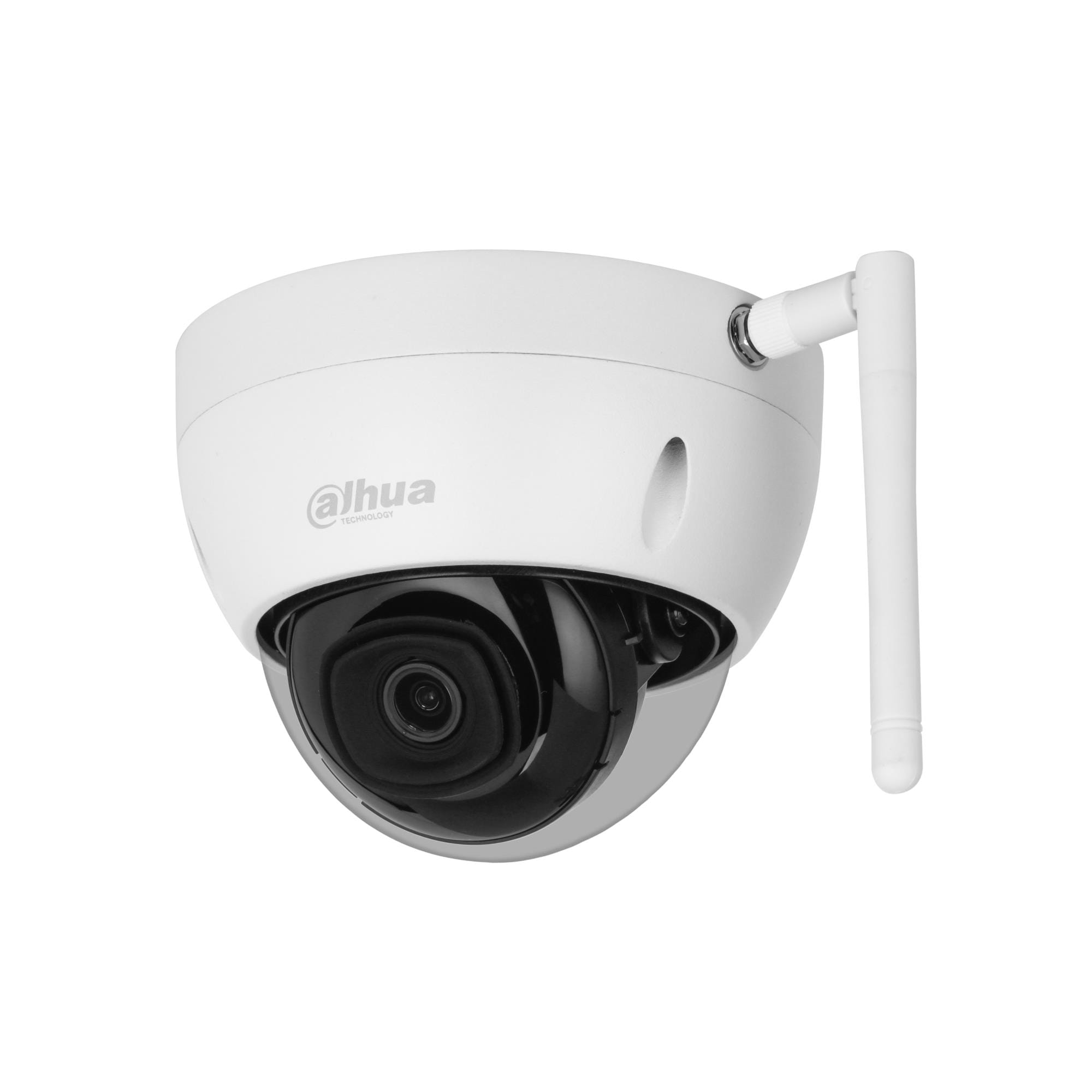

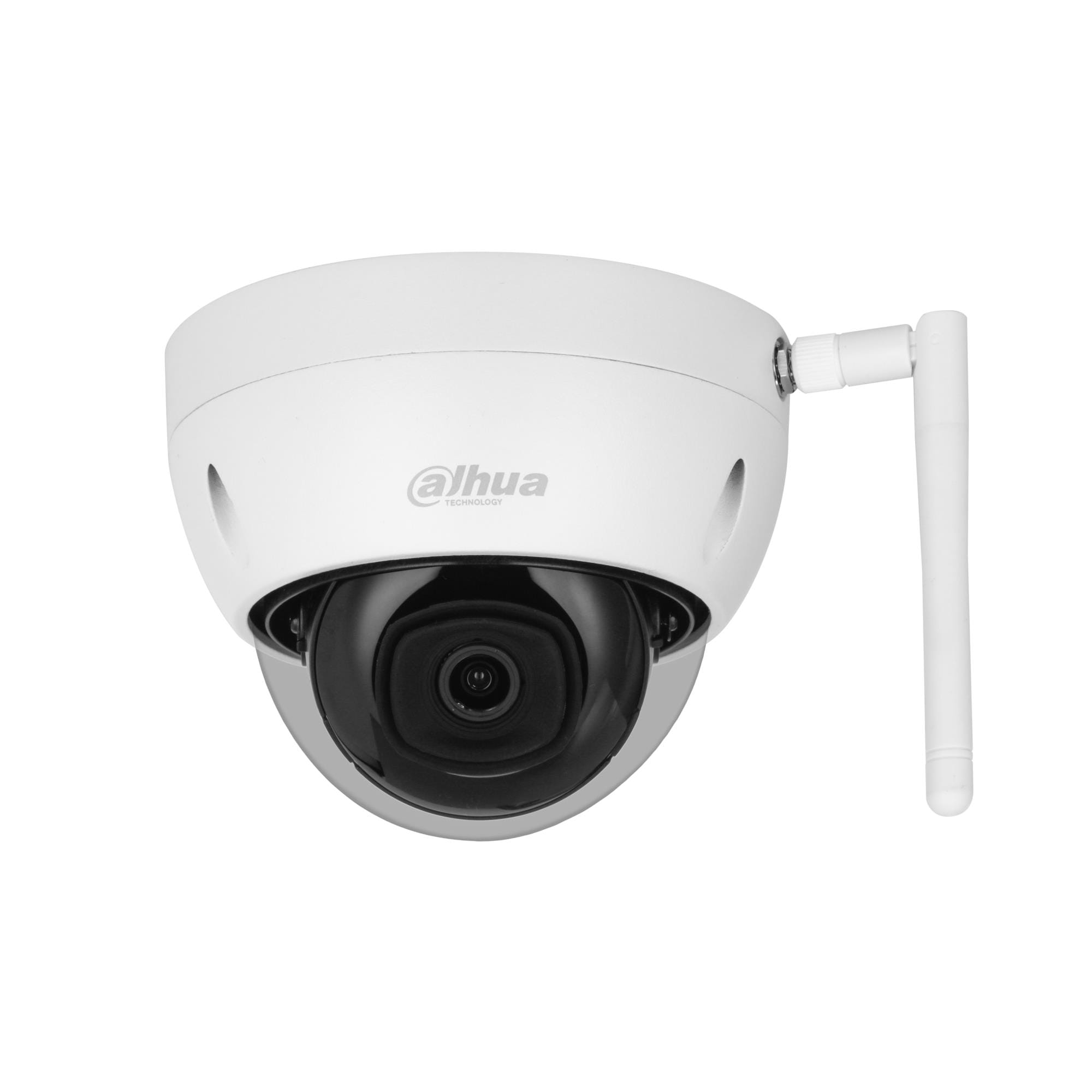

IPC-HDBW1230DE-SW-0280B 2.8mm Dahua 2MP Wi-Fi IR Vandal-proof Dome Camera

  • High Definition: 2MP (1920 × 1080) @ 30 fps resolution.
  • Wide Coverage: 2.8mm Fixed Lens with 120° Field of View.
  • Connectivity: 2.4G Wi-Fi (up to 80m) & Ethernet Port.
  • Protection: IP67 Weatherproof & IK10 Vandal-resistant.
  • Fast shipping to Latvia, as well as Estonia and Lithuania. 2-Year Warranty for all clients (Business & Private).

Dahua

65,99€
€54.54 (bez PVN)

Dome | Ceiling | White | IP code IP67 | IP security camera | Wired & Wireless | Placement Outdoor | Wide Dynamic Range (WDR) Yes | Minimum illumination 0.0025 lx | FOV angle 120 ° | Pan range 0 – 355 ° | White balance Manual/Natural/Outdoor/Street lamp/Custom modes | Camera shutter type Electronic | Optical sensor size 1/2.8 ” | Sensor type CMOS | 1xNumber of lenses | Fixed focus Yes | Identify distance 4.7 m | Night vision Yes | Total megapixels 2 MP | Frame rate 30 fps | Noise reduction Yes | Ethernet LAN Yes | Wi-Fi Yes | Card reader integrated Yes | Power source type DC | Weight 414 g | 1xNumber of cameras

> 2-MP 1/3″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 2 MP (1920 × 1080)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED.
> SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes.
> Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, SMD (human).
> Supports single antenna 2.4G Wi-Fi that covers a range of up to 80 m in an open area.
> Supports max. 256 G Micro SD card.
> 12 VDC power supply.
> IP67, IK10 protection.

SummaryDahua Technology Consumer DH-IPC-HDBW1230DEP-SW-0280B. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.0025 lx, Field of view (FOV) angle: 120°, Angle of rotation: 355°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8″). Detect distance: 46.9 m, Observe distance: 18.8 m, Recognize distance: 9.4 m
Unit Box Height0.145
Unit Box Length0.15
Unit Box Width0.125
Form factorDome
Housing materialMetal
IK codeIK10
International Protection (IP) codeIP67
Mounting typeCeiling
Product colourWhite
Antenna typeExternal
Antennas quantity1
Connectivity technologyWired & Wireless
Dynamic range56dB
Luminous flux0.0025lm
Placement supportedOutdoor
TypeIP security camera
Wide Dynamic Range (WDR)Yes
Adjustment shutter speedAuto/Manual
Angle of rotation355°
Camera pan controlYes
Camera shutter speed1/3 s-1/100,000 ss
Camera shutter typeElectronic
Camera tilt controlYes
Field of view (FOV) angle120°
Lens viewing angle, diagonal120°
Lens viewing angle, horizontal100°
Lens viewing angle, vertical53°
Minimum illumination0.0025lx
Pan range0 – 355°
Tilt angle range0 – 75°
White balanceCustom modes/Manual/Natural/Outdoor/Street lamp
Number of sensors1
Optical sensor size1/2.8″
Progressive scanYes
Sensor typeCMOS
Detect distance46.9m
Fixed focusYes
Focal length range2.8mm
Identify distance4.7m
Lens diameter2.8mm
Maximum aperture number2
Number of lenses1
Observe distance18.8m
Recognize distance9.4m
Zoom capabilityNo
LED typeIR
Night visionYes
Number of illumination LEDs3
Back Light Compensation (BLC)Yes
Bit rate9 – 4096
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Flip & mirrorYes
Frame rate30fps
Gain control typeAuto
Maximum resolution1920 x 1080pixels
Noise reductionYes
Noise reduction technology3D noise reduction
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes
Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)
Supported video modes1080p/720p/960p
Total megapixels2MP
Video compression formatsH.264/H.264B/H.264H/H.265
Video formats supportedH.264/H.264B/H.265
Video recordingYes
Video streamingYes
Signal-to-Noise Ratio (SNR)56dB
BluetoothNo
Channel bandwidth36MHz
Ethernet interface typeFast Ethernet
Ethernet LANYes
Live viewYes
Number of users6user(s)
Supported network protocolsIPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP
Wi-FiYes
Wi-Fi data rate (max)2400Mbit/s
Wi-Fi standards802.11b/802.11g/Wi-Fi 4 (802.11n)
Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Flash memory64MB
Maximum memory card size256GB
ROM capacity16MB
Ethernet LAN (RJ-45) ports1
HTTPS encryptionYes
Motion sensorYes
Security algorithmsHTTPS
Video motion detectionYes
Firmware upgradeableYes
Management softwareSmart PSS; DSS; DMSS
Smartphone/tablet remote supportYes
Web browserYes
Web-based managementYes
DC output voltage12
Power consumption (max)4.9W
Power consumption (typical)2W
Power source typeDC
Operating relative humidity (H-H)0 – 95%
Operating temperature (T-T)-40 – 60°C
Storage temperature (T-T)-30 – 60°C
Mobile operating systems supportedAndroid/iOS
Diameter110.7mm
Height88.7mm
Weight414g
Compliance certificatesCE/Federal Communications Commission (FCC)
Package weight592g
Number of cameras1
ModelIPC-HDBW1230DE-SW-0280B
Units per Shipping Box1
Unit Calculated Volume0.002719cubm
Unit Calculated Weight0.646kg
SKU: DAHUA-IPC-HDBW1230DE-SW-0280B Category:

Based on 0 reviews

0.0 overall
0
0
0
0
0

Only logged in customers who have purchased this product may leave a review.

There are no reviews yet.

How many days of recording can I store on the IPC-HDBW1230DE-SW-0280B?

Using the camera's efficient H.265+ compression, a 256GB MicroSD card can store approximately 10 to 14 days of continuous footage. If you configure the camera to record only when motion is detected, the storage duration can extend to several weeks.

Can I install this Dahua dome camera in an area prone to vandalism?

Yes, this camera is rated **IK10**, which is the highest level of vandal resistance, protecting it against significant physical impacts. It is also IP67 weatherproof, making it suitable for tough outdoor environments. If you have specific installation concerns, please contact our technical support at [email protected].

Is this the official EU version or a Chinese import?

This is the **Official EU version**. It supports all official firmware updates and has no region locking. As an Authorized Partner, Apsardze24.lv ensures you receive genuine equipment that complies with local standards.

Does the IPC-HDBW1230DE-SW-0280B require a power cable if it connects via Wi-Fi?

Yes, although the camera connects to your network wirelessly (Wi-Fi), it is not battery-operated. It requires a wired connection to a 12V DC power source to function. This ensures reliable 24/7 operation without the need to recharge batteries.

Which mobile app do I need to view the IPC-HDBW1230DE-SW-0280B on my phone?

You should download the **DMSS** app, which is compatible with both iOS and Android devices. This app allows you to view live video, play back recordings, and receive motion alerts. For PC monitoring, you can use the Smart PSS software.

What happens if the camera stops working after one year?

We provide a comprehensive **2-Year Warranty** for both business and private clients. Our service center is located in **Riga**, ensuring that warranty repairs and diagnostics are handled locally and quickly without shipping the unit to another country.

Is this camera capable of reading license plates clearly?

No, this model features a 2.8mm fixed lens with a wide 120° field of view. It is designed for general area surveillance (wide coverage) rather than capturing small details like license plates at a distance. For plate reading, a camera with a narrower viewing angle (zoom) is required.
