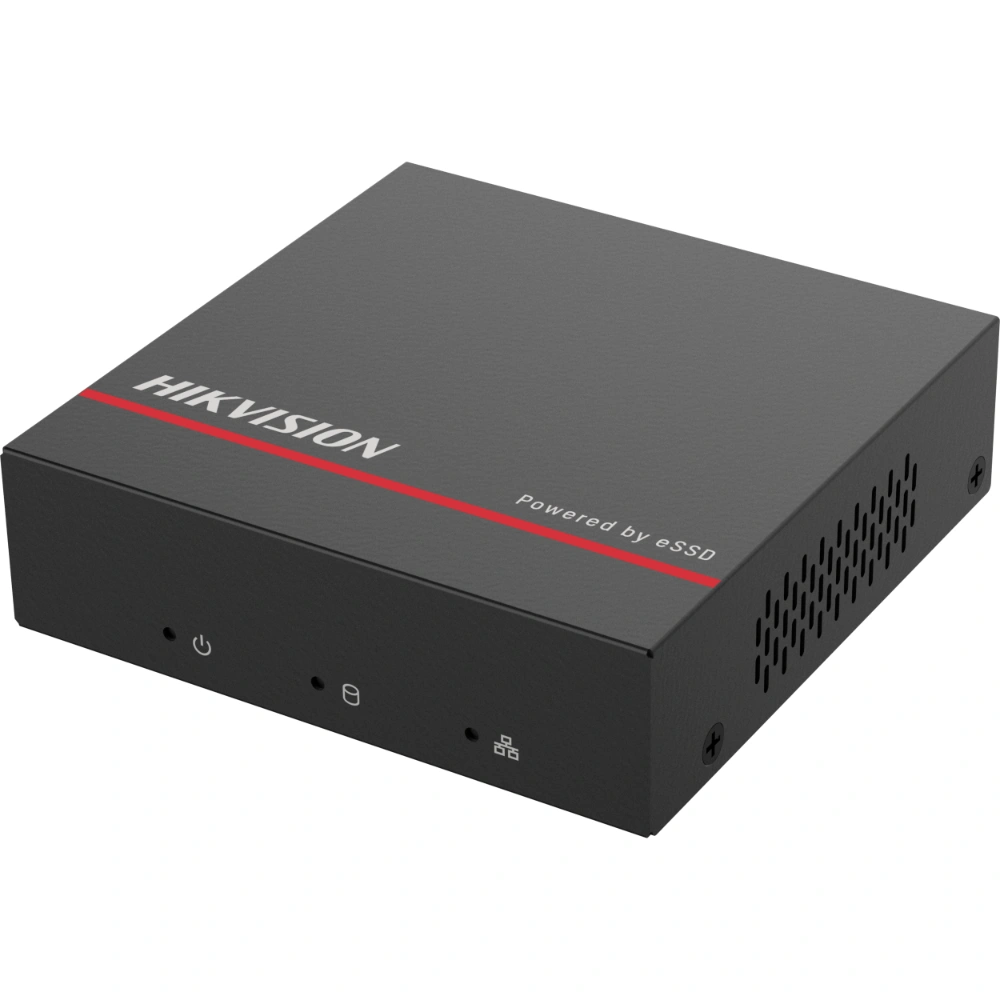

Hikvision DS-E04NI-Q1 4-Channel Mini NVR with Built-in 1TB eSSD | Silent & Compact

The Hikvision DS-E04NI-Q1 is a revolutionary “Mini NVR” featuring embedded SSD (eSSD) technology. With a pre-installed 1TB SSD, it offers silent, vibration-free recording with ultra-low power consumption. This 4-channel recorder supports up to 4MP resolution and fits in the palm of your hand, making it perfect for discreet installations in homes and small shops.

  • Channels: 4-Channel IP Video Input

  • Storage: 1TB eSSD Pre-installed (No HDD needed)

  • Compression: Efficient H.265+

  • Size: Ultra-compact (Palm-sized)

HikVision

217,80€
€180.00 (bez PVN)

The Future of Recording: Hikvision eSSD Series NVR

The DS-E04NI-Q1 changes the game for small security setups. By replacing the traditional spinning Hard Disk Drive (HDD) with advanced eSSD technology, Hikvision has created a recorder that is smaller, more stable, and more energy-efficient than ever before.

Key Features & Benefits:

  • Powered by eSSD Technology:
    The built-in 1TB SSD chip eliminates the need for mechanical moving parts. This means the NVR is resistant to bumps and vibrations, runs completely silently, and offers a longer lifespan compared to traditional HDDs.

  • Eco-Friendly & Low Energy:
    With a power consumption of less than 10W (even with the SSD running), this device helps reduce your electricity bill and carbon footprint.

  • Ultra-Compact Design:
    Measuring just 95 × 97 mm, this NVR is roughly the size of a smartphone. You can easily hide it behind a monitor, under a desk, or in small electrical boxes where traditional NVRs would never fit.

  • Efficient Video Compression:
    Smart H.265+ technology reduces bit rate and storage requirements by up to 75% compared to H.264, allowing you to record longer on the 1TB drive without sacrificing video quality.

  • Plug & Play Simplicity:
    Since the storage is pre-installed, you save time on installation. There is no need to open the box to screw in a hard drive. Just plug it in and start recording.

Technical Highlights:

  • Input Bandwidth: 40 Mbps (Supports up to 4 cameras)

  • Recording Resolution: Supports up to 4MP (and standard 1080p).

  • Decoding: Capable of playing back 4 channels at 1080p simultaneously.

  • Network: 1x RJ-45 Self-adaptive Ethernet interface.

  • USB: 2x USB 2.0 ports for mouse control and backup.

4. Specifications Table

Clean data for the “Additional Information” tab.

FeatureSpecification
ModelDS-E04NI-Q1
Video Input4-Channel IP Camera Input
Integrated Storage1TB SSD (Pre-installed)
Incoming Bandwidth40 Mbps
Outgoing Bandwidth60 Mbps
Video DecodingH.265 / H.265+ / H.264 / H.264+
Max Resolution4 MP
Playback Capability4-ch @ 1080p (25 fps)
Network Interface1 × RJ-45 10/100 Mbps
USB Interface2 × USB 2.0 (Rear panel)
Power Supply12 VDC, 1A
Power Consumption≤ 10 W
Working Temperature-10 °C to 50 °C
Dimensions95 × 97 × 27 mm (Mini Size)
Weight≤ 0.24 kg
SKU: DS-E04NI-Q1 Categories: ,

Is the built-in SSD in the Hikvision DS-E04NI-Q1 replaceable, and what happens if the device requires service?

The **Hikvision DS-E04NI-Q1** utilizes embedded SSD (eSSD) technology, where the storage chip is integrated directly into the mainboard. This design allows for its ultra-compact, palm-sized form factor and ensures completely silent, vibration-resistant operation. Because it is an integrated component, the drive is not user-replaceable like a traditional hard drive. While eSSDs offer superior durability and lower power consumption, having reliable support is critical for integrated devices. At **Apsardze24.lv**, we provide a full 2-year warranty serviced locally in Riga. Unlike grey market sellers where warranty claims can take months, our local team ensures that if any hardware issues arise, your equipment is serviced or replaced quickly.
