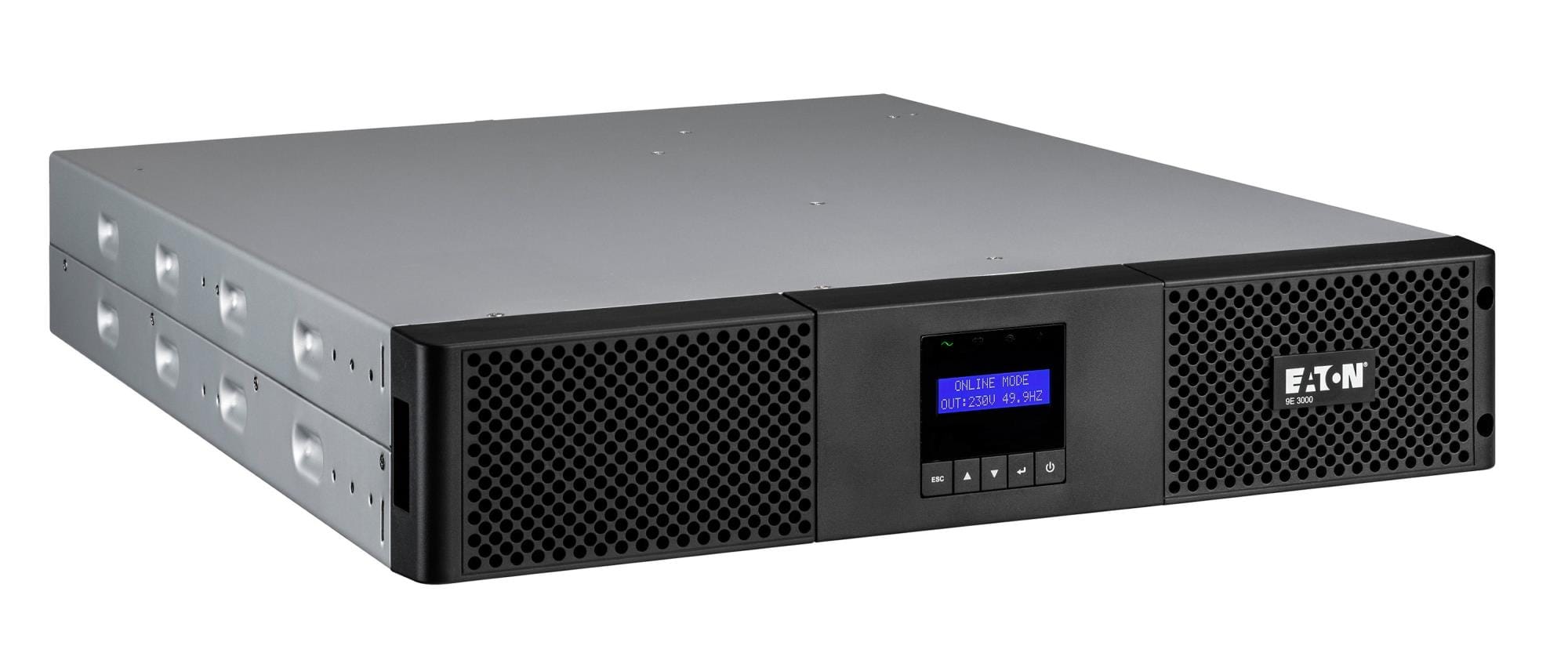

Eaton 9E Online UPS 2000VA/1800W Double-Conversion Rack 2U (9E2000IR)
- Output: 2000VA / 1800W (Online)
- Form Factor: Rack 2U, Pure Sine Wave
- Interface: LCD, USB, Serial Port
- Fast shipping to Latvia, as well as Estonia and Lithuania. 2-Year Warranty.
956,84€
€790.78 (bez PVN)
UPS topology Double-conversion (Online) | Output power capacity 2 kVA | Output power 1800 W | Waveform Sine | Input operation voltage (min) 140 V | Input operation voltage (max) 276 V | Input frequency 40/70 Hz | Output frequency 50/60 Hz | Heat dissipation 546 BTU/h | Number of input phases 1 | Number of output phases 1 | Efficiency 91 % | AC outlet types C13 coupler/C14 coupler | Power plug C13 coupler | USB port Yes | Serial interface Yes | Battery technology Lead-Acid | Battery voltage 12 V | Form factor Tower | Colour Black | Control type Buttons | Display type LCD | LED indicators Yes | Operating temperature (T-T) 0 – 40 °C | Rack mount kit Yes | Weight 29.9 kg
- Double conversion topology
- Constantly monitors power conditions and regulates voltage and frequency
- Provides more real power (watts) to protect more equipment with a 0.9 power factor
- Internal bypass allows service continuity in case of UPS fault

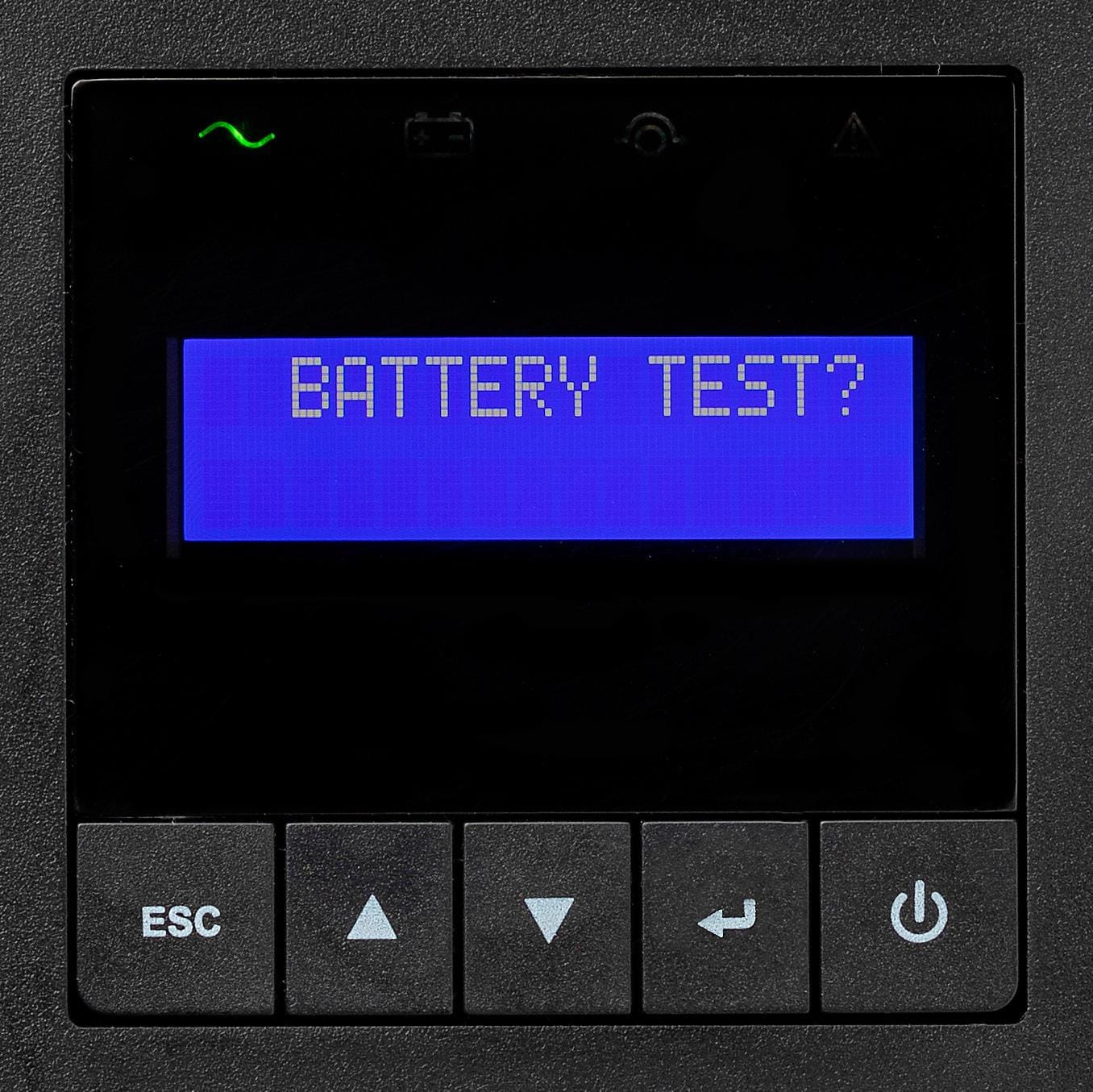

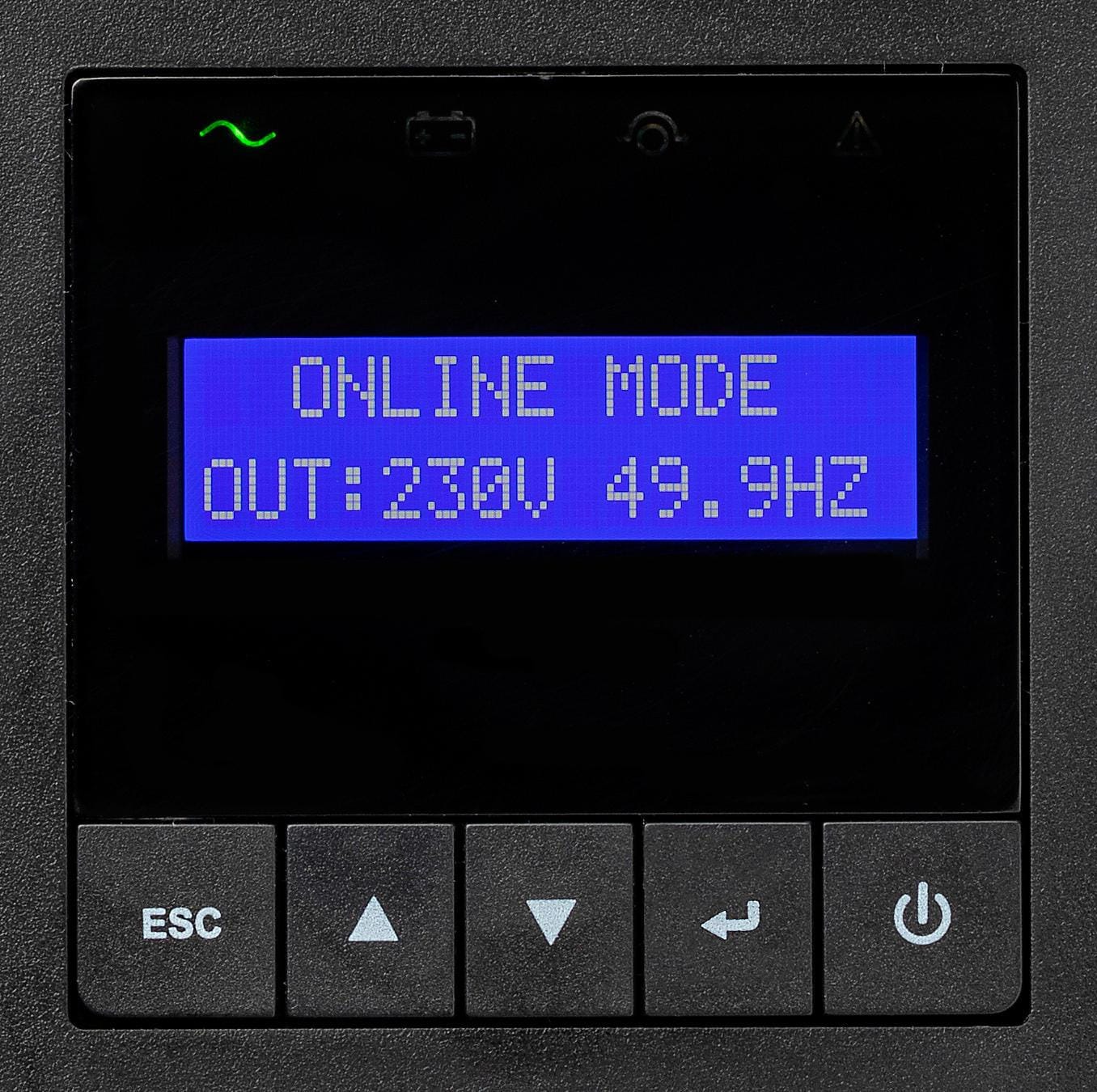

- LCD display
- Long backup time with up to 4 optional EBM
| Summary | Eaton 9E2000IR. UPS topology: Double-conversion (Online), Output power capacity: 2 kVA, Output power: 1800 W. AC outlet types: C13 coupler, C14 coupler, Power plug: C13 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Lead-Acid, Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Rack capacity: 2U. Compliance certificates: CE, Certification: IEC/EN 62040-1 IEC/EN 62040-2 CE |
| Unit Box Height | 0.23 |
| Unit Box Length | 0.78 |
| Unit Box Width | 0.58 |

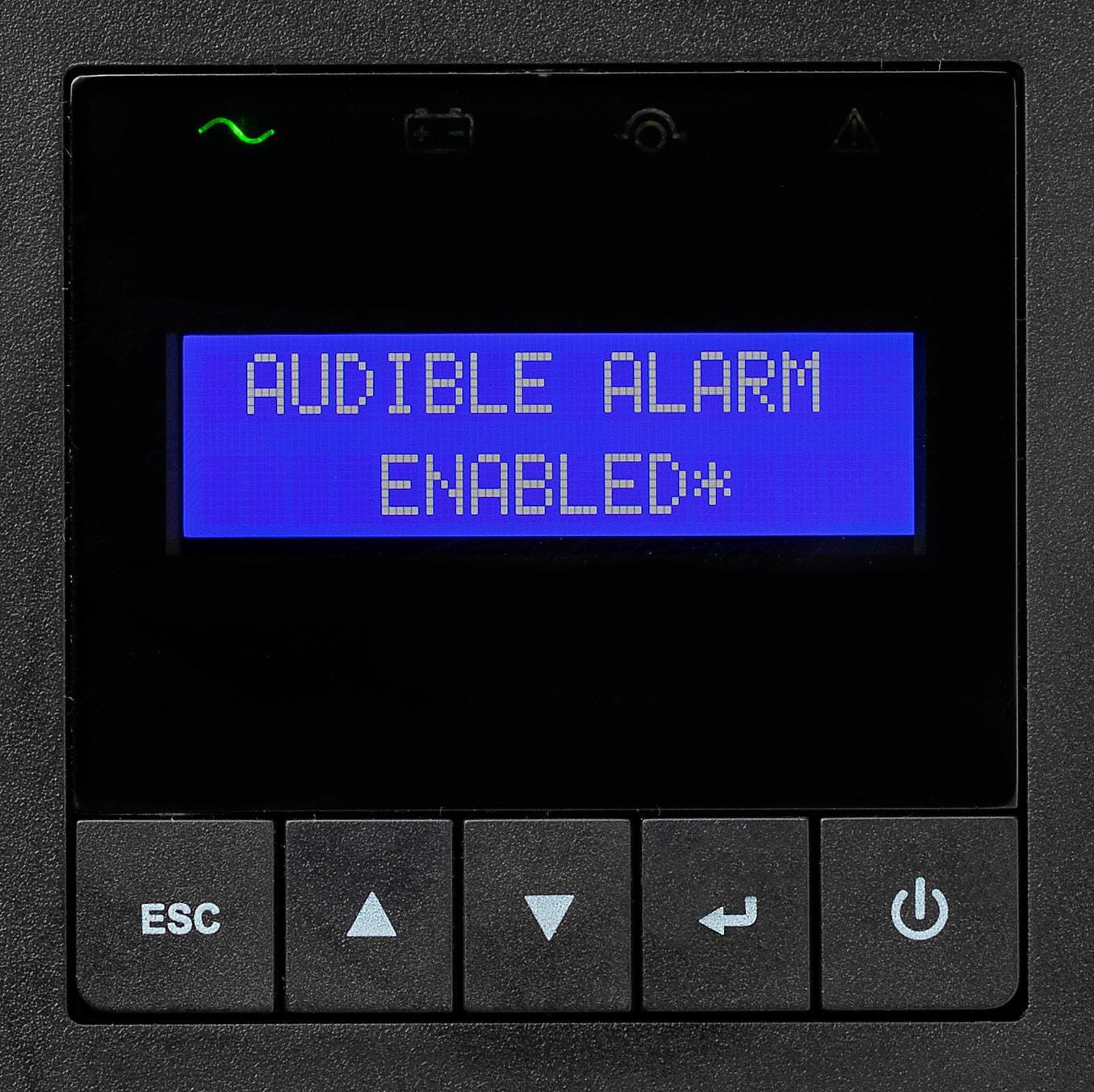

| Audible alarm(s) | Yes |
| Efficiency | 91% |
| Efficiency (ECO mode) | 96.5% |
| Heat dissipation | 546BTU/h |
| Input frequency | 40/70Hz |
| Input operation voltage (max) | 276V |
| Input operation voltage (min) | 140V |
| Input power factor | 99 |
| Noise level | 45dB |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Output frequency | 50/60Hz |
| Output operation voltage (max) | 240V |
| Output operation voltage (min) | 220V |
| Output power | 1800W |
| Output power capacity | 2kVA |
| Output power factor | 0.9 |
| Power source type | AC |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| AC outlet types | C13 coupler/C14 coupler |
| AC outlets quantity | 6AC outlet(s) |
| Power plug | C13 coupler |
| RS-232 ports | 1 |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| USB port | Yes |
| Battery capacity | 7Ah |
| Battery technology | Lead-Acid |
| Battery voltage | 12V |
| Number of batteries supported | 6 |
| Typical backup time at full load | 4.5min |
| Typical backup time at half load | 12min |
| Control type | Buttons |
| Display type | LCD |
| Form factor | Tower |
| LED indicators | Yes |
| Product colour | Black |
| Rack capacity | 2U |
| Operating relative humidity (H-H) | 0 – 96% |
| Operating temperature (T-T) | 0 – 40°C |
| Cables included | Output power cable,USB cable |
| Certification | IEC/EN 62040-1 IEC/EN 62040-2 CE |
| Compliance certificates | CE |
| Quick installation guide | Yes |
| Rack mount kit | Yes |
| Sustainability compliance | Yes |
| Depth | 608mm |
| Height | 86.5mm |
| Weight | 29900g |
| Width | 438mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.1041cubm |
| Unit Calculated Weight | 32.4kg |
Based on 1 review
Only logged in customers who have purchased this product may leave a review.
How does the warranty process work if the unit fails?
Apsardze24.lv provides a comprehensive 2-Year Warranty for this product. Our service center is located in Riga, allowing for much faster diagnostics and support for customers in the Baltics compared to shipping units back to central European warehouses.
What type of devices can be plugged into the rear outlets?
The UPS features 6 x IEC C13 outlets, which are standard for server and network equipment. To connect devices with standard domestic plugs, you would need a specific C14-to-Schuko adapter or power strip, which is not included.
How loud is the fan on the Eaton 9E2000IR during operation?
This unit produces approximately 45dB of noise, which is comparable to a quiet conversation. As an Online Double-Conversion UPS, the fans run continuously to cool the inverter, making it suitable for server rooms but potentially too noisy for quiet offices or bedrooms.
Is this UPS suitable for sensitive medical or audio equipment?
Yes, the Double-Conversion (Online) topology generates a Pure Sine Wave output with zero transfer time. This ensures clean, regulated power that is safe for sensitive electronics, unlike cheaper Line-Interactive models.
What is the expected battery runtime at full load?
At a full load of 1800W, the internal batteries provide approximately 4.5 minutes of backup time. At half load (900W), the runtime increases to roughly 12 minutes, allowing sufficient time for safe shutdown or generator startup.
Does the box contain the necessary rack mounting rails?
Yes, the specification confirms that a rack mount kit is included in the box. The unit occupies 2U of rack space and is designed for standard 19-inch server cabinets.
Will the UPS restart automatically when power returns after a battery drain?
Yes, the Eaton 9E is configured to automatically restart and restore power to connected equipment once the mains supply returns to acceptable levels. This feature ensures your servers come back online without manual intervention.
Does the package include a power cable for the wall socket?
No, the box typically contains output cables (C13-to-C14) and a USB cable, but does not include the main input cable (Schuko-to-C13). You generally use the power cable that was previously powering your server or PC to connect the UPS to the wall outlet.
Can I extend the backup time if I need more than a few minutes?
Yes, this model supports up to 4 external battery modules (EBMs) to significantly extend runtime. The specific EBM compatible with the 9E2000IR must be purchased separately to meet your specific duration requirements.
How do I ensure this UPS is sized correctly for my specific equipment?
You must ensure the total power draw of all connected devices does not exceed 1800W. If you have complex requirements or are unsure about your load calculation, please contact our technical support at [email protected] for a verified sizing recommendation.
