UPS For Workstations

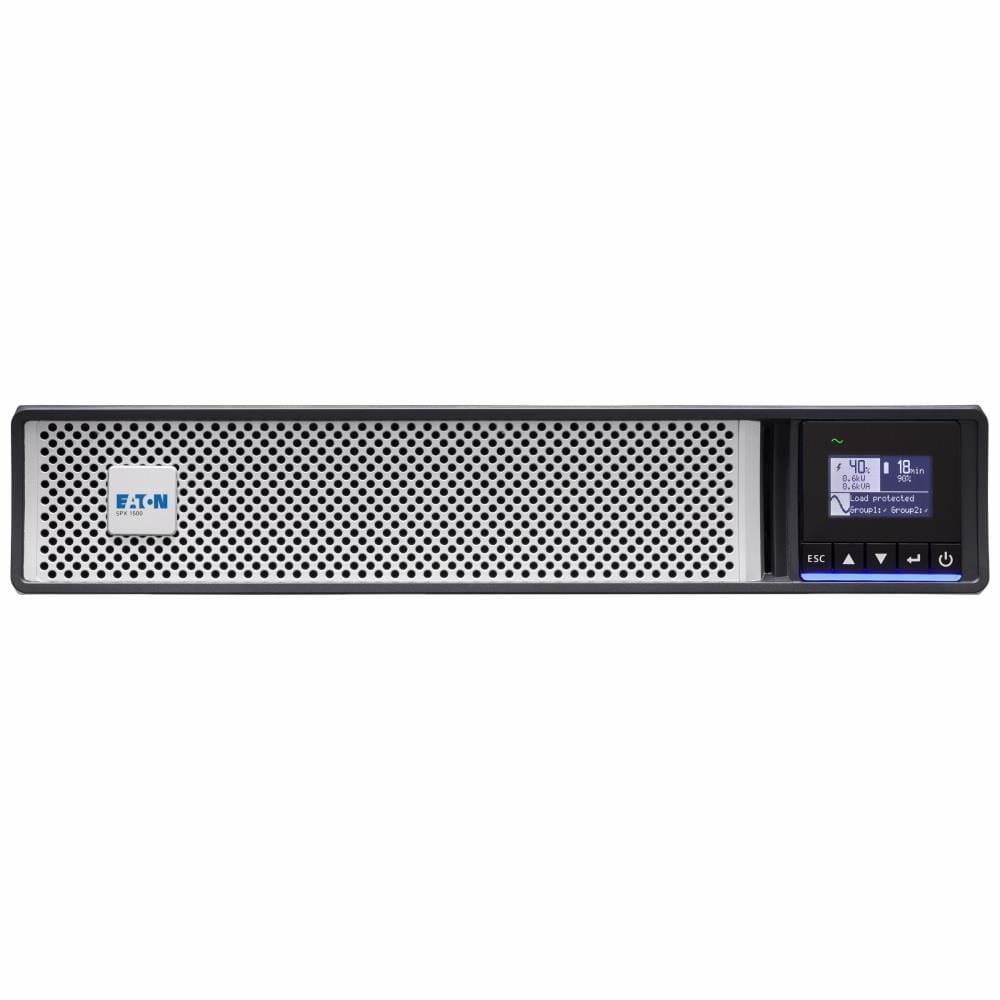

Eaton 5PX Gen2 1500VA/1500W Line-Interactive UPS Rack/Tower 2U (Black) (5PX1500IRTNG2)
- Power: 1500VA / 1500W Unity Power Factor, Pure Sine Wave.
- Form Factor: Rack/Tower 2U with LCD Display.
- Connectivity: Gigabit Network Management Card Included.
- Efficiency: Energy Star 2.0 & ABM Battery Tech.
- Fast shipping to Latvia, as well as Estonia and Lithuania. 2-Year Warranty for all clients (Business & Private).
1.531,80€
€1,265.95 (bez PVN)
UPS topology Line-Interactive | Output power capacity 1.5 kVA | Output power 1500 W | Waveform Pure sine | Input operation voltage (min) 160 V | Input operation voltage (max) 294 V | Input frequency 47/70 Hz | AC outlet types C13 coupler | Power plug C14 coupler | USB port Yes | Serial interface Yes | Form factor Rackmount/Tower | Colour Black | Display type LCD | LED indicators Yes | Operating temperature (T-T) 0 – 40 °C | Weight 22.4 kg
Exceptional efficiency, manageability and energy metering capabilities for IT managers
Performance and efficiency
– Eaton 5PX Gen 2 provides Unity power factor (W=VA) capability. With 11% more power than other UPS it can protect more servers.
– Energy Star 2.0 certified, 5PX Gen2 offers best-in-class efficiency performance to reduceenergy consumption and cooling costs.
– When operating in battery mode the 5PX provides a high-quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
– Each 5PX Gen2 battery configuration provides the best size /runtime ratio.
Management and Cybersecurity
– Innovative graphical LCD display brings all operating information at first sight. It also enhances commissioning and configuration capabilities.
– 5PX Gen2 Netpack models are delivered with Eaton Gigabit network management card, which provides Dual cybersecurity certifications (UL 2900-1 & IEC 62443-4-2) and enables connection to Eaton Cyber Secured Monitoring solutions.
– Together with 5PX Gen2, Eaton Gigabit network management card allows both remote UPS settings and remote firmware upgrade to ensure easy deployment (fleet management) and reduced maintenance cost.
– 5PX Gen2 meters energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software.
– Eaton’s Intelligent Power Software seamlessly integrates with leading virtualization environments and cloud orchestration tools.
Availability and flexibility
– 5PX Gen2 2200VA & 3000VA are available in RT2U format (optimized for rack mounting) or RT3U (for tower installation or short-depth racks). Pedestals and rail kits are included with all models.
– 5PX Gen2 load segment control enables prioritized shutdowns of non-essential equipment to maximize battery runtime for critical devices (2 groups).
– Eaton ABM® battery management technology uses a three stage charging technique that optimizes battery health and extends lifetime by up to 50%.
– Up to 4 external hot-swappable battery modules can be added for longer power availability.
| Summary | Eaton 5PX Gen2. UPS topology: Line-Interactive, Output power capacity: 1.5 kVA, Output power: 1500 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Compliance certificates: CE, Certification: IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm. Safety: IEC/EN 62040-1, UL1778, CSA22.2 |
| Unit Box Height | 0.245 |
| Unit Box Length | 0.58 |
| Unit Box Width | 0.5 |
| Input frequency | 47/70Hz |
| Input operation voltage (max) | 294V |
| Input operation voltage (min) | 160V |
| Noise level | 40dB |
| Output power | 1500W |
| Output power capacity | 1.5kVA |
| Power protection features | Overdischarge |
| UPS topology | Line-Interactive |
| Waveform | Pure sine |
| AC outlet types | C13 coupler |
| AC outlets quantity | 8AC outlet(s) |
| Cabling technology | 10/100/1000Base-T(X) |
| Power plug | C14 coupler |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| USB port | Yes |
| Automatic battery test | Yes |
| Hot-swap battery | Yes |
| Display type | LCD |
| Form factor | Rackmount/Tower |
| LED indicators | Yes |
| Product colour | Black |
| Rack capacity | 2U |
| Operating temperature (T-T) | 0 – 40°C |
| Certification | IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm |
| Compliance certificates | CE |
| Safety | IEC/EN 62040-1, UL1778, CSA22.2 |
| Sustainability certificates | ENERGY STAR |
| Sustainability compliance | Yes |
| Depth | 448mm |
| Height | 85.5mm |
| Weight | 22400g |
| Width | 438mm |
| Management card included | Yes |
| Harmonized System (HS) code | 85078000 |
| Nominal output voltage | 230V |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.07105cubm |
| Unit Calculated Weight | 29kg |
Based on 1 review
Only logged in customers who have purchased this product may leave a review.
Is the output waveform safe for sensitive Active PFC servers?
Absolutely, this line-interactive UPS generates a pure sine wave output on battery power. This is critical for the safe and stable operation of modern servers with Active PFC (Power Factor Corrected) power supplies.
Can I extend the battery runtime if the internal capacity is not enough?
Yes, the Eaton 5PX Gen2 supports the connection of up to 4 external hot-swappable battery modules (EBMs). This allows you to significantly extend the runtime for critical systems during long power outages.
Does the 5PX1500IRTNG2 model include the network management card?
Yes, this specific model is a 'Netpack' edition and includes the Eaton Gigabit Network Management Card pre-installed. This card enables secure remote monitoring and is certified for UL 2900-1 and IEC 62443-4-2 cybersecurity standards.
What type of power connections does this unit support?
The UPS features 8 x IEC C13 outlets for connecting your equipment and requires an IEC C14 input cable. Please ensure your devices have C14-to-C13 cables, or contact us at [email protected] for cabling advice.
How does the warranty work if the UPS fails?
Unlike international drop-shippers, Apsardze24.lv provides a full **2-Year Warranty** for both business and private clients. Our local service center in **Riga** handles diagnostics and warranty claims to ensure fast resolution.
What does 'Unity Power Factor' mean for this 1500VA UPS?
Unity Power Factor means the unit delivers 1500W of real power for its 1500VA rating (VA = W). This provides approximately 11% more usable wattage compared to older UPS models, allowing you to connect more devices.
Are rack mounting rails included in the box with the Eaton 5PX Gen2?
Yes, the manufacturer includes both the rail kits for standard 19-inch rack mounting and pedestals for tower installation in the box. You do not need to purchase a separate mounting kit.
