UPS For Workstations
Eaton 5P Gen2 850VA / 680W Line-Interactive UPS, Pure Sine Wave, 1U Rackmount (5P850IRG2)
- Output: 850VA / 680W, Pure Sine Wave.
- Design: Ultra-slim 1U Rackmount (G2).
- Tech: Line-Interactive, 98% Efficiency.
- Fast shipping to Latvia, Estonia, Lithuania. 2-Year Warranty.
684,70€
€565.87 (bez PVN)
UPS topology Line-Interactive | Output power capacity 0.85 kVA | Output power 680 W | Waveform Sine | Input operation voltage (min) 150 V | Input operation voltage (max) 294 V | Input frequency 47/70 Hz | Output frequency 50/60 Hz | Heat dissipation 307 BTU/h | Number of input phases 1 | Number of output phases 1 | Efficiency 98 % | AC outlet types C13 coupler | Power plug C14 coupler | USB port Yes | Serial interface Yes | Battery technology Sealed Lead Acid (VRLA) | Battery voltage 6 V | Form factor Tower | Colour Black,Silver | Display type LCD | Operating temperature (T-T) 0 – 40 °C | Operating altitude 0 – 3000 m | Weight 13.7 kg
| Summary | Eaton 5P850IRG2. UPS topology: Line-Interactive, Output power capacity: 0.85 kVA, Output power: 680 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 6 V. Form factor: Tower, Product colour: Black, Silver, Rack capacity: 1U. Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS |
| Unit Box Height | 0.175 |
| Unit Box Length | 0.59 |
| Unit Box Width | 0.53 |
| Automatic Voltage Regulation (AVR) | Yes |
| Efficiency | 98% |
| Heat dissipation | 307BTU/h |
| Input frequency | 47/70Hz |
| Input operation voltage (max) | 294V |
| Input operation voltage (min) | 150V |
| Noise level | 35dB |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Output frequency | 50/60Hz |
| Output operation voltage (max) | 240V |
| Output power | 680W |
| Output power capacity | 0.85kVA |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| AC outlet types | C13 coupler |
| AC outlets quantity | 4AC outlet(s) |
| Power plug | C14 coupler |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| USB port | Yes |
| USB port type | USB Type-B |
| Battery capacity | 7Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 6V |
| Number of batteries supported | 4 |
| Display type | LCD |
| Form factor | Tower |
| Product colour | Black,Silver |
| Rack capacity | 1U |
| Operating altitude | 0 – 3000m |
| Operating relative humidity (H-H) | 0 – 90% |
| Operating temperature (T-T) | 0 – 40°C |
| Certification | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS |
| Depth | 509mm |
| Height | 43.2mm |
| Weight | 13700g |
| Width | 438mm |
| Model | 5P850IRG2 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.05472/0.05516cubm |
| Unit Calculated Weight | 18.3kg |
Based on 1 review
Only logged in customers who have purchased this product may leave a review.
Does this UPS come with a network management card included?

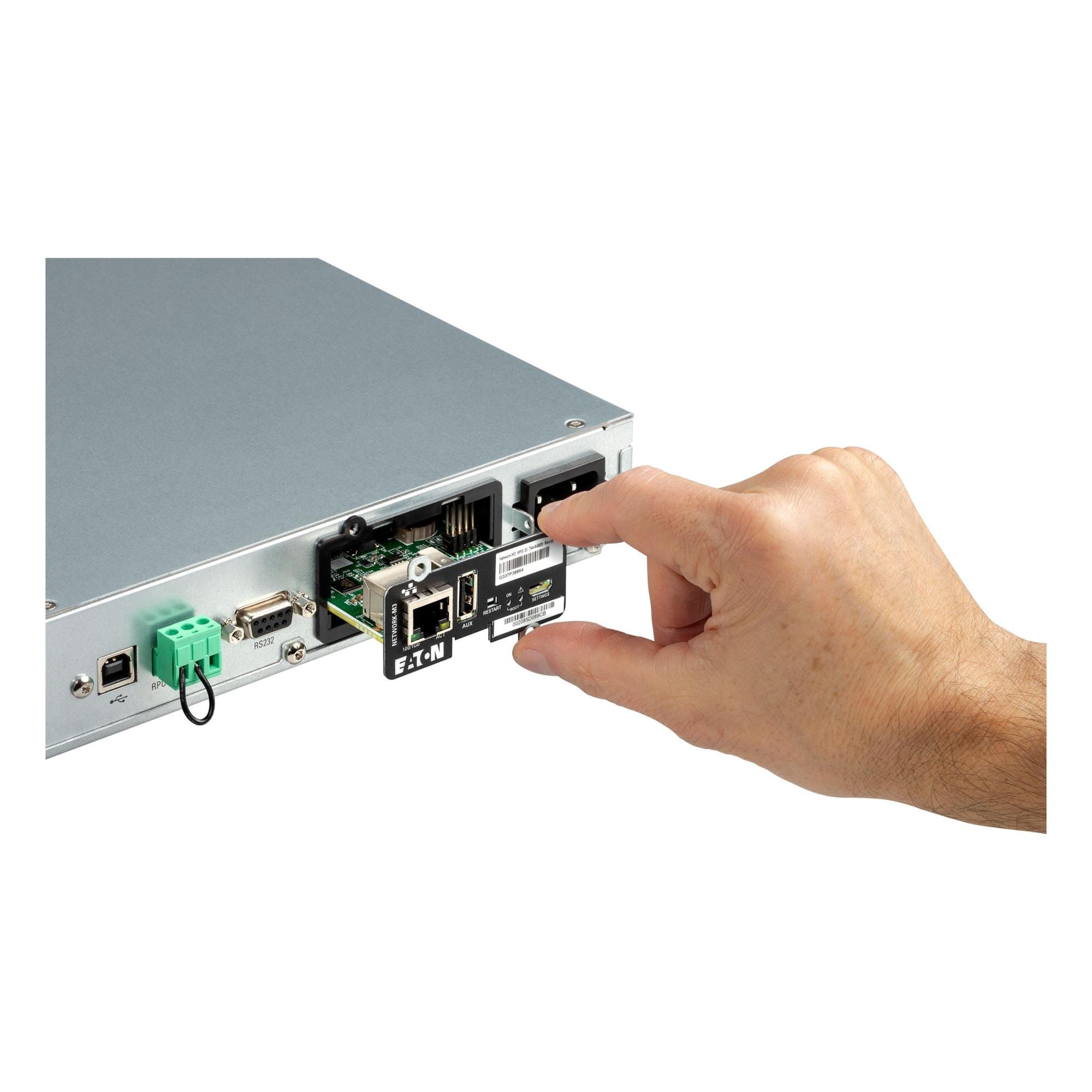

No, the unit includes USB and RS232 ports for direct connection. For remote network management (Web/SNMP), you must purchase and install an optional Eaton Network-M2 card in the rear expansion slot.
Can I plug standard wall plugs (Schuko) directly into this UPS?

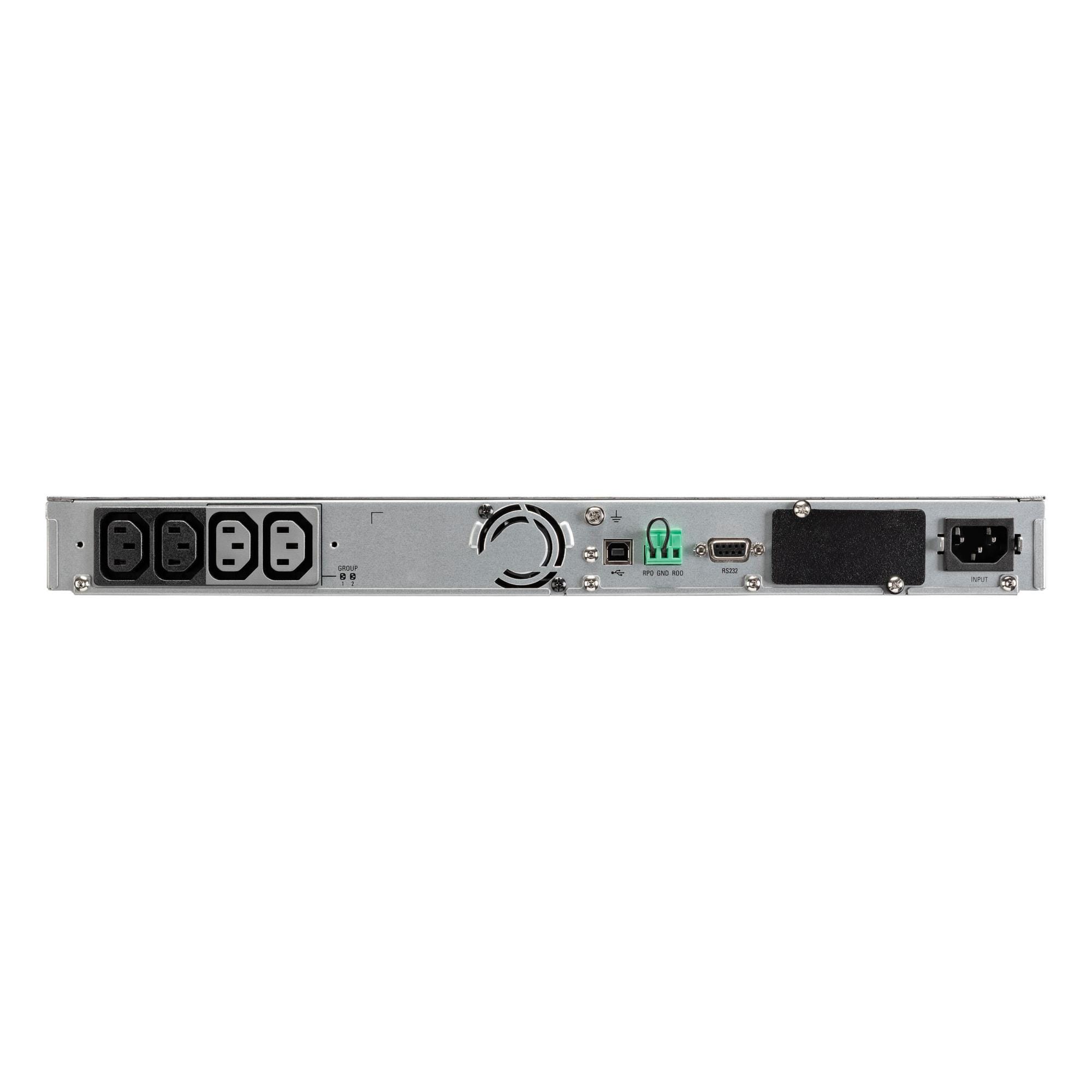

No, this model features 4x IEC C13 outlets (computer style). To connect devices with standard Schuko plugs, you will need to purchase separate C14-to-Schuko adapters or C14 power cables.
Is the fan noise loud for an office environment?
The Eaton 5P Gen2 is engineered for efficiency and operates at approximately 35dB. This is significantly quieter than typical 1U rack servers, making it suitable for office environments.
Why is Pure Sine Wave important for the Eaton 5P850IRG2?
Pure Sine Wave output is mandatory for modern servers and networking equipment equipped with Active PFC power supplies. Using a non-sine wave UPS on these devices can cause unexpected shutdowns or hardware damage.
Are the batteries hot-swappable on this 1U Rackmount model?
Yes, the batteries are user-replaceable and hot-swappable. You can replace the battery module from the front panel without cutting power to your connected equipment.
Does the UPS automatically restart when power is restored?
Yes, if the battery drains completely during a long outage, the UPS will automatically restart and power up your connected equipment once utility power is restored.
Will the 5P850IRG2 fit in a shallow 450mm wall-mount rack?
No, this unit has a depth of 509mm. You require a rack cabinet with a depth of at least 600mm to accommodate the UPS unit and the necessary rear cabling clearance.
How does the warranty work for customers in the Baltics?
Apsardze24.lv offers a full 2-Year Warranty on this product. Our service center is located in Riga, ensuring fast troubleshooting and support for customers in Latvia, Estonia, and Lithuania.
