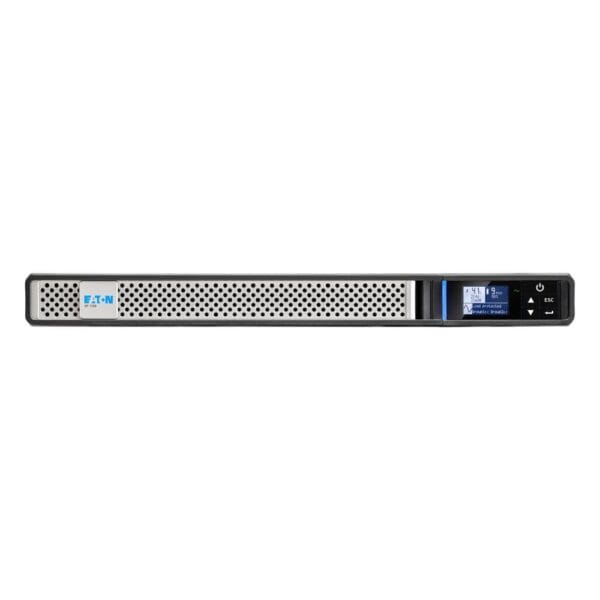

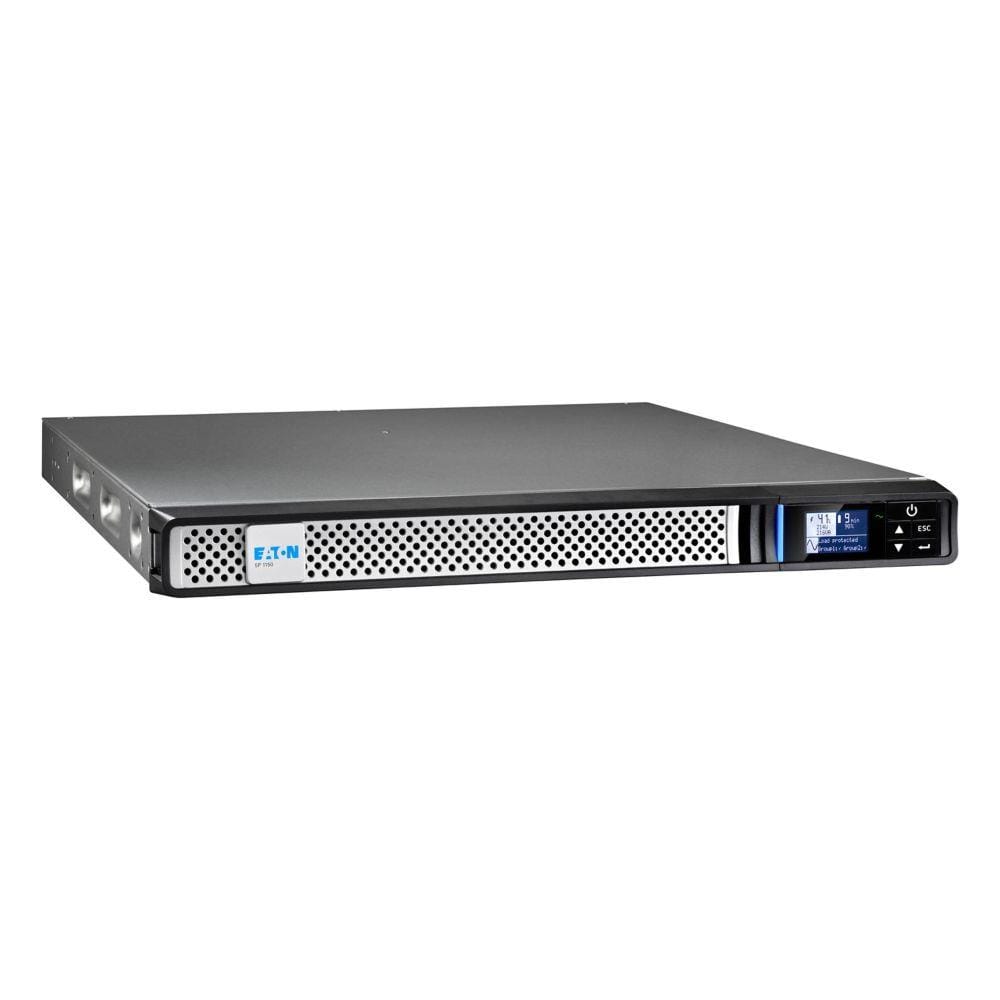

Eaton 5P Gen2 1150VA / 920W Line-Interactive UPS 1U Rackmount (5P1150IRNG2)

  • Power Output: 1150VA / 920W, Pure Sine Wave
  • Topology: Line-Interactive, 98.2% Efficiency
  • Form Factor: 1U Rackmount, LCD Interface
  • Connectivity: C13 Outlets, USB, Serial RS-232
  • Fast shipping to Latvia, as well as Estonia and Lithuania. 2-Year Warranty for all clients (Business & Private).

EATON

1.203,64€
€994.74 (bez PVN)

UPS topology Line-Interactive | Output power capacity 1.15 kVA | Output power 920 W | Waveform Sine | Input operation voltage (min) 150 V | Input operation voltage (max) 294 V | Input frequency 47/70 Hz | Output frequency 50/60 Hz | Heat dissipation 465 BTU/h | Number of input phases 1 | Number of output phases 1 | Efficiency 98.2 % | AC outlet types C13 coupler | Power plug C14 coupler | USB port Yes | Serial interface Yes | Battery technology Sealed Lead Acid (VRLA) | Battery voltage 6 V | Form factor Rackmount | Colour Black,Silver | Display type LCD | LED indicators Yes | Operating temperature (T-T) 0 – 40 °C | Operating altitude 0 – 3000 m | Rack mount kit Yes | Weight 14.3 kg

SummaryEaton 5P1150IRNG2. UPS topology: Line-Interactive, Output power capacity: 1.15 kVA, Output power: 920 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 6 V. Form factor: Rackmount, Product colour: Black, Silver, Rack capacity: 1U. Compliance certificates: Low Voltage Directive (LVD), RoHS, Certification: EMC IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS
Unit Box Height0.175
Unit Box Length0.59
Unit Box Width0.54
Automatic Voltage Regulation (AVR)Yes
Efficiency98.2%
Heat dissipation465BTU/h
Input frequency47/70Hz
Input operation voltage (max)294V
Input operation voltage (min)150V
Noise level35dB
Number of input phases1
Number of output phases1
Output frequency50/60Hz
Output operation voltage (max)240V
Output operation voltage (min)200V
Output power920W
Output power capacity1.15kVA
Power factor0.8
UPS topologyLine-Interactive
WaveformSine
AC outlet typesC13 coupler
AC outlets quantity6AC outlet(s)
Network card slotYes
Power plugC14 coupler
Serial interfaceYes
Serial interface typeRS-232
Serial ports quantity1
USB portYes
USB port typeUSB Type-B
Battery capacity9Ah
Battery technologySealed Lead Acid (VRLA)
Battery voltage6V
Hot-swap batteryYes
Number of battery cells4
Typical backup time at half load12.5min
Display typeLCD
Form factorRackmount
LED indicatorsYes
Product colourBlack,Silver
Rack capacity1U
Operating altitude0 – 3000m
Operating relative humidity (H-H)0 – 90%
Operating temperature (T-T)0 – 40°C
Cables includedUSB cable
CertificationEMC
IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
UL 1778
CSA-C22.2
CE
UKCA
Cm
Ukr
KCC
cTUVus
BIS
Compliance certificatesLow Voltage Directive (LVD)/RoHS
Quick installation guideYes
Rack mount kitYes
Waste Electrical and Electronic Equipment (WEEE) complianceYes
Depth509mm
Height43.2mm
Weight14280g
Width438mm
ModelEaton 5P Gen2
Units per Shipping Box1
Unit Calculated Volume0.055755cubm
Unit Calculated Weight19.2kg
SKU: EATON-5P1150IRNG2 Category:

Based on 1 review

0.0 overall
1
0
0
0
0

Only logged in customers who have purchased this product may leave a review.

  1. Jonathan Hayes –

    I picked up this Eaton 5P Gen2 for my home lab server rack. The 1U design is super slim and saves so much space compared to my old unit. The LCD display is crisp, and having 920W output is plenty for my gear. Delivery from apsardze24.lv was prompt. Very happy with the purchase.

    Jonathan Hayes –

How much rack depth is required to install this 1U UPS?

The unit has a depth of 509mm. We recommend a rack cabinet with a mounting depth of at least 600mm to allow sufficient space for the unit and cabling.

Is the network management card included in the box?

No, this model features an empty expansion slot. The Network-M2 gigabit network card is sold separately if you require remote management capabilities.

What is the warranty coverage for this product at Apsardze24.lv?

We provide a comprehensive 2-Year Warranty for all clients (Business & Private). Service and warranty claims are handled locally through our center in Riga.

Does the box contain input and output power cables?

The specifications list a USB cable, but input/output power cables vary by region and batch. For confirmation on specific cabling needs, please contact support at [email protected].

Does the 5P1150IRNG2 produce a pure sine wave output?

Yes, the Eaton 5P Gen2 provides a pure sine wave output on battery mode, making it fully compatible with Active PFC power supplies and sensitive IT equipment.

What is the expected battery runtime at half load?

At 50% load (approximately 460W), the UPS provides about 12.5 minutes of backup time. Runtime will decrease significantly as the load approaches the 920W maximum.

Can I plug standard Schuko (wall) plugs directly into the Eaton 5P1150IRNG2?

No, this unit features 6 x C13 (IEC) outlets designed for server cables. To connect devices with standard plugs, you will need C14-to-Schuko adapters or a compatible PDU.

How loud is the fan on this 1U unit?

The unit operates quietly with a noise level of roughly 35dB, which is suitable for office environments, unlike many louder rackmount solutions.

Can I replace the batteries without powering down the connected equipment?

Yes, this UPS supports hot-swappable batteries, allowing you to replace the battery module from the front panel while your critical systems remain powered.

Does the package include the rack mounting rails?

Yes, a rack mount kit is included with the Eaton 5P1150IRNG2, allowing immediate installation into standard 19-inch server racks.
