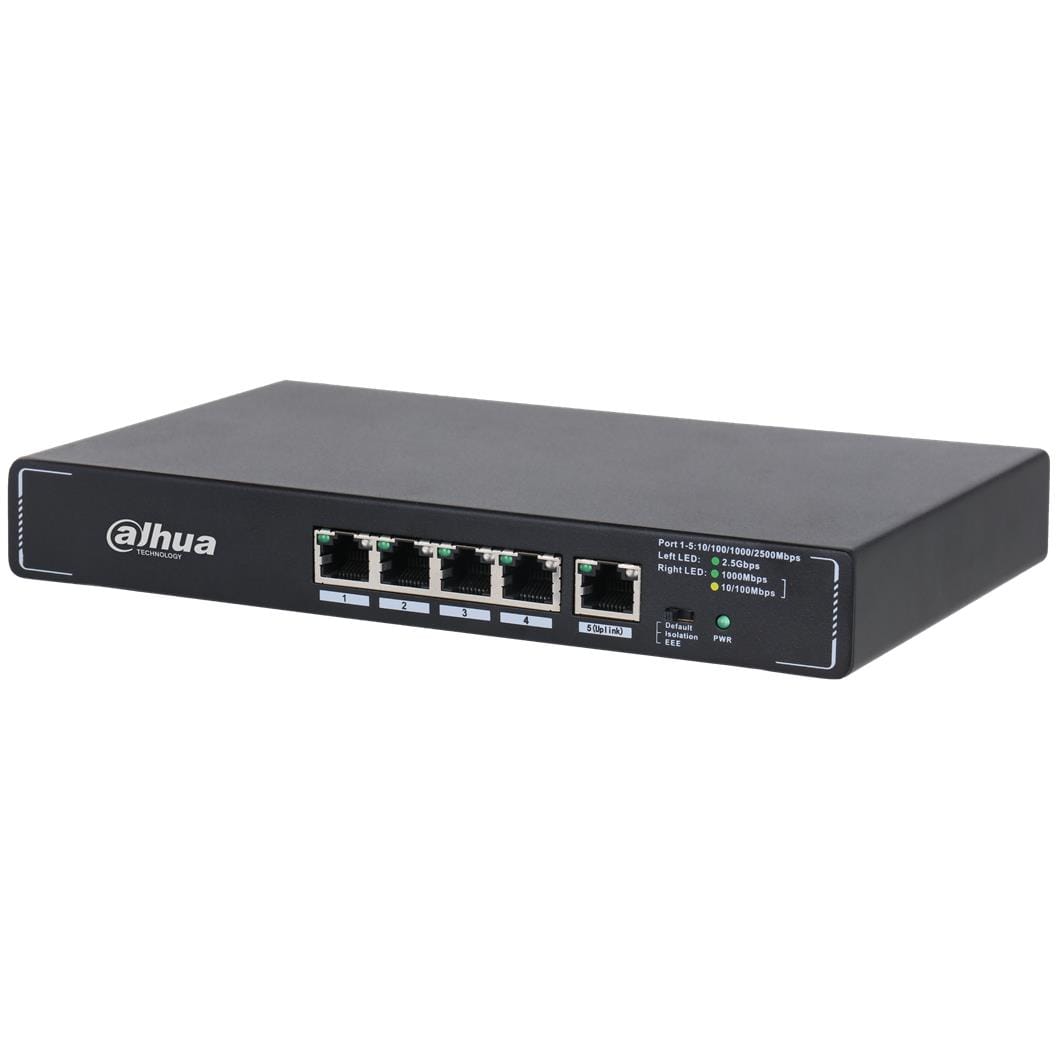

DH-SMG1005 Dahua 5-Port 2.5G Unmanaged Desktop Switch (Metal Housing)

  • Multi-Gigabit Speed: 5 × 2.5 Gbps (2500 Mbps) RJ-45 Ports.
  • High Performance: 25 Gbps Switching Capacity & 18.6 Mpps Rate.
  • Robust Design: Fanless, Solid Metal Casing for effective heat dissipation.
  • Easy Setup: Plug and Play with Green Ethernet (802.3az) support.
  • Fast shipping to Latvia, as well as Estonia and Lithuania. 2-Year Warranty for all clients (Business & Private).

Dahua

54,44€
€44.99 (bez PVN)

Switching capacity 25 Gbps | Forwarding rate 18.6 Mpps | Power supply External | Power options 12V | Operating temperature range –10 °C to +55 °C | Dimensions 220 mm × 141 mm × 30 mm | Product Net Weight 0.69 kg

5-Port Unmanaged Desktop Switch with 5-Port 2.5G
>5 × RJ-45 10/100/1000/2500 Mbps ports.
>Easy to install, and is plug and play.
>With its solid full metal design, the device has great heat dissipation and no fan.
>Green Ethernet (802.3az).


Desktop/pedestalYes
2.5GbE5
IEEE 802.3Yes
IEEE 802.3abYes
IEEE 802.3adYes
IEEE 802.3aeYes
IEEE 802.3azYes
IEEE 802.3uYes
IEEE 802.3xYes
IEEE 802.3zYes
Model nameDH-SMG1005
Primary port count5
Switching capacity25Gbps
Forwarding rate18.6Mpps
Power supplyExternal
Power options12V
Power source12 VDC, max 1 A
Operating temperature range–10 °C to +55 °C
Dimensions220 mm × 141 mm × 30 mm
Units per Shipping Box1
Unit Calculated Volume0.000732cubm
Product Net Weight0.69kg
Unit Calculated Weight0.942kg
SKU: DAHUA-SMG1005 Category:

Based on 1 review

0.0 overall
1
0
0
0
0

Only logged in customers who have purchased this product may leave a review.

  1. Lucas Bennett –

    I needed to upgrade my home network speeds and this Dahua 2.5G switch was exactly what I was looking for. The metal housing feels incredibly solid, and I love that it’s fanless and completely silent. Setup was literally just plug and play. Really satisfied with the quick service from apsardze24.lv too!

    Lucas Bennett –

What is the operating temperature range for the DH-SMG1005?

This switch is built to withstand a wide range of environments, operating efficiently in temperatures from –10 °C to +55 °C, making it suitable for various indoor installation locations.

What type of cables do I need to get full 2.5G speeds on the DH-SMG1005?

To achieve the full 2500 Mbps speed, we recommend using at least high-quality Cat5e cables for short distances, or Cat6/Cat6a cables for reliable performance over longer cable runs.

What happens if my Dahua DH-SMG1005 stops working after a year?

We provide a comprehensive **2-Year Warranty** for both business and private clients. Our service center is located locally in **Riga**, ensuring fast diagnostics and repairs without the need to ship the unit abroad.

Will the DH-SMG1005 improve my local file transfer speeds?

Yes, if your computer and NAS (Network Attached Storage) are equipped with 2.5G network cards, this switch will increase your transfer speeds up to 2.5 times compared to a standard Gigabit switch.

Is the DH-SMG1005 compatible with older 1Gbps or 100Mbps devices?

Yes, the ports on this switch are fully backward compatible. They utilize auto-negotiation to detect whether a connected device is 10Mbps, 100Mbps, 1Gbps, or 2.5Gbps, and adjust the speed accordingly.

Does the DH-SMG1005 require a specific app for configuration?

No, this is an unmanaged switch designed for Plug and Play simplicity. It does not require the DMSS app or any configuration software; simply connect your Ethernet cables and the device handles the rest automatically.

Can I use the DH-SMG1005 to power my cameras via PoE?

No, the DH-SMG1005 does not support Power over Ethernet (PoE). It is a data transmission switch only and requires the included external 12V power supply to operate. Connected cameras must be powered separately.

Does the DH-SMG1005 support wall mounting?

The unit is primarily designed as a desktop or pedestal device. For specific details regarding wall-mounting brackets or compatible mounting kits, please contact our technical support team at [email protected].

Is the DH-SMG1005 switch the Chinese or EU version?

This is the **Official EU version** of the device, ensuring full compliance with European safety standards. Apsardze24.lv is an Authorized Partner, guaranteeing you receive a genuine product without region locks.

How loud is the DH-SMG1005 when operating under full load?

The device is completely silent. It features a fanless design and a robust metal housing that effectively dissipates heat, making it perfect for noise-sensitive environments like home offices or living rooms.
