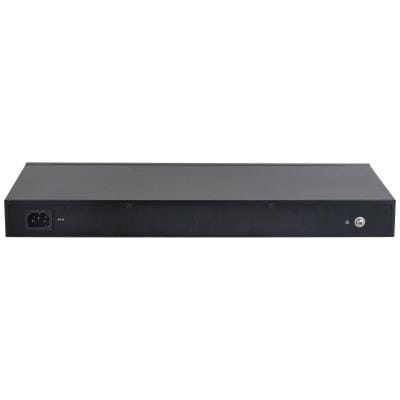

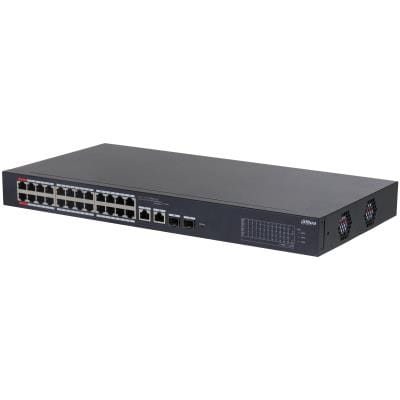

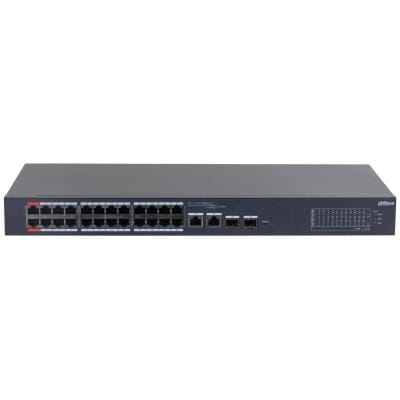

DH-CS4226-24ET-375 Dahua 24-Port 375W PoE Cloud Managed Layer 2 Desktop Switch

Availability:

Out of stock Check availability

Availability:

Out of stock

  • 24 PoE Ports (375W), BT 90W
  • L2 Cloud Management
  • Fast shipping to Latvia, Estonia, Lithuania
  • 2-Year Warranty for all clients

Dahua

167,52€
€138.45 (bez PVN)

Out of stock

Type L2 | PoE ports 24 | PoE power budget 375 Watts | Switching capacity 8.8 Gbps | Forwarding rate 6.55 Mpps | Power supply Inbuilt | Dimensions 440 × 220 × 44 mm | Product Net Weight 2.62 kg

"26-Port Cloud Managed Desktop Switch with 24-Port PoE
> Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab,IEEE802.3z standards.
> Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards.
> Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE.
> A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof."

Unit Box Height0.09
Unit Box Length0.545
Unit Box Width0.34
Desktop/pedestalYes
IEEE 802.3Yes
IEEE 802.3abYes
IEEE 802.3uYes
IEEE 802.3xYes
IEEE 802.3zYes
Model nameCS4226-24ET-375
Switch typeL2
Primary port count24
PoE ports24
PoE power budget375Watts
Switching capacity8.8Gbps
Forwarding rate6.55Mpps
Power supplyInbuilt
Dimensions440 × 220 × 44 mm
Units per Shipping Box1
Unit Calculated Volume0.01668cubm
Product Net Weight2.62kg
Unit Calculated Weight3.39kg
SKU: DAHUA-DH-CS4226-24ET-375 Category:

Based on 1 review

0.0 overall
1
0
0
0
0

Only logged in customers who have purchased this product may leave a review.

  1. Samuel Parker –

    I bought this switch for my office security setup. The 375W power budget handles all my cameras effortlessly. The cloud management feature makes remote configuration a breeze. Also, shipping from apsardze24.lv was super quick. Really satisfied with the sturdy metal build.

    Samuel Parker –

What is the maximum data throughput capacity of the DH-CS4226-24ET-375?

The switch offers a switching capacity of 8.8 Gbps and a packet forwarding rate of 6.55 Mpps. This ensures high-speed data flow and prevents video lag, even when all 24 PoE ports are transmitting high-definition video streams.

How does the Intelligent PoE feature on the DH-CS4226-24ET-375 benefit my system?

Intelligent PoE monitors the power consumption of connected devices in real-time. If the total power limit is reached, the switch automatically prioritizes power to the most critical ports to ensure your most important cameras never lose power.

Is the DH-CS4226-24ET-375 the official EU version or a global import?

This is the official EU version, meaning it comes with European firmware and is not region-locked. Apsardze24.lv is an authorized partner, ensuring you receive a product that supports all future official security updates.

Is the DH-CS4226-24ET-375 quiet enough for a small office desk?

While it is a 'desktop' type switch, it contains internal fans to manage the 375W heat output. It is best suited for a ventilated cabinet or a dedicated server room rather than directly on a desk in a very quiet office.

Can I mount the DH-CS4226-24ET-375 inside a standard 19-inch rack?

Yes, with a width of 440mm and a 1U height, it is designed for rack installation. If you require specific mounting brackets or have questions about the included accessories, please contact our technical support at [email protected].

Does the CS4226-24ET-375 support Layer 3 routing features?

No, this is a Layer 2 (L2) Cloud Managed Switch. It is designed for efficient data switching, VLAN management, and PoE control, rather than complex inter-VLAN routing found in L3 devices.

What is the total PoE power budget for the CS4226-24ET-375?

The switch features a robust total PoE power budget of 375 Watts. This provides enough overhead to power 24 standard IP cameras simultaneously or a combination of cameras and high-draw wireless access points.

Does the DH-CS4226-24ET-375 support high-power 90W PTZ cameras?

Yes, this switch supports the latest IEEE 802.3bt standard (Hi-PoE), providing up to 90W on designated ports. It is perfectly suited for power-hungry devices like speed domes and thermal cameras.

Which mobile app do I need to manage the DH-CS4226-24ET-375 from my phone?

You can manage this switch remotely using the Dahua DoLynk Care or DMSS app. These apps are available for both iOS and Android, allowing you to monitor port status and restart PoE power remotely.

What happens if my DH-CS4226-24ET-375 stops working after one year?

We provide a full 2-year warranty for both private and business customers. Our service center is located locally in Riga, so any necessary repairs or replacements are handled quickly without needing to ship the unit abroad.
