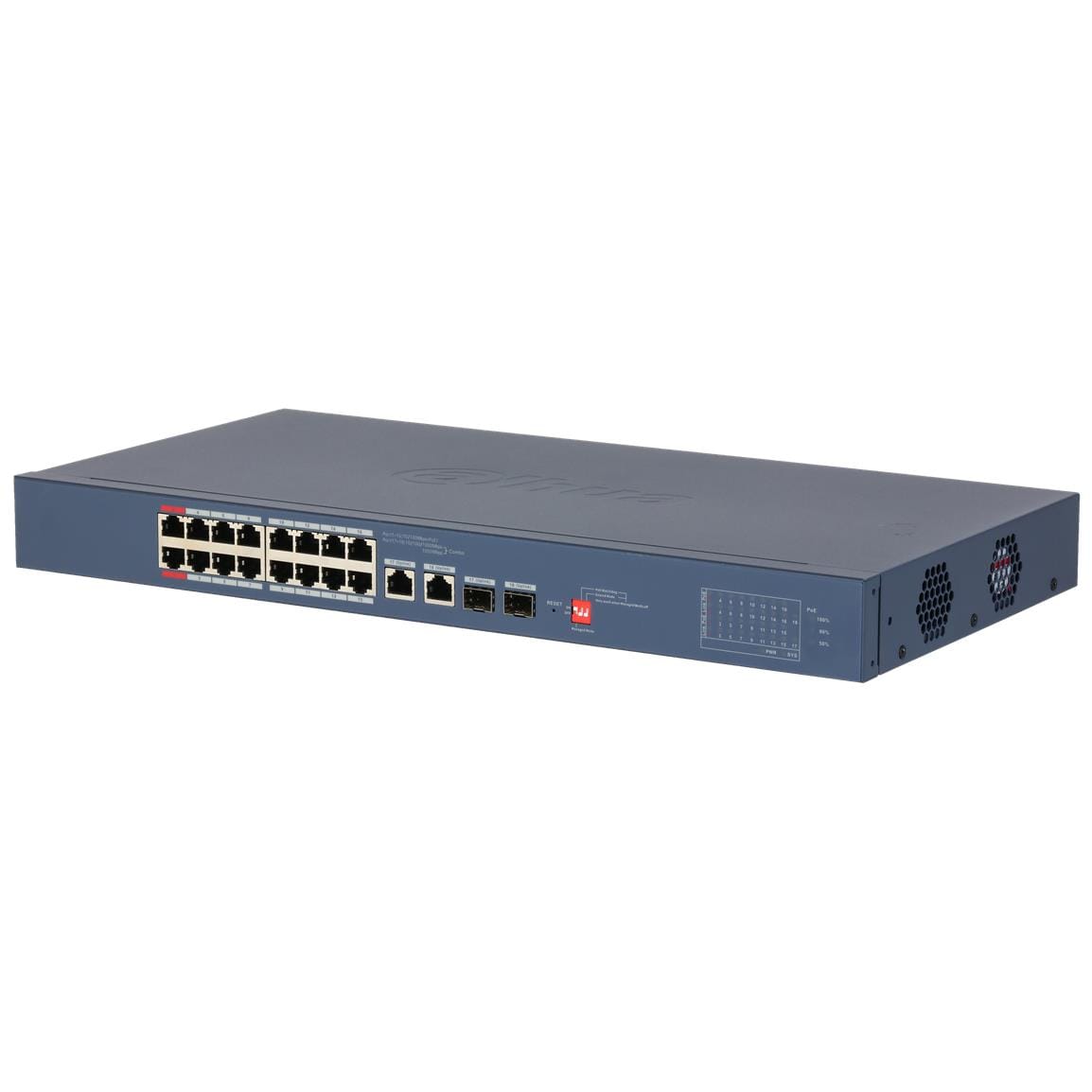

DH-CS4218-16ET-190 Black Dahua 18-Port Cloud Managed Switch 16x PoE (190W) + 2x Gigabit Combo

  • Ports: 16x PoE (10/100Mbps) + 2x Gigabit Combo Uplinks
  • Power: 190W Total Budget (Supports Hi-PoE 90W)
  • Intelligence: Cloud Managed, PoE Watchdog, 250m Transmission
  • Build: Metal Casing, Rack-mountable (1U)
  • Fast shipping to Latvia, as well as Estonia and Lithuania. 2-Year Warranty for all clients (Business & Private).

Dahua

113,43€
€93.74 (bez PVN)

Type L2 | PoE ports 16 | PoE power budget 190 Watts | Switching capacity 7.2 Gbps | Forwarding rate 5.36 Mpps | Power supply Inbuilt | Operating temperature range –10 °C to +55 °C | Dimensions 440 mm × 220 mm × 44 mm | Product Net Weight 2.29 kg

18-Port Cloud Managed Desktop Switch with 16-Port PoE
> Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x, IEEE802.3ab,IEEE802.3z standards.
> Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards.
> Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE.
> A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.


Unit Box Height0.09
Unit Box Length0.54
Unit Box Width0.34
10Base-T / 100Base-TX16
10Base-T / 100Base-TX / 1000Base-T2
IEEE 802.3Yes
IEEE 802.3abYes
IEEE 802.3uYes
IEEE 802.3xYes
IEEE 802.3zYes
Model nameDH-CS4218-16ET-190
Switch typeL2
Primary port count18
PoE ports16
PoE power budget190Watts
Switching capacity7.2Gbps
Forwarding rate5.36Mpps
Power supplyInbuilt
Power source100-240 VAC, 47-63 Hz, max 4 A
Operating temperature range–10 °C to +55 °C
Dimensions440 mm × 220 mm × 44 mm
Units per Pallet0
Units per Shipping Box5
Unit Calculated Volume0.01942cubm
Product Net Weight2.29kg
Unit Calculated Weight3.46kg
SKU: DAHUA-CS4218-16ET-190 Category:

Based on 0 reviews

0.0 overall
0
0
0
0
0

Only logged in customers who have purchased this product may leave a review.

There are no reviews yet.

Which mobile app is required to manage the DH-CS4218-16ET-190?

This Cloud Managed switch is compatible with the **DoLynk Care** app (available on iOS and Android) and the web platform. This allows you to monitor network health, manage topology, and perform maintenance remotely.

Is the DH-CS4218-16ET-190 the official EU version?

Yes, Apsardze24.lv supplies only the **Official EU version** of this device. This ensures full compliance with local regulations, proper English firmware, and no region-locking issues often found in grey market imports.

Can the DH-CS4218-16ET-190 power a high-performance PTZ camera?

Yes. While most ports support standard PoE+ (30W), this switch supports **Hi-PoE (IEEE802.3bt)** on specific ports (typically ports 1-2), delivering up to 90W. This is sufficient for power-hungry PTZ speed domes.

How do I configure the Gigabit Combo ports for uplinking?

The switch has 2x Gigabit Combo ports (RJ45/SFP). You can use either the copper cable or the fiber module for each port number, but not both simultaneously. For specific topology questions, please contact our support at [email protected].

My cameras are 200m away. Will this Dahua switch reach them?

Yes. This model features a long-distance transmission mode (often called Extend Mode). When enabled, it allows PoE power and data transmission up to **250 meters** at 10Mbps, which is ideal for surveillance cameras located far from the main rack.

What does the PoE Watchdog feature do on the DH-CS4218-16ET-190?

PoE Watchdog is an intelligent feature that monitors the status of connected cameras. If a camera crashes or freezes, the switch automatically detects the failure and reboots that specific port to restore the connection without manual intervention.

What happens if the switch stops working after a year?

We provide a comprehensive **2-Year Warranty** for both private and business clients. Our service center is located in **Riga**, ensuring fast repairs or replacements without the need to ship equipment abroad.
