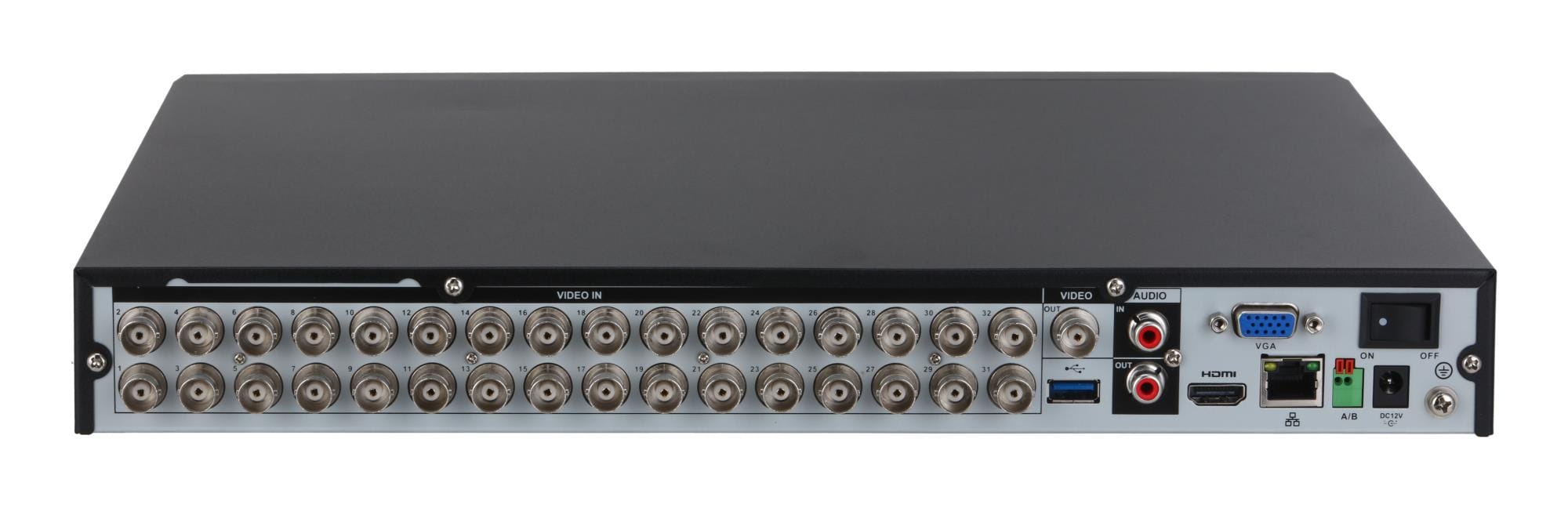

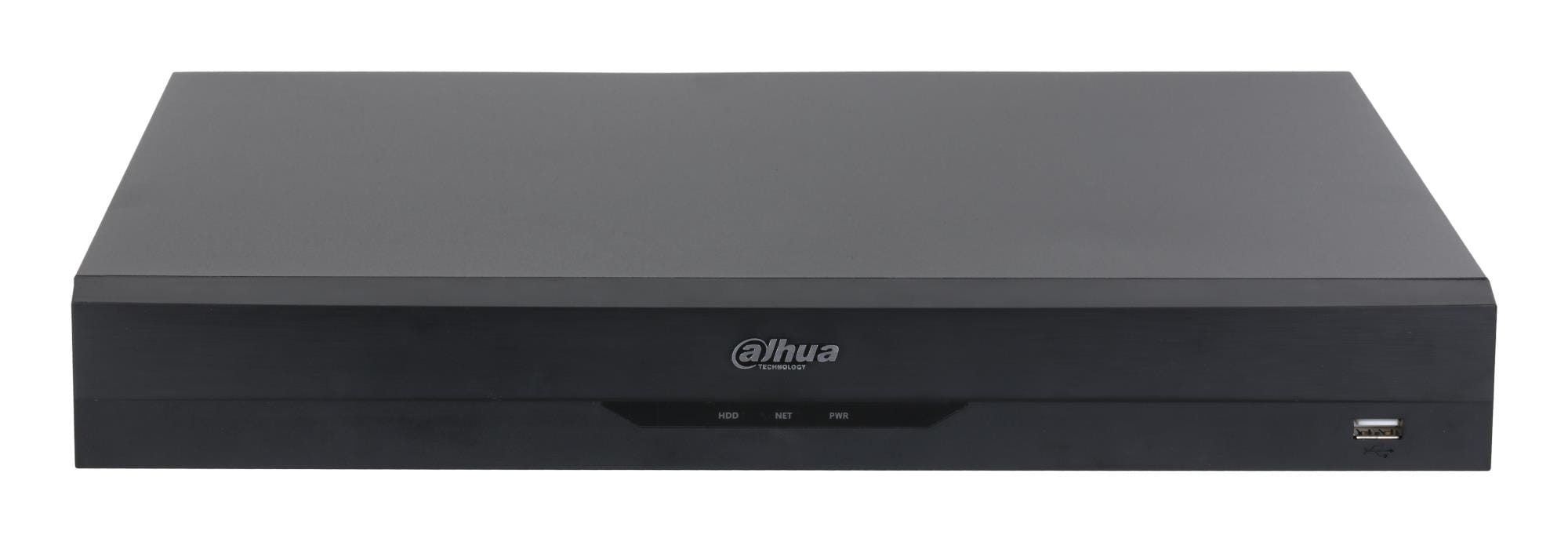

Dahua WizSense 32-Channel 4K Pentabrid XVR (Black) (XVR5232AN-4KL-I3)

  • Resolution: Up to 8 MP (4K) IP inputs
  • Storage: 2x HDDs (Up to 16000 GB)
  • Connectivity: 32-CH BNC & up to 64-CH IP
  • Smart AI: SMD Plus, AcuPick & Face Recognition
  • Fast shipping to Latvia, as well as Estonia and Lithuania. 2-Year Warranty for all clients (Business & Private).

Dahua

530,88€
€438.74 (bez PVN)

Video input channels 32 channels | Ethernet LAN Yes | 2xNumber of HDDs supported | Maximum HDD capacity 16000 GB | Backup function Yes | Multi-display supported Yes | Product colour Black | Power supply type DC | Weight 2.38 kg | Operating temperature (T-T) -10 – 55 °C

  • 32-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder
  • 12-channel AcuPick for analog channels which improves the efficiency of target retrieval
  • 12-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI
  • 6-channel face recognition for analog channels which supports face comparison
  • 32-channel SMD Plus for analog channels or 64-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles
  • 32-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos
  • Supports HDCVI, AHD, TVI, CVBS and IP video input
  • Supports up to 64-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 256 Mbps
  • Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes
  • Smart H.265+ and H.265 dual-stream video compression
SummaryDahua Technology XVR5232AN-4KL-I3/T. Product colour: Black, Maximum video resolution: 3840 x 2160 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Video resolutions: 3840 x 2160,1920 x 1080,1280 x 720. Video input channels: 32 channels. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Supported network protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P, Ethernet LAN data rates: 10,100,1000 Mbit/s. Maximum HDD capacity: 16 TB
Unit Box Height0.425
Unit Box Length0.45
Unit Box Width0.145
BNC input ports32
HDMI ports quantity1
RS-485 ports1
USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
VGA (D-Sub) output ports1
Video input channels32channels
Video RCA outputs1
Ethernet interface typeFast Ethernet/Gigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10/100/1000Mbit/s
Supported network protocolsHTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P
Maximum HDD capacity16000GB
Number of HDDs supported2
Audio formats supportedG.711 A-law/G.711u/PCM
Audio output channels1.0channels
Backup functionYes
Dual stream supportYes
Graphical user interface (GUI)Yes
Maximum video resolution3840 x 2160pixels
Multi-display modes1/16/25/36/4/8/9
Multi-display supportedYes
Operating system installedEmbedded LINUX
Playback modesEvent/General/Instant/Smart/Tag
Product colourBlack
Rack capacity1U
USB connectivityYes
Video compression formatsH.264/H.264+/H.265/H.265+
Video loss detectionYes
Video motion detectionYes
Video resolutions1280 x 720/1920 x 1080/3840 x 2160pixels
DC voltage12V
Power consumption (typical)32W
Power supply typeDC
Depth333.9mm
Height53mm
Weight2378g
Width375mm
Package depth147mm
Package height425mm
Package weight3840g
Package width451mm
Quick start guideYes
Operating relative humidity (H-H)10 – 90%
Operating temperature (T-T)-10 – 55°C
Storage temperature (T-T)-20 – 60°C
Compliance certificatesCE
Units per Shipping Box1
Unit Calculated Volume0.02773cubm
Unit Calculated Weight4.02kg
SKU: DAHUA-XVR5232AN-4KL-I3/T Category:

Based on 0 reviews

0.0 overall
0
0
0
0
0

Only logged in customers who have purchased this product may leave a review.

There are no reviews yet.

Is this the official Global/EU version of the recorder?

Yes, this is the official CE-certified European version. It guarantees secure firmware updates, full compatibility with the global DMSS app, and safe network integration.

How many cameras can I connect to the Dahua XVR5232AN-4KL-I3 in total?

You can connect up to 32 analog cameras via BNC ports. Additionally, the system supports up to 64 IP cameras by disabling the analog channels, allowing a maximum incoming bandwidth of 256 Mbps and resolutions up to 8 MP (4K) per camera.

Can I use older non-Dahua analog cameras with this pentabrid recorder?

Yes. As a Pentabrid XVR, it automatically recognizes and supports multiple video input formats including HDCVI, AHD, TVI, and CVBS. This ensures full compatibility with legacy analog cameras from various manufacturers.

What is the maximum hard drive capacity, and how long will it record?

This recorder supports 2 SATA hard drives with a maximum capacity of up to 16 TB. Recording times vary based on camera count and resolution, but the built-in Smart H.265+ AI coding significantly reduces storage requirements while maintaining high video quality.

How do I configure the AI perimeter protection and tripwire rules for my property?

Setting up AI tripwires and intrusion detection accurately depends on your specific camera angles and environmental factors. For detailed configuration assistance, please contact our technical support at [email protected].

What happens if the device breaks or requires warranty service?

Unlike unverified marketplace sellers, Apsardze24.lv provides a full 2-Year Warranty for all private and business clients. We offer fast, local technical support and shipping across Latvia, Estonia, and Lithuania.

Which mobile app do I use to view the camera feeds remotely?

You can use the official Dahua DMSS app for iOS and Android devices to view live feeds, review playback, and receive instant push notifications. The device supports P2P networking for easy remote setup without the need for complex port forwarding.

Are Face Recognition and AcuPick available on all 32 channels?

No, AI processing resources are shared. You can enable Face Recognition on up to 6 analog channels for face comparison, or use AcuPick on up to 12 analog channels for rapid target retrieval.

Does this 32-Channel XVR support recording audio from the cameras?

Yes, it supports 32-channel audio over coaxial cable. If your compatible analog or IP cameras have built-in microphones, the XVR will record the audio alongside the video stream.

How does SMD Plus prevent false alarms on this WizSense XVR?

Smart Motion Detection (SMD Plus) uses AI to filter out irrelevant movements from leaves, rain, or animals on up to 32 analog channels. It ensures that alarm triggers and push notifications are only sent when a human or vehicle is detected.
