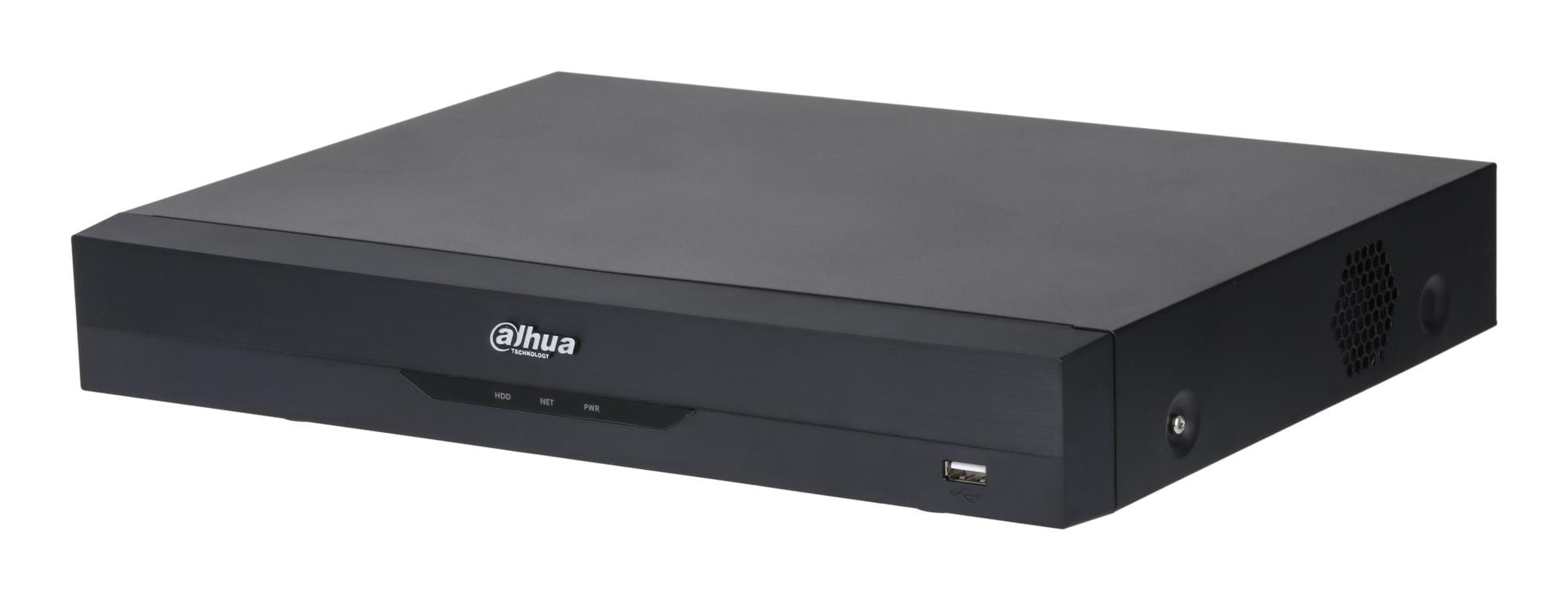

Dahua WizSense 16-Channel 8MP AI Pentabrid DVR (Black) (XVR5116H-4KL-I3)

  • Video: 16CH (Up to 8MP)
  • AI: Face Recognition & SMD Plus
  • Storage: 1x HDD (16TB max)
  • Fast shipping to Latvia, Estonia & Lithuania. 2-Year Warranty.

Dahua

252,35€
€208.55 (bez PVN)

Video input channels 16 channels | Ethernet LAN Yes | 1xNumber of HDDs supported | Maximum HDD capacity 16000 GB | Backup function Yes | Product colour Black | Multi-display supported Yes | Power supply type DC | Weight 1.39 kg | Operating temperature (T-T) -10 – 55 °C

  • 16-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder
  • 8-channel AcuPick for analog channels which improves the efficiency of target retrieval
  • 8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI
  • 4-channel face recognition for analog channels which supports face comparison
  • 16-channel SMD Plus for analog channels or 32-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles
  • 16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos
  • Supports HDCVI, AHD, TVI, CVBS and IP video input
  • Supports up to 32-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps
  • Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes
  • Smart H.265+ and H.265 dual-stream video compression
SummaryDahua Technology XVR5116H-4KL-I3/T. Product colour: Black, Maximum video resolution: 3840 x 2160 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Video resolutions: 3840 x 2160,1920 x 1080,1280 x 720. Video input channels: 16 channels. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Supported network protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P, Ethernet LAN data rates: 10,100,1000 Mbit/s. Maximum HDD capacity: 16 TB
Unit Box Height0.31
Unit Box Length0.375
Unit Box Width0.115
BNC input ports16
HDMI ports quantity1
RS-485 ports1
USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
VGA (D-Sub) output ports1
Video input channels16channels
Video RCA outputs1
Ethernet interface typeFast Ethernet/Gigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10/100/1000Mbit/s
Supported network protocolsHTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P
Maximum HDD capacity16000GB
Number of HDDs supported1
Audio formats supportedG.711 A-law/G.711u/PCM
Audio input channels16channels
Audio output channels1.0channels
Backup functionYes
Dual stream supportYes
Graphical user interface (GUI)Yes
Maximum video resolution3840 x 2160pixels
Multi-display modes1/16/25/36/4/8/9
Multi-display supportedYes
Operating system installedEmbedded LINUX
Playback modesEvent/General/Instant/Smart/Tag
Product colourBlack
Rack capacity1U
USB connectivityYes
Video compression formatsH.264/H.264+/H.265/H.265+
Video loss detectionYes
Video motion detectionYes
Video resolutions1280 x 720/1920 x 1080/3840 x 2160pixels
DC voltage12V
Power consumption (typical)15W
Power supply typeDC
Depth257.1mm
Height55mm
Weight1390g
Width325mm
Package depth119mm
Package height311mm
Package weight2060g
Package width374mm
Quick start guideYes
Operating relative humidity (H-H)10 – 90%
Operating temperature (T-T)-10 – 55°C
Storage temperature (T-T)-20 – 60°C
Compliance certificatesCE
Units per Shipping Box1
Unit Calculated Volume0.01337cubm
Unit Calculated Weight2.03kg
SKU: DAHUA-XVR5116H-4KL-I3/T Category:

Based on 0 reviews

0.0 overall
0
0
0
0
0

Only logged in customers who have purchased this product may leave a review.

There are no reviews yet.

Is this the official Global/EU version, and can I view the cameras on my smartphone?

Yes, this is the official EU version that fully supports firmware updates and the English language. You can view live streams and playback footage securely on your phone using the free Dahua DMSS app via a P2P connection.

Will the Dahua XVR5116H-4KL-I3 DVR work with my older analog cameras and new IP cameras?

Yes, this is a Pentabrid DVR, meaning it supports HDCVI, AHD, TVI, CVBS, and IP video inputs simultaneously. It handles up to 16 analog channels and can be expanded to support up to 32 IP cameras at a maximum resolution of 8MP each.

How does the SMD Plus feature help reduce false alarms on this security system?

Smart Motion Detection (SMD Plus) is available on up to 16 analog channels and filters out irrelevant movements caused by animals, leaves, or weather. It ensures the recorder only triggers alarms when it accurately detects humans or vehicles.

What happens if my Dahua WizSense recorder breaks or stops working?

Unlike buying from unverified overseas marketplaces, Apsardze24.lv provides a full 2-year warranty on this unit. Our official service center is located in Riga, ensuring fast, local technical support and repairs across the Baltics.

Can I integrate custom third-party point-of-sale (POS) systems or unlisted network cameras with this unit?

While standard ONVIF IP cameras are supported, specific POS protocols or non-standard third-party integrations depend heavily on firmware limitations. Because this lacks a definite answer in standard specifications, please direct your exact requirements to our technical support at [email protected].

Does this 8MP Pentabrid DVR connect to my network via Wi-Fi?

The DVR itself must be hardwired directly to your router using its Gigabit Ethernet port for a stable internet connection. However, once on the network, it supports accessing and recording video from compatible Wi-Fi IP cameras.

How much storage capacity does this 16-channel WizSense DVR support, and is a hard drive included?

This DVR supports a single SATA hard drive with a maximum capacity of up to 16TB. Please note that the hard disk drive is not included in the box and must be purchased separately.
