Dahua WizSense 16-Channel 4K Penta-brid AI XVR Recorder (Black) (XVR5216AN-4KL-I3)

Availability:

Out of stock Check availability

Availability:

Out of stock

  • Video: 16-Ch Penta-brid (up to 32 IP at 8MP)
  • Storage: 2x HDD up to 16TB each
  • AI Tech: Face Recognition, Perimeter Protection & SMD Plus
  • Fast shipping to Latvia, as well as Estonia and Lithuania. 2-Year Warranty for all clients (Business & Private).

Dahua

281,74€
€232.84 (bez PVN)

Out of stock

Video input channels 16 channels | Ethernet LAN Yes | 2xNumber of HDDs supported | Maximum HDD capacity 16000 GB | Backup function Yes | Multi-display supported Yes | Product colour Black | Power supply type DC | Weight 1.75 kg | Operating temperature (T-T) -10 – 55 °C

  • 16-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder
  • 8-channel AcuPick for analog channels which improves the efficiency of target retrieval
  • 8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI
  • 4-channel face recognition for analog channels which supports face comparison
  • 16-channel SMD Plus for analog channels or 32-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles
  • 16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos
  • Supports HDCVI, AHD, TVI, CVBS and IP video input
  • Supports up to 32-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps
  • Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes
  • Smart H.265+ and H.265 dual-stream video compression
SummaryDahua Technology XVR5216AN-4KL-I3/T. Product colour: Black, Maximum video resolution: 3840 x 2160 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Video resolutions: 3840 x 2160,1920 x 1080,1280 x 720. Video input channels: 16 channels. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Supported network protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P, Ethernet LAN data rates: 10,100,1000 Mbit/s. Maximum HDD capacity: 16 TB
Unit Box Height0.355
Unit Box Length0.43
Unit Box Width0.135

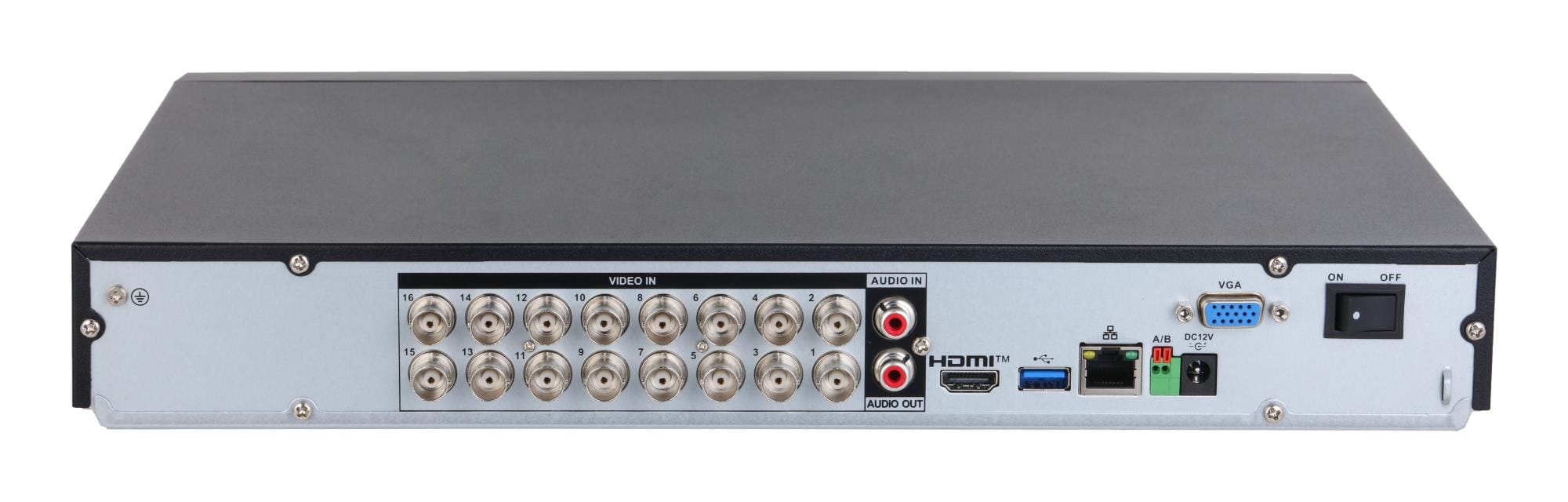

BNC input ports16
HDMI ports quantity1
RS-485 ports1
USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
VGA (D-Sub) output ports1
Video input channels16channels
Video RCA outputs1
Ethernet interface typeFast Ethernet/Gigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10/100/1000Mbit/s
Supported network protocolsHTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P
Maximum HDD capacity16000GB
Number of HDDs supported2
Audio formats supportedG.711/G.711u/PCM
Audio input channels16channels
Audio output channels1.0channels
Backup functionYes
Dual stream supportYes
Graphical user interface (GUI)Yes
Maximum video resolution3840 x 2160pixels
Multi-display modes1/16/25/36/4/8/9
Multi-display supportedYes
Operating system installedEmbedded LINUX
Playback modesEvent/General/Instant/Smart/Tag
Product colourBlack
Rack capacity1U
USB connectivityYes
Video compression formatsH.264/H.264+/H.265/H.265+
Video loss detectionYes
Video motion detectionYes
Video resolutions1280 x 720/1920 x 1080/3840 x 2160pixels
DC voltage12V
Power consumption (typical)15W
Power supply typeDC
Depth289.6mm
Height53mm
Weight1750g
Width375mm
Package depth137mm
Package height356mm
Package weight2900g
Package width427mm
Quick start guideYes
Operating relative humidity (H-H)10 – 90%
Operating temperature (T-T)-10 – 55°C
Storage temperature (T-T)-20 – 60°C
Compliance certificatesCE
Units per Shipping Box1
Unit Calculated Volume0.02061cubm
Unit Calculated Weight3.1kg
SKU: DAHUA-XVR5216AN-4KL-I3/T Category:

Based on 0 reviews

0.0 overall
0
0
0
0
0

Only logged in customers who have purchased this product may leave a review.

There are no reviews yet.

Can I connect wireless Wi-Fi cameras to this recorder?

Yes, it supports accessing Wi-Fi IP cameras over your local network. While the recorder itself must be wired to your router via its Gigabit Ethernet port, it can record footage from wireless cameras operating on the same network.

Does the Dahua XVR5216AN-4KL-I3 support both analog and IP cameras simultaneously?

Yes, this is a Penta-brid recorder. It supports 16 analog channels (HDCVI, AHD, TVI, CVBS) and up to 32 IP camera channels. Each IP channel can handle resolutions up to 8MP, with a maximum incoming network bandwidth of 128 Mbps.

Is this the official EU version that works securely with mobile apps?

Yes, this is the official EU version with full firmware update support. It supports P2P networking and can be securely accessed for live remote viewing using official mobile applications on iOS and Android devices.

Does the unit come with a power supply, or do I need to buy one separately?

The recorder includes a standard 12V DC (15W) power supply in the box to power the XVR unit itself. Please note that you will still need separate power supplies or a power distribution box for your connected cameras.

Will this recorder send me push notifications for every leaf blowing in the wind?

No. It features 16-channel SMD Plus (Smart Motion Detection) and 8-channel perimeter protection powered by AI. This technology accurately filters out irrelevant movements from weather or animals, only triggering alarms for actual humans and vehicles.

How many individual faces can I store for the face recognition feature?

The device features 4-channel face recognition for analog channels, allowing real-time face comparison against a database. Because the maximum number of stored faces can depend on your active firmware version, please direct this specific query to our technical support at [email protected].

What happens if the recorder breaks or stops functioning?

Unlike buying from unverified marketplaces, Apsardze24.lv offers a full 2-Year Warranty for both private and business clients. Our dedicated service center is located in Riga, ensuring fast troubleshooting, repairs, and support across the Baltics.

How much storage capacity does this 16-channel 4K XVR support, and are hard drives included?

Hard drives are not included in the box. The unit supports up to two internal SATA HDDs with a maximum capacity of 16TB each, allowing for up to 32TB of total video storage.

Can I record audio from my security cameras using this device?

Yes, the recorder supports 16-channel audio over coaxial cable. If you use compatible analog cameras with built-in microphones, the audio is seamlessly transmitted over the same coax cable without needing extra wiring.
