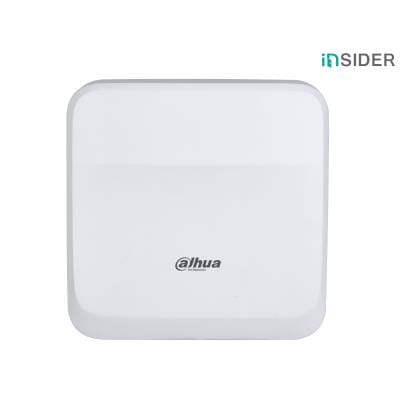

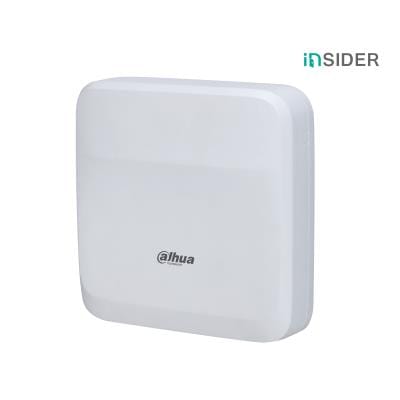

Dahua Web-Based 2-Door Access Controller with PoE & Wiegand/RS-485 Support (White) (ASC3202B)

Availability:

Out of stock Check availability

Availability:

Out of stock

  • Type: Web-Based 2-Door Controller (Master/Sub Modes).
  • Capacity: 1,000 Users, 3,000 Fingerprints, 5,000 Cards.
  • Connectivity: TCP/IP, Standard PoE, Wiegand & RS-485.
  • Features: Global Anti-passback, Interlock, Alarm Linkage.
  • Fast shipping to Latvia, as well as Estonia and Lithuania. 2-Year Warranty for all clients (Business & Private).

Dahua

241,66€
€199.72 (bez PVN)

Out of stock

Operating temperature range –10 °C to +55 °C (+14 °F to 131 °F) | Colour White

Access Controller

> Built-in Web server, features main and sub control modes.
> The main control mode offers access control Platform functions,can connect with and manage up to 19 sub controllers. The sub-control modes can be added to multiple platforms.
> Supports 1000 users (main control mode), 3000 fingerprints, 5000 Bluetooth cards (main control mode) and 300,000 records.
> Accesses card readers through Wiegand and RS-485 protocols.
> Supports TCP and IP connection, and standard PoE.
> Supplies power to the lock through its 12 VDC output power supply, which has a maximum output current of 1000 mA.
> Supports configuring the hardware I/O port and exporting configuration diagrams.
> Retains stored data even while powered off.
> Role management.
> Supports multiple advanced access control functions, such as first-person unlock, multi-person unlock, global anti-passback, global multi-door interlock and global external alarm.

Unit Box Height0.09
Unit Box Length0.26
Unit Box Width0.245
ModelASC3202B
Operating temperature range–10 °C to +55 °C (+14 °F to 131 °F)
ColourWhite
Dimensions186.4 × 185.8 × 58.3mm
Units per Shipping Box1
Unit Calculated Volume0.005733cubm
Product Net Weight0.53kg
Unit Calculated Weight0.99kg
SKU: DAHUA-ASC3202B Category:

Based on 1 review

0.0 overall
1
0
0
0
0

Only logged in customers who have purchased this product may leave a review.

  1. Sarah Jenkins –

    The built-in web server on this Dahua controller is a game changer—setup was a breeze. I love that it supports PoE, which really cut down on the cabling mess. It handles our 2-door setup perfectly. Also, big thanks to the team at Apsardze24 for the fast shipping!

    Sarah Jenkins –

Can I expand the system to control more than two doors?

Yes, when configured in "Main Control Mode," the ASC3202B can manage up to 19 additional sub-controllers. This enables you to scale your access control system to cover multiple doors while managing them from a single interface.

Does the ASC3202B support anti-passback functionality?

Yes, it supports global anti-passback, multi-door interlock, and multi-person unlock functions. These advanced features are essential for high-security environments to prevent credential sharing and control entry sequences.

How many users and cards can the ASC3202B store locally?

In Main Control Mode, the device stores up to 1,000 users, 3,000 fingerprint templates, and 5,000 card records. It also retains a log of the last 300,000 access events directly on the device.

Does the Dahua ASC3202B require dedicated PC software to configure?

No, this model features a built-in web server. You can manage users, access rules, and network settings directly through a web browser, eliminating the need for a dedicated PC running management software 24/7.

What happens if the network connection to the ASC3202B is lost?

The controller is designed to operate offline. It retains all user data and permissions locally, allowing it to continue granting or denying access and recording events even without an active network connection.

What warranty does Apsardze24.lv offer for this Dahua controller?

Unlike buying from general marketplaces, Apsardze24.lv offers a **2-Year Warranty** for all business and private clients. Our service center is located in **Riga**, ensuring fast local support and warranty handling.

What types of card readers are compatible with the ASC3202B?

The controller supports both Wiegand and RS-485 protocols. This allows you to use a wide variety of third-party Wiegand readers or Dahua's specific RS-485 readers for encrypted, secure communication over longer distances.

Can I power the ASC3202B controller and my locks using PoE?

The controller supports standard PoE to power the unit itself and provides a 12V DC output (max 1000mA) for locks. However, for high-power magnetic locks, we recommend calculating the total power budget or using a separate power supply. If unsure, contact technical support at [email protected].

Is the Dahua ASC3202B suitable for outdoor installation?

The operating temperature range is –10 °C to +55 °C, and the unit is typically designed for indoor surface mounting. For outdoor use, the controller must be installed inside a weatherproof (IP65 rated) enclosure to protect it from moisture.
