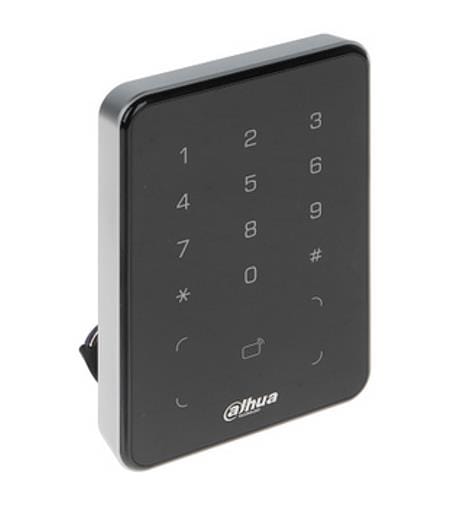

Dahua Waterproof Mifare Access Reader RS485/Wiegand IP66 Black (ASR2101A)

Availability:

Out of stock Check availability

Availability:

Out of stock

  • Reader Type: Contactless Mifare IC Card (13.56MHz)
  • Communication: RS-485 & Wiegand Protocol
  • Durability: IP66 Waterproof, -30°C to +70°C
  • Security: Anti-tamper Alarm & Watchdog
  • Fast shipping to Latvia, as well as Estonia and Lithuania. 2-Year Warranty for all clients (Business & Private).

Dahua

34,61€
€28.60 (bez PVN)

Out of stock

Operating temperature range –30°C to +70°C | Power supply requirements 12V 0.5A DC

> PC material, acrylic panel and IP66, suitable for indoor and outdoor use
> Support contactless recognition of IC card (Mifare card)
> Support card unlock
> Support RS485 and Wiegand communication
> upport buzzer and indicator prompt
> Support anti-tampering alarm
> The built-in watchdog can detect and control abnormal operation status of the equipment and perform recovery processing to ensure the long- term operation of the equipment
> All connection ports have overcurrent and overvoltage protection


Unit Box Height0.075
Unit Box Length0.19
Unit Box Width0.165
ModelASR2101A
Operating temperature range–30°C to +70°C
Power supply requirements12V 0.5A DC
Dimensions123 mm × 86 mm × 15 mm
Units per Shipping Box1
Unit Calculated Volume0.002351cubm
Product Net Weight0.2kg
Unit Calculated Weight0.35kg
SKU: DAHUA-ASR2101A Category:

Based on 1 review

0.0 overall
1
0
0
0
0

Only logged in customers who have purchased this product may leave a review.

  1. Matthew Richardson –

    I installed this Dahua reader at our back entrance, and it works flawlessly. The IP66 rating is a lifesaver for our rainy weather, and the acrylic design looks really modern. Great service from the shop as well, everything arrived on time. Highly recommended for outdoor access control.

    Matthew Richardson –

Does the package include a 12V power adapter?

No, the power supply unit (PSU) is not included in the box. The reader requires **12V 0.5A DC** power, which is typically supplied directly by the access controller or a separate DIN rail power supply.

Is the Dahua ASR2101A suitable for installation in exposed outdoor areas?

Yes, the device is rated **IP66 Waterproof** and operates in temperatures from -30°C to +70°C, making it fully capable of withstanding harsh Baltic weather conditions.

What warranty coverage is provided for this access reader?

Unlike many marketplace sellers, **Apsardze24.lv** provides a full **2-Year Warranty** for all clients. Our service center is located in **Riga**, ensuring fast local support and replacements if needed.

Does the ASR2101A store user data or work as a standalone controller?

No, this is strictly a slave reader with **zero internal storage**. It must be connected to an access control panel (like Dahua ASC series) which manages the user database and permissions.

Will the ASR2101A reader work with my existing 125kHz Proximity cards?

No, this model supports **13.56MHz Mifare IC cards** only. It is not compatible with older 125kHz (EM) frequency cards or key fobs.

Can I connect this reader to a non-Dahua access controller?

Yes, the ASR2101A supports the standard **Wiegand 34 protocol**, allowing integration with most third-party access controllers, in addition to the proprietary RS-485 connection for Dahua systems.

How can I disable the beep sound or change the LED configuration?

Configuration of the buzzer and LED indicators usually depends on the settings of your main access controller. For specific programming assistance with your setup, please contact our technical support at [email protected].
