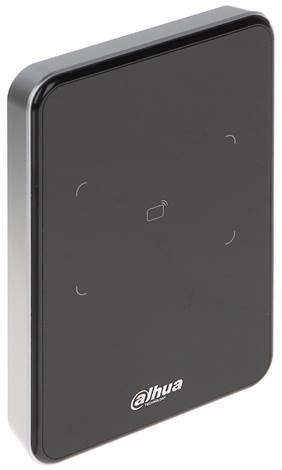

Dahua Waterproof Access Reader Mifare 13.56MHz, Wiegand/RS485, IP66 Outdoor Black (ASR2100A)

Availability:

Out of stock Check availability

Availability:

Out of stock

  • Reader Type: Contactless Mifare IC Card (13.56MHz)
  • Interface: RS485 & Wiegand (Standard)
  • Durability: IP66 Weatherproof, -30°C to +70°C
  • Security: Anti-tamper alarm & Built-in Watchdog
  • Fast shipping to Latvia, as well as Estonia and Lithuania. 2-Year Warranty for all clients (Business & Private).

Dahua

32,60€
€26.94 (bez PVN)

Out of stock

Operating temperature range –30°C to +70°C | Power supply requirements 12V 0.5A DC

> PC material, acrylic panel and IP66, suitable for indoor and outdoor use
> Support contactless recognition of IC card (Mifare card)
> Support card unlock
> Support RS485 and Wiegand communication
> Support buzzer and indicator prompt
> Support anti-tampering alarm
> The built-in watchdog can detect and control abnormal operation status of the equipment and perform recovery processing to ensure the long- term operation of the equipment
> All connection ports have overcurrent and overvoltage protection


Unit Box Height0.075
Unit Box Length0.19
Unit Box Width0.165
ModelASR2100A
Operating temperature range–30°C to +70°C
Power supply requirements12V 0.5A DC
Dimensions123 mm × 86 mm × 15 mm
Units per Shipping Box1
Unit Calculated Volume0.002351cubm
Product Net Weight0.2kg
Unit Calculated Weight0.35kg
SKU: DAHUA-ASR2100A Category:

Based on 1 review

0.0 overall
1
0
0
0
0

Only logged in customers who have purchased this product may leave a review.

  1. Sarah Jenkins –

    I installed this Dahua reader at our office’s back entrance, and it looks sleek with the black acrylic panel. It’s been pouring rain lately, and the IP66 rating definitely holds water—literally. Works perfectly with our existing Mifare cards. Fast delivery from apsardze24.lv was the cherry on top!

    Sarah Jenkins –

Will the Dahua ASR2100A work with my existing 125kHz Proximity cards?

No, this device is a Mifare reader operating at 13.56MHz. It is not compatible with older 125kHz (EM) cards, so please ensure your key fobs match the 13.56MHz frequency.

Does the ASR2100A store user data or transaction logs internally?

No, this reader does not store user data locally. It scans the card and immediately transmits the ID to the main controller for verification and logging.

Does the package include a 12V power adapter?

No, a power supply is not included in the box. The unit requires 12V 0.5A DC, which is typically powered directly from your access control panel.

Is the Dahua ASR2100A suitable for outdoor installation in the Baltics?

Yes, it is rated IP66 for water and dust resistance and operates effectively in temperatures ranging from -30°C to +70°C, handling harsh outdoor conditions.

Can I use this device as a standalone lock without a separate controller?

No, the ASR2100A is strictly a card reader. It must be connected to a separate access controller (via RS485 or Wiegand) to process permissions and unlock doors.

What warranty coverage is provided for this Dahua reader?

Buying from Apsardze24.lv ensures a 2-Year Warranty for both business and private clients. Our warranty service center is located in Riga for fast support.

What happens if someone tries to forcibly remove the reader from the wall?

The device features a built-in anti-tamper alarm. If the reader is dismantled or removed from the wall, it triggers an alarm signal to the connected controller.

Is this reader compatible with non-Dahua access controllers?

Yes, it supports the standard Wiegand protocol for third-party integration. If you are unsure about specific wiring compatibility, please contact technical support at [email protected].
