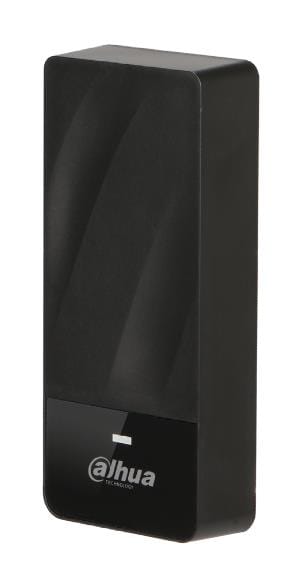

Dahua Water-proof RFID Reader 13.56MHz Mifare Wiegand/RS-485 Black (ASR1200E)

  • 13.56MHz Mifare, Wiegand 34/26, RS-485
  • Water-proof Design (-30°C to +60°C)
  • Fast shipping to Latvia, Estonia, Lithuania. 2-Year Warranty.

Dahua

16,58€
€13.70 (bez PVN)

Operating temperature range -30°C to +60°C | Power supply requirements 9-15VDC/100mA | Colour Black

> Wiegand34(26 optional) bits RS-485 protocol
> 13.56MHz(Mifare)
> Water-proof design
> Red, blue and green indicator LEDs
> Surface mounted installation


Unit Box Height0.062
Unit Box Length0.125
Unit Box Width0.095
ModelASR1200E
Read format13.56MHz
Read range3-6cm (max.)
Operating temperature range-30°C to +60°C
Power supply requirements9-15VDC/100mA
ColourBlack
Dimensions96mm×43mm×17mm
Units per Shipping Box1
Unit Calculated Volume0.0007363cubm
Product Net Weight0.1kg
Unit Calculated Weight0.13kg
SKU: DAHUA-ASR1200E Category:

Based on 1 review

0.0 overall
1
0
0
0
0

Only logged in customers who have purchased this product may leave a review.

  1. Sarah Jenkins –

    Picked up this Dahua reader for an outdoor gate project, and it’s been a champ in the rain. The waterproof design is legit. It reads Mifare cards quickly, and the LED indicators are distinct. Really happy with the quick delivery from Apsardze24 as well. A solid, compact unit.

    Sarah Jenkins –

What warranty and support options are available for this product?

Unlike many marketplaces, Apsardze24.lv provides a full 2-Year Warranty with a local service center in Riga to handle any hardware issues quickly.

Is a power supply included in the box with the reader?

No, a power supply unit is not included. The reader typically draws power (9-15VDC/100mA) directly from the connected access controller.

Who can I contact if I am unsure about the wiring configuration?

Please consult the datasheet for the pinout diagram; if you still require assistance, contact our technical support at [email protected].

What specific type of key cards does this reader support?

The reader works exclusively with 13.56MHz Mifare cards and fobs. It is not compatible with 125kHz EM or HID proximity cards.

Can I install the Dahua ASR1200E outdoors in freezing conditions?

Yes, the unit features a water-proof design and is rated to operate in temperatures from -30°C to +60°C, making it suitable for Baltic winters.

How do I connect this reader to a third-party controller?

You can connect it using the standard Wiegand 34 protocol (compatible with most systems). It also supports RS-485 for integration with Dahua controllers.

Does the ASR1200E function as a standalone door controller?

No, this device is a slave reader and cannot control locks directly. It must be wired to a separate access control panel via RS-485 or Wiegand to operate.

What is the maximum read range for cards on this device?

The detection range is approximately 3cm to 6cm, though this may vary slightly depending on the installation environment and card quality.

Will this reader fit on a narrow door frame or mullion?

Yes, the ASR1200E has a slim profile with dimensions of 96mm × 43mm × 17mm, allowing for easy surface mounting on narrow frames.
