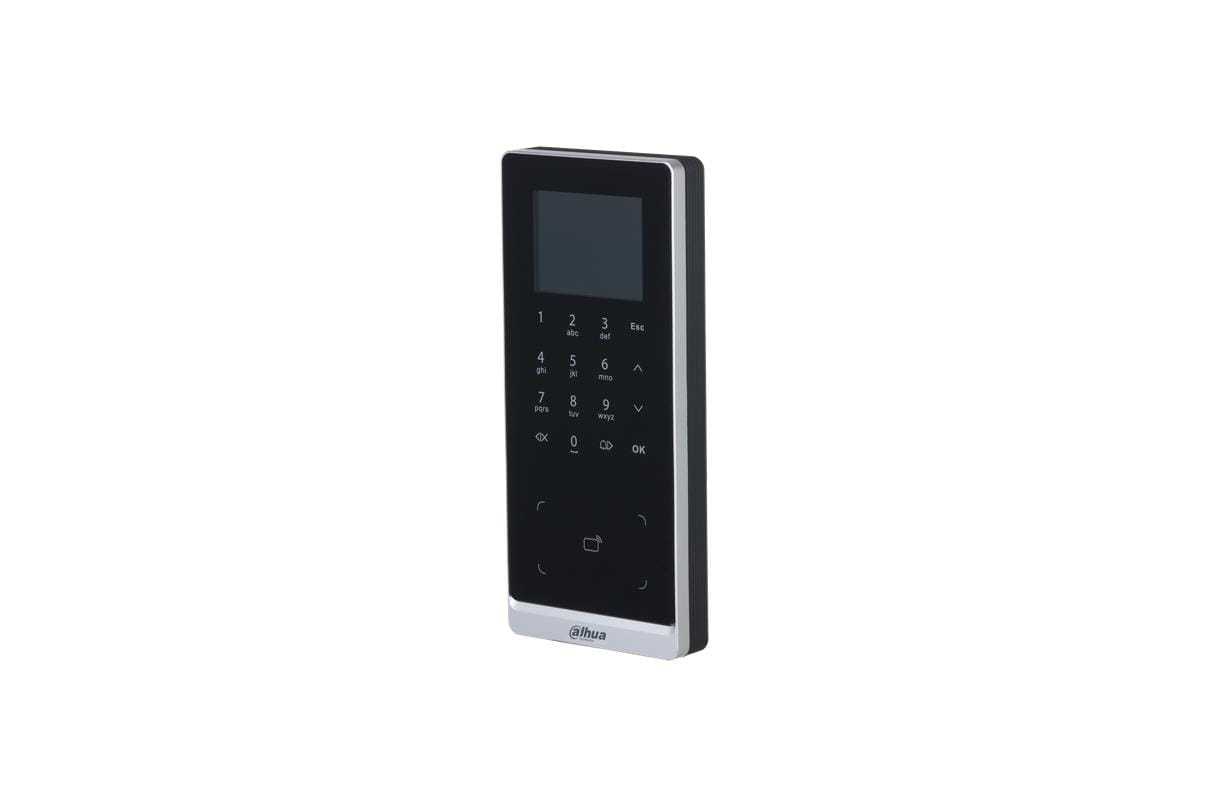

Dahua Smart Access Control Terminal with Wi-Fi, Mifare & Pin, NFC, IP65 (ASI2201H-W)

  • Tech: Wi-Fi, TCP/IP, Mifare (13.56MHz), NFC, 2.4" LCD.
  • Capacity: 30,000 Users, 30,000 Cards, 150,000 Records.
  • Durability: IP65 Weatherproof, -30°C to +65°C.
  • Security: Tamper, Duress, and Intrusion Alarms.
  • Fast shipping to Latvia, as well as Estonia and Lithuania. 2-Year Warranty for all clients (Business & Private).

Dahua

149,48€
€123.54 (bez PVN)

12 V DC, 1 A

Access Standalone
> PC + ABS, suitable for indoor and outdoor use.
> 2.4" LCD screen with a resolution of 240 × 320.
> Operating temperature: –30 °C to +65 °C (–22 °F to +149 °F).
> IP65 rated (silicone sealant is needed, see Quick Start Guide).
> Option to switch between reader and controller mode for added
> 30,000 users, 30,000 cards (13.56 MHz Mifare), 30,000 passwords, 50 admin accounts, and 150,000 records.
> Card/remote/password unlock and unlock through their combinations.
> IC card and NFC technology.
> Brand-new design with a slim, elegant structure.
> Supports access control security module expansion to avoid tampering, increasing access safety.
> Supports duress alarm, tamper alarm, intrusion alarm, door contact timeout alarm, illegal card exceeding threshold alarm, illegal password exceeding threshold alarm and external alarm.
> Supports guest users, patrol users, blocklist users, VIP users, general users, and others.
> TCP/IP and Wi-Fi communication; auto registration, P2P registration, and DHCP.
> Supports PC/mobile web clilent.
> Supports online update and USB update.
> Doorbell function.
> Audio prompts.
> Compatible with SmartPSS-AC and DSS Pro.


Unit Box Height0.07
Unit Box Length0.25
Unit Box Width0.145
Power supply requirements12 V DC, 1 A
Dimensions183 × 80 × 25.5 mm
Units per Shipping Box1
Unit Calculated Volume0.002537cubm
Product Net Weight0.262kg
Unit Calculated Weight0.52kg
SKU: DAHUA-ASI2201H-W Category:

Based on 1 review

0.0 overall
1
0
0
0
0

Only logged in customers who have purchased this product may leave a review.

  1. Sarah Jenkins –

    I picked up this Dahua terminal for our office entrance. The slim design looks professional, and the Wi-Fi setup saved us from running extra cables. It works perfectly with the mobile web client for managing access. Great service from the shop!

    Sarah Jenkins –

Will my existing 125kHz proximity key fobs work with this terminal?

No, the ASI2201H-W exclusively supports 13.56MHz Mifare cards and NFC technology. It is not compatible with older 125kHz EM frequency fobs.

Can I connect this access terminal to the network via Wi-Fi?

Yes, this model supports Wi-Fi connectivity. This allows for installation in locations where running a wired TCP/IP Ethernet cable is difficult.

Can I unlock the door remotely using my smartphone?

Yes, the device is compatible with the DMSS mobile app. This allows you to manage users, view logs, and unlock the door remotely via your phone.

How do I perform a hard reset if I lose the admin password?

Resetting the admin password often requires a specific XML file exchange or tool depending on the firmware version. Please contact our technical support at [email protected] for the correct procedure.

What warranty conditions apply to this Dahua terminal?

Unlike many dropshippers, Apsardze24.lv provides a full 2-year warranty for both private and business clients, with a local service center in Riga to ensure quick support.

Does the ASI2201H-W box include a power adapter?

No, the manufacturer does not include a power supply in the box. You will need a separate 12V DC, 1A power adapter to operate this unit.

How many entry logs does the system retain before it needs clearing?

The terminal has a high-capacity internal memory that stores up to 150,000 access records and 30,000 user profiles locally.

Is the Dahua ASI2201H-W suitable for outdoor installation in winter?

Yes, it is rated IP65 and operates efficiently in temperatures ranging from -30°C to +65°C. For waterproofing, you must apply silicone sealant to the wiring backplane during installation.
