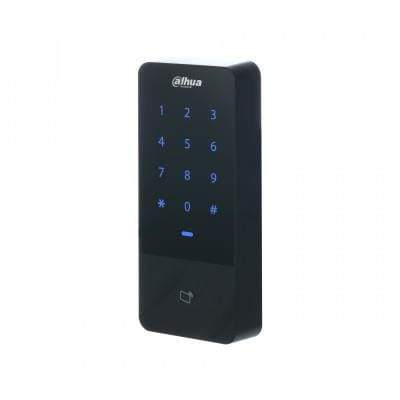

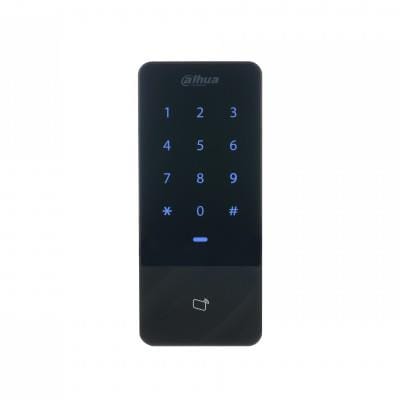

Dahua RFID Access Controller, Touch Keypad, IC Card, TCP/IP, IP66 Black (ASI1201E-V1)

  • Capacity: 30,000 Users, 30,000 Cards, 60,000 Records.
  • Access: IC Card, Password, Touch Keypad.
  • Build: IP66 Water-proof, PC Material.
  • Connection: TCP/IP, RS-485, Wiegand.
  • Fast shipping to Latvia, as well as Estonia and Lithuania. 2-Year Warranty.

Dahua

48,63€
€40.19 (bez PVN)

Colour Black

> Made from PC materials and composite panels.
> Supports 30,000 users, 30,000 passwords, 30,000 cards, and 60,000 records.
> Offers multiple unlock methods including card and password. You can also combine them to create your own personal unlock methods.
> Provides touch keypad with backlighting.
> Contactless card reading for IC cards.
> Supports RS-485 communication and Wiegand communication.
> Buzzer and indicator light.
> Tamper alarm.
> Controller mode and card reader mode.
> Offers multiple types of alarms such as duress, intrusion, unlock timeout, and excessive use of illegal card.
> Cards can be issued to many types of users such as normal, VIP, patrol, guest, and blocklist users.
> Supplies power to 1 lock (12 V, 1 A or lower) or 1 card reader (12 V, 200 mA or lower).
> Online update.
> TCP/IP connection and auto registration.
> IP66 rated.
> Ideal for use outdoors.
> Surface mount.
> Compatible with the platforms of SmartPSS Lite and DSS Pro.


Unit Box Height0.13
Unit Box Length0.195
Unit Box Width0.055
ModelASI1201E-V1
ColourBlack
Dimensions142 mm × 62 mm × 23 mm
Units per Shipping Box1
Unit Calculated Volume0.001394cubm
Product Net Weight0.1kg
Unit Calculated Weight0.29kg
SKU: DAHUA-ASI1201E-V1 Category:

Based on 1 review

0.0 overall
1
0
0
0
0

Only logged in customers who have purchased this product may leave a review.

  1. Thomas Wright –

    I installed this Dahua controller for our back gate. The IP66 rating is a lifesaver for outdoor use, and the black design looks very professional. The touch keypad is responsive even at night. Shipping was fast, and the setup via TCP/IP was straightforward. Highly recommended!

    Thomas Wright –

Which software platforms are supported for managing this IP access controller?

The device connects via TCP/IP and is fully compatible with SmartPSS Lite and DSS Pro platforms for configuration and user management.

What should I do if the device requires technical service or repair?

Buying from Apsardze24.lv ensures you are covered by a 2-Year Warranty. We provide local technical support and service based in Riga for customers across the Baltics.

What is the maximum user and event log capacity for this standalone unit?

The device supports up to 30,000 users (cards/passwords) and stores up to 60,000 historical access records locally.

Which specific type of RFID cards are compatible with the ASI1201E-V1?

This device strictly requires 13.56MHz IC cards (Mifare). It is NOT compatible with standard 125kHz EM cards or key fobs, so please ensure you purchase the correct frequency.

Does this access controller come with a power supply unit in the box?

No, the power supply is not included in the manufacturer's box. You will need a separate 12V DC power adapter to operate this unit.

Is the ASI1201E-V1 keypad suitable for outdoor installation exposed to rain?

Yes, this unit is IP66 rated, making it fully water-proof and dust-proof. It is built with durable PC materials designed to withstand outdoor environments.

Can this device function as a slave reader for a third-party security controller?

Yes, it features both 'Controller mode' and 'Card reader mode.' You can connect it to a third-party controller via Wiegand or RS-485 protocols.
