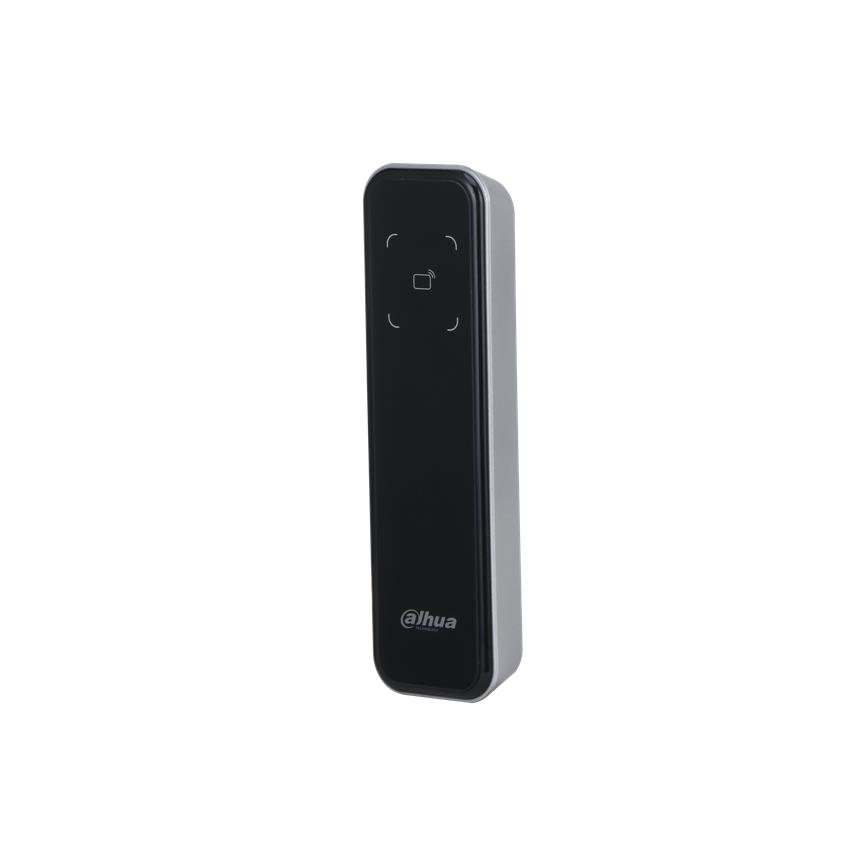

Dahua Bluetooth & Mifare Access Reader IP66 Outdoor (Black) (ASR2200A-B)

  • Dual Technology: Supports Mifare IC Cards (13.56MHz) and Bluetooth mobile unlocking.
  • Robust Design: IP66 Weatherproof rating with tempered glass & PC housing (-30°C to +70°C).
  • Connectivity: Flexible communication via RS-485 and Wiegand ports.
  • Smart Features: Anti-tamper alarm, watchdog stability, and LED/Buzzer prompts.
  • Fast shipping to Latvia, as well as Estonia and Lithuania. 2-Year Warranty for all clients (Business & Private).

Dahua

50,64€
€41.85 (bez PVN)

Operating temperature range –30 °C to +70 °C | Power supply requirements 12 VDC, 0.5 A

Dahua Card Swiping, Bluetooth card Reader
> PC material, tempered glass panel and IP66, suitable for indoor and outdoor use.
> Contactless card reading for IC cards (Mifare cards).
> Unlock through card swiping and Bluetooth.
> Communicates through the RS-485 port, Wiegand port, and Bluetooth.
> Prompts using the buzzer and indicator light.
> Supports the anti-tampering alarm.
> The built-in watchdog program can detect and control the abnormal operation status of the equipment and perform recovery processing to ensure the long-term operation of the equipment.
> All the connection ports have overcurrent and overvoltage protection.
> Works with the DMSS mobile client and ASC3202B.


Operating temperature range–30 °C to +70 °C
Power supply requirements12 VDC, 0.5 A
Dimensions135 × 40 × 15 mm
Unit Calculated Volume0.0008512cubm
Product Net Weight0.12kg
Unit Calculated Weight0.16kg
SKU: DAHUA-DHI-ASR2200A-B Category:

Based on 1 review

0.0 overall
1
0
0
0
0

Only logged in customers who have purchased this product may leave a review.

  1. Sarah Jenkins –

    I bought this for my office gate and I’m impressed. The tempered glass looks sleek and feels sturdy enough for our weather. Setting it up with the DMSS app was a breeze, and I love the Bluetooth unlocking feature—no more digging for cards! Great service from apsardze24.lv as well.

    Sarah Jenkins –

What kind of warranty does Apsardze24.lv offer on this product?

We provide a comprehensive 2-Year Warranty for the ASR2200A-B. Unlike international marketplaces, our warranty service is handled locally in Riga, ensuring quick resolution for any hardware issues.

What is the benefit of using RS-485 over Wiegand for connection?

Using RS-485 allows for longer cable distances (up to 1000m) and encrypted communication when paired with Dahua controllers. Wiegand is a standard unencrypted protocol useful for third-party compatibility.

Does this reader support standard 125kHz proximity cards?

No, the ASR2200A-B is designed exclusively for 13.56MHz Mifare IC cards. It cannot read older 125kHz ID or HID frequencies.

Can I install this reader on a narrow metal door frame?

Yes, with dimensions of 135mm × 40mm × 15mm, this slim-profile reader is specifically designed for surface mounting on narrow surfaces like door frames and mullions.

Can the ASR2200A-B operate as a standalone access controller?

No, this device is strictly an access reader. It must be connected to a compatible access controller (such as the Dahua ASC3202B) via RS-485 or Wiegand protocols to process permissions and control the lock.

Which mobile app allows Bluetooth unlocking with this reader?

To utilize the Bluetooth unlocking feature, you must use the Dahua DMSS mobile client. This allows authorized users to unlock the door using their smartphone within close range.

Is a power supply included in the ASR2200A-B box?

No, a power supply unit is not included. The reader typically draws its 12V DC power directly from the access controller or requires a separate external power source.

How does the anti-tamper feature work?

The reader includes a built-in tampering alarm. If the device is forcibly removed from the wall, it triggers an alarm signal that is sent immediately to the connected access controller.

Is the ASR2200A-B suitable for outdoor installation in Baltic winters?

Yes, the unit has an IP66 weatherproof rating and is built with tempered glass and PC material. It is rated to operate efficiently in temperatures ranging from -30°C to +70°C.

I am unsure if my current controller supports this reader. Who can I ask?

If you are uncertain about compatibility with your existing system, please send your controller model number to our technical support at [email protected] for verification.
