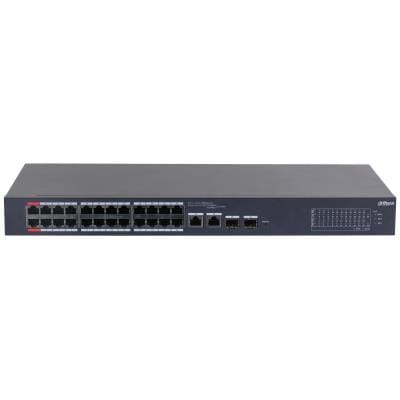

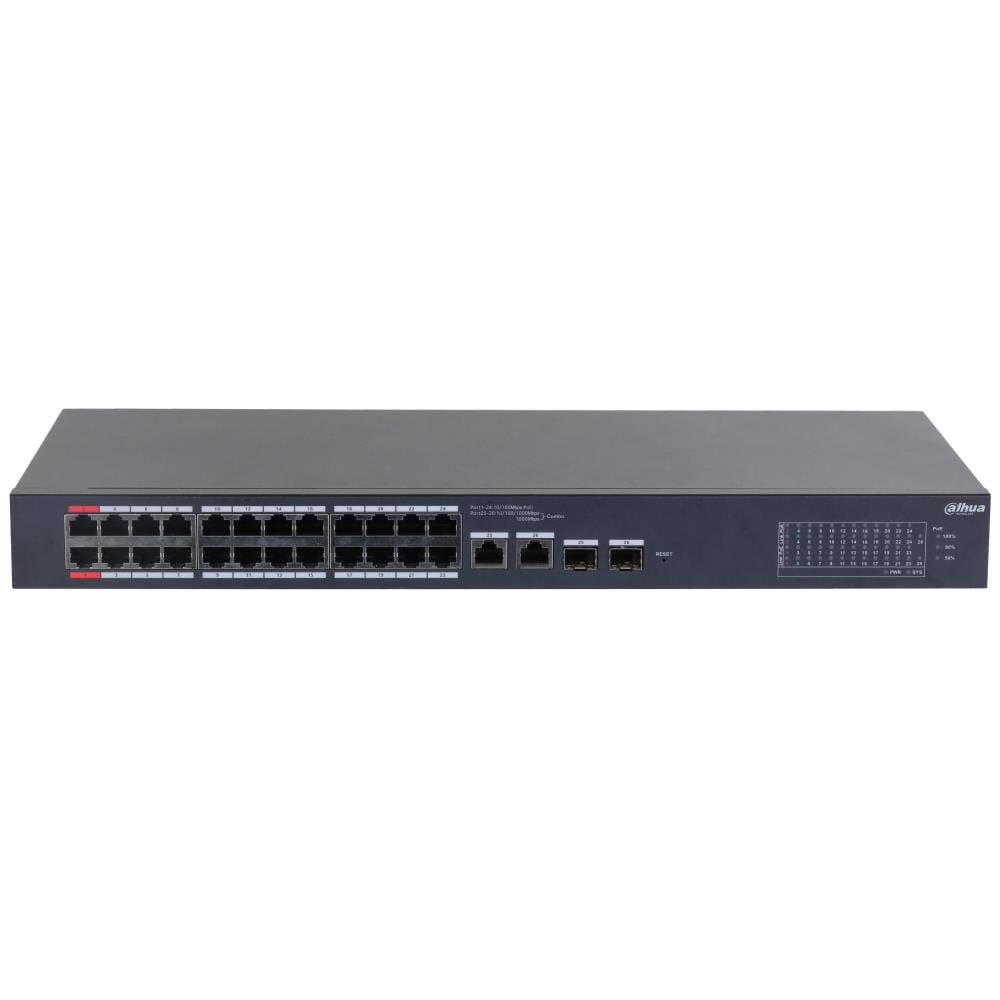

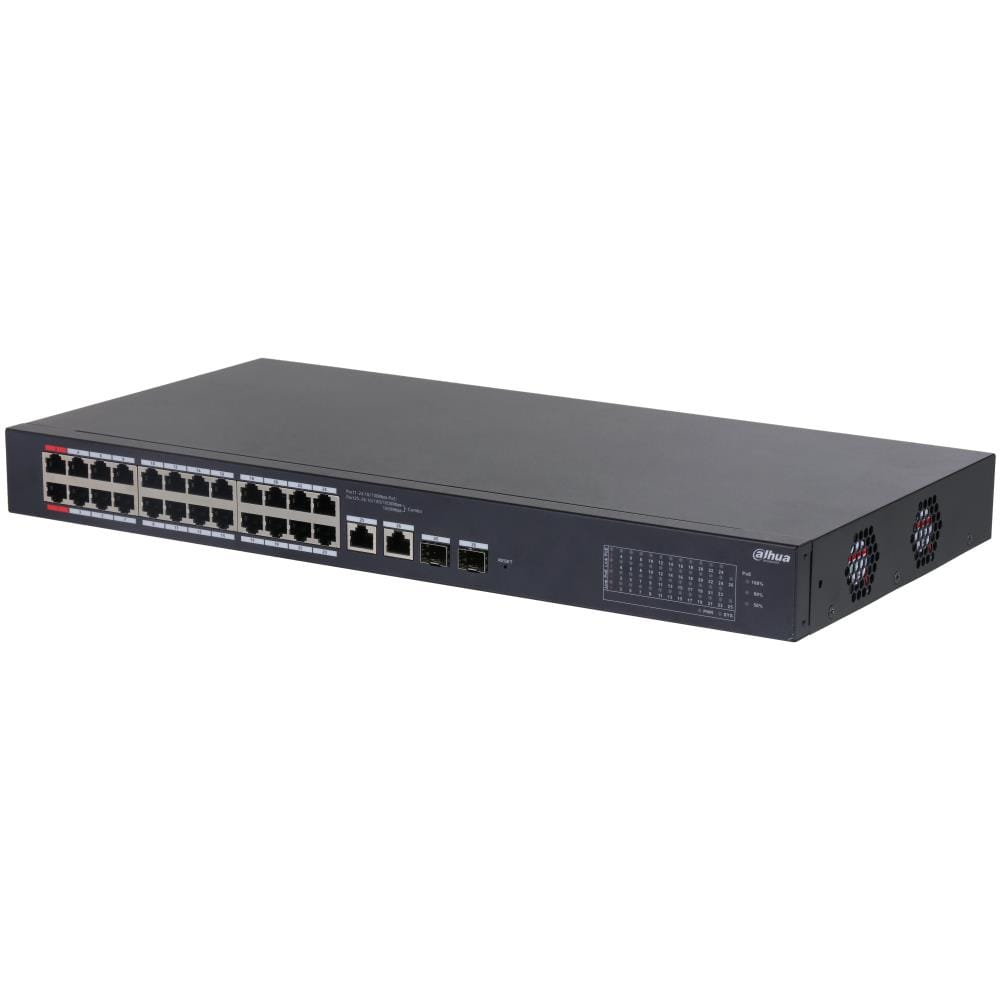

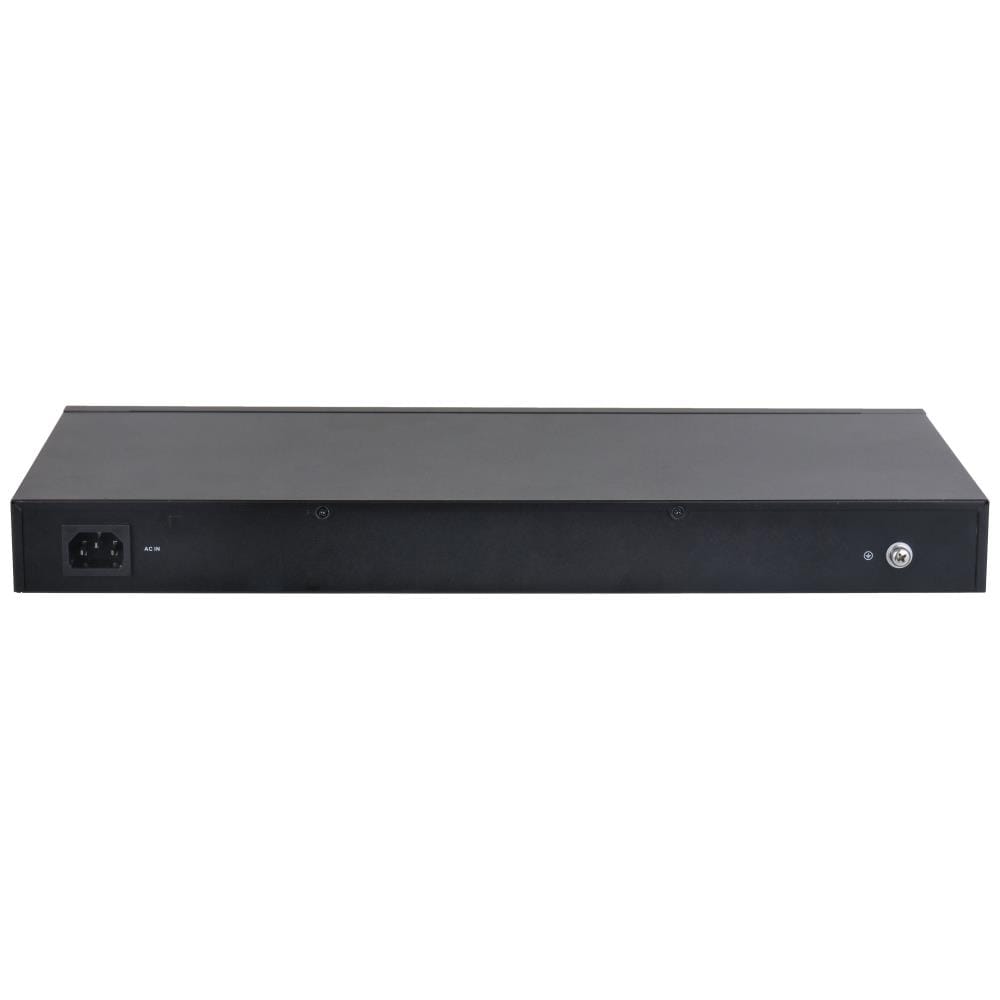

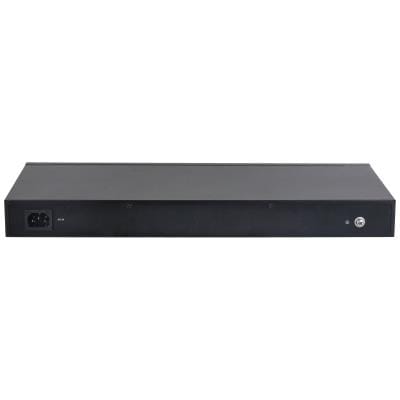

CS4226-24ET-240 Dahua 26-Port 240W Cloud Managed PoE Switch (1U Rackmount)

  • Ports: 24x 10/100 PoE + 2x Gigabit Combo
  • Power: 240W Budget, BT 90W Support
  • Management: Cloud-based via DoLynk Care
  • Warranty: 2-Year Warranty for all clients
  • Delivery: Fast shipping to Latvia, Estonia, and Lithuania.

Dahua

151,49€
€125.20 (bez PVN)

PoE ports 24 | PoE power budget 240 Watts | Switching capacity 8.8 Gbps | Forwarding rate 6.55 Mpps | Power supply Inbuilt | Dimensions 440 mm × 220 mm × 44 mm | Product Net Weight 2.47 kg

CS4226-24ET-240

26-Port Cloud Managed Desktop Switch with 24-Port PoE (240 W)
> Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab,IEEE802.3z standards.
> Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards.
> Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE.
> A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.

Unit Box Height0.09
Unit Box Length0.54
Unit Box Width0.34
Desktop/pedestalYes
Rack 1UYes
10/100/1000BASE-T/SFP combo2
10Base-T / 100Base-TX24
RJ4526
SFP2
Model nameCS4226-24ET-240
Primary port count24
PoE ports24
PoE power budget240Watts
Switching capacity8.8Gbps
Forwarding rate6.55Mpps
Power supplyInbuilt
Dimensions440 mm × 220 mm × 44 mm
Units per Shipping Box1
Unit Calculated Volume0.01652cubm
Product Net Weight2.47kg
Unit Calculated Weight3.22kg
SKU: DAHUA-CS4226-24ET-240 Category:

Based on 1 review

0.0 overall
1
0
0
0
0

Only logged in customers who have purchased this product may leave a review.

  1. Simon Fletcher –

    I’m impressed with this Dahua PoE switch. Setting up the 24 ports was a breeze, and the cloud management works like a charm. It fits perfectly in our rack. Great service from the apsardze24 team—highly recommend them for reliable networking gear. It’s a real bang for your buck!

    Simon Fletcher –

Does this cloud-managed switch include fiber optic SFP modules in the box?

The device features 2 SFP combo ports for fiber connectivity; however, the SFP transceivers are not included in the standard package. For advice on compatible modules, please contact our technical support at [email protected].

Can I install this Dahua 240W switch into a standard server rack?

Yes, the switch is designed for 1U rackmount installation with dimensions of 440 mm × 220 mm × 44 mm. It features a durable metal casing and fits perfectly into standard 19-inch server cabinets.

What happens if my 26-port Dahua PoE switch fails after the first year?

We provide a comprehensive 2-Year Warranty for both private and business clients. Our service center is located in Riga, ensuring that any necessary repairs or inspections are handled locally and quickly by Apsardze24.lv.

How can I manage the CS4226-24ET-240 settings from my smartphone?

You can manage and monitor this switch remotely using the DoLynk Care app, which is available for both iOS and Android devices. This cloud-based management platform allows you to check power status and restart PoE ports directly from your phone.

Can the CS4226-24ET-240 power high-performance PTZ cameras?

Yes, this switch supports the IEEE802.3bt standard, delivering up to 90W (Hi-PoE) on designated ports. This provides more than enough power for heavy-duty infrared PTZ cameras or speed domes that require high wattage.

How many IP cameras can I record simultaneously using this 240W budget?

With 24 PoE ports and a 240W total budget, you can typically power up to 24 standard IP cameras. When using modern H.265+ codecs, the switch efficiently handles the data traffic (6.55 Mpps forwarding rate) required for simultaneous high-definition recording.

Is the CS4226-24ET-240 an official EU version with firmware support?

Yes, Apsardze24.lv is an authorized partner, and we only sell the official EU version. This means you will have full access to official firmware updates and no regional compatibility issues.

Does the Dahua CS4226-24ET-240 support gigabit speeds for all connected devices?

The 24 primary PoE ports are 10/100 Mbps, which is the standard requirement for most IP cameras. For high-speed data transfer to your NVR or router, you should use the 2 dedicated Gigabit Combo (RJ45/SFP) uplink ports.
