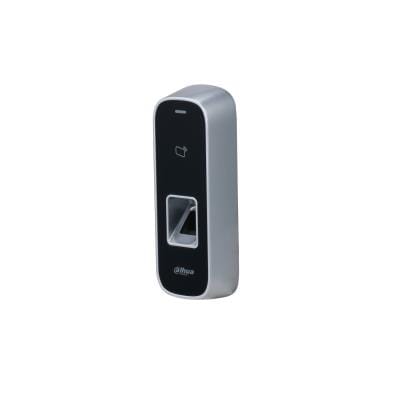

ASI1202M (Black) Dahua Outdoor Fingerprint & Mifare Card Access Controller IP65 IK10

  • Unlock Modes: Fingerprint (3000 users) & Mifare Card (13.56MHz)
  • Durability: Zinc Alloy Housing, IP65 Waterproof, IK10 Vandal-proof
  • Protocols: Supports RS-485 & Wiegand (Reader/Controller modes)
  • Fast shipping to Latvia, as well as Estonia and Lithuania. 2-Year Warranty for all clients (Business & Private).

Dahua

140,81€
€116.37 (bez PVN)

12V DC 1A | Colour Black

CODE LOCK SMART

> Material: Zinc alloy plate
> Support card unlock, fingerprint unlock, and card & fingerprint unlock
> Card reading frequency is 13.56MHz (Mifare); card reading distance is 1cm–3cm
> Support both RS-485 protocol and Wiegand protocol
> IP65, IK10
> Fingerprint Capacity: 3000
> Support duress alarm, tamper alarm, intrusion alarm, door contact timeout alarm, and illegal card exceeding time alarm
> Support guest card, patrol card, VIP card, general user card, and card for the disabled


Unit Box Height0.095
Unit Box Length0.205
Unit Box Width0.105
ModelASI1202M
Power supply requirements12V DC 1A
ColourBlack
Dimensions54.8 mm × 159.2 mm × 35.0 mm
Units per Shipping Box1
Unit Calculated Volume0.002045cubm
Product Net Weight0.7kg
Unit Calculated Weight0.827kg
SKU: DAHUA-ASI1202M Category:

Based on 0 reviews

0.0 overall
0
0
0
0
0

Only logged in customers who have purchased this product may leave a review.

There are no reviews yet.

What type of access cards does the Dahua ASI1202M read?

This model is designed for **Mifare (13.56MHz)** cards and key fobs. Please note that older 125kHz EM standard cards are not compatible with this reader.

Is the ASI1202M suitable for outdoor installation?

Yes, absolutely. It features a Zinc Alloy housing with an **IP65** waterproof rating and **IK10** vandal-proof rating, making it highly durable for outdoor gates and exposed entryways.

Is this the global or Chinese version of the ASI1202M?

We supply the **Official EU Version** of the product. It has no region locks, supports English firmware updates, and comes directly from authorized distribution channels. Apsardze24.lv guarantees authenticity.

How do I wire a specific magnetic lock to the ASI1202M?

Wiring can vary depending on whether your lock is Fail-Safe or Fail-Secure (NC/NO). If the standard manual does not clarify your specific setup, please send your wiring diagram to **[email protected]** for assistance.

Can this device work as a slave reader for a third-party controller?

Yes. While it is a standalone controller, it also supports **Wiegand** and RS-485 protocols, allowing you to connect it as a reader to a larger, third-party access control system.

Which mobile app works with the Dahua ASI1202M?

For remote management and notifications on your phone, you should download the **DMSS** app. It is available for free on both iOS and Android platforms.

How many users can I register on the ASI1202M?

This device supports a high capacity of up to **3,000 fingerprints** and 30,000 cards. It also stores up to 150,000 historical attendance/entry records locally.

What if the device stops working after the first year?

We provide a comprehensive **2-Year Warranty** for both business and private customers. All warranty repairs are handled locally at our service center in **Riga**, ensuring you don't have to wait for international shipping.

Does the package include a power supply?

No, the power adapter is usually sold separately. You will need a standard **12V DC 1A** power supply to operate this access controller.
