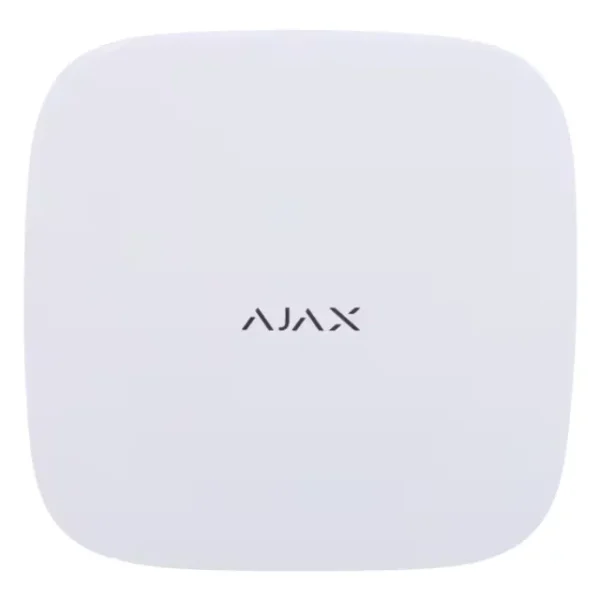

Hub (2g) AJAX Jeweller wireless security control panel central module white

Security system AJAX central module (white)

– Jeweller wireless technology allows Ajax Hub to securely monitor all network devices up to 2000 meters away in open space or enclosed spaces
– ARM processor provides additional power for critical tasks
– uses Ethernet connection with GSM backup
– Can work simultaneously with up to 100 devices
– No more than 10 users and a security company can connect to the system for monitoring using Contact ID
– All sockets and buttons are hidden inside the casing
– Tamper-resistant casing
– External power supply immediately triggers an alarm
– Backup battery operates for up to 10 hours
– Jamming detection, communication channel encryption, and authentication
– In case of channel failure, Ajax Hub automatically selects a consistent frequency
– In case of network failure, you will be informed via GSM signal
– Ajax Hub will provide you with updates using its DeliverAnyway delivery algorithm, even in cases of network failure
– The system works even with very poor connections: the system operates at a speed of only 0.5 kbit/s
– Two-way communication allows periodic checks and easy adjustments
– Software updates are free and automatic
– The system can be easily controlled via remote control, smartphone app, or web browser
– Ajax Hub securely maintains the entire event history
– Geofence technology can remind you to activate the security system when you leave and deactivate it when you return
– The system can be easily installed in less than 15 minutes using interactive manuals and SmartBracket mounts
– Connection quality, device detection area, and radio noise level can be checked remotely
– Devices are connected to Ajax Hub with a single click
– Ultra-thin AC adapter is built into the casing
– Ajax HUB device thickness is less than 4 cm

Size: 162.7×162.7×35.9 mm
Weight: 320 g
Power: 110–250 V AC
Radio signal power: 25 mW
Operating temperature range: from 0 °C to +50 °C
Connection: GSM (850/900/1800/1900 MHz), Ethernet
Communication protocol: Jeweller (868.0–868.6 MHz)
Operating range: Up to 2000 m (6552 feet) (in open space)
Backup battery: Li-Ion 2 Ah (battery life up to 10 hours *)
Available apps: iOS 7.1 or later, Android 4.1 or later
Maximum number of users: 10
Maximum number of connected devices: 100
Protection against tampering: available
