UPS For Workstations

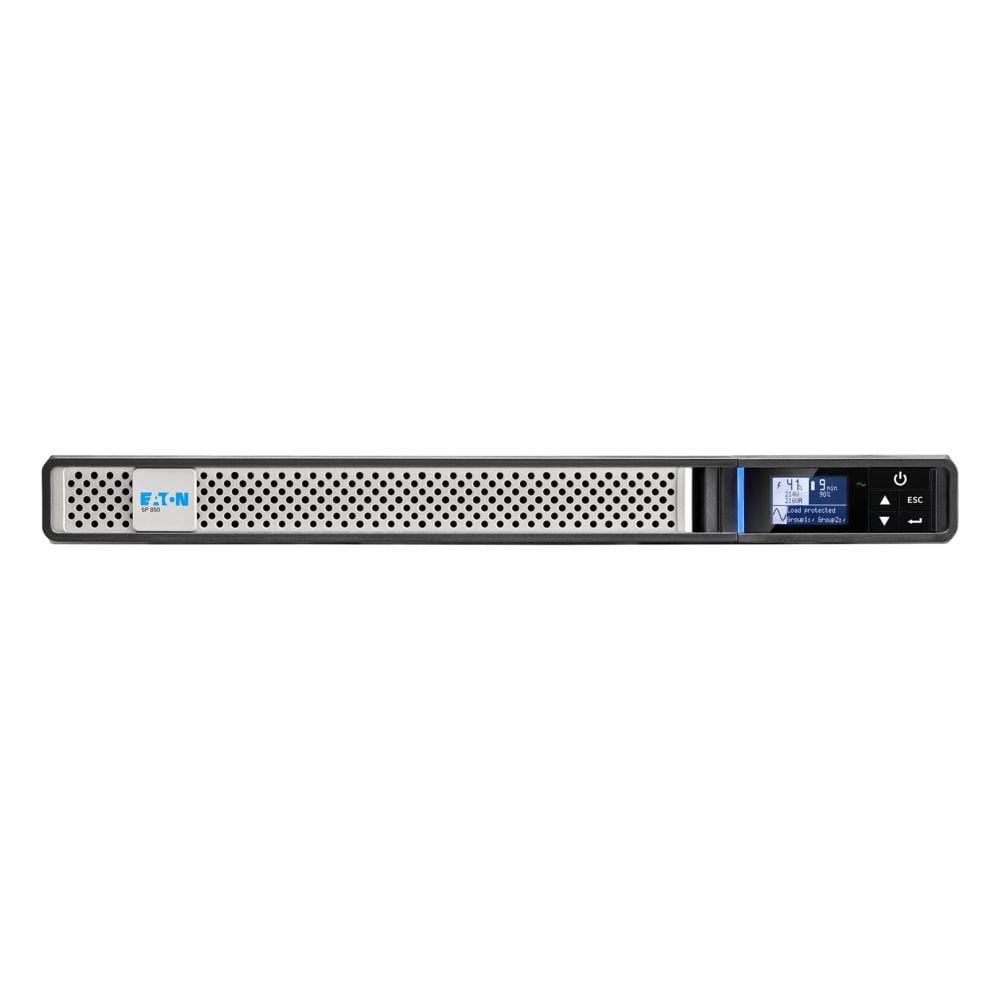

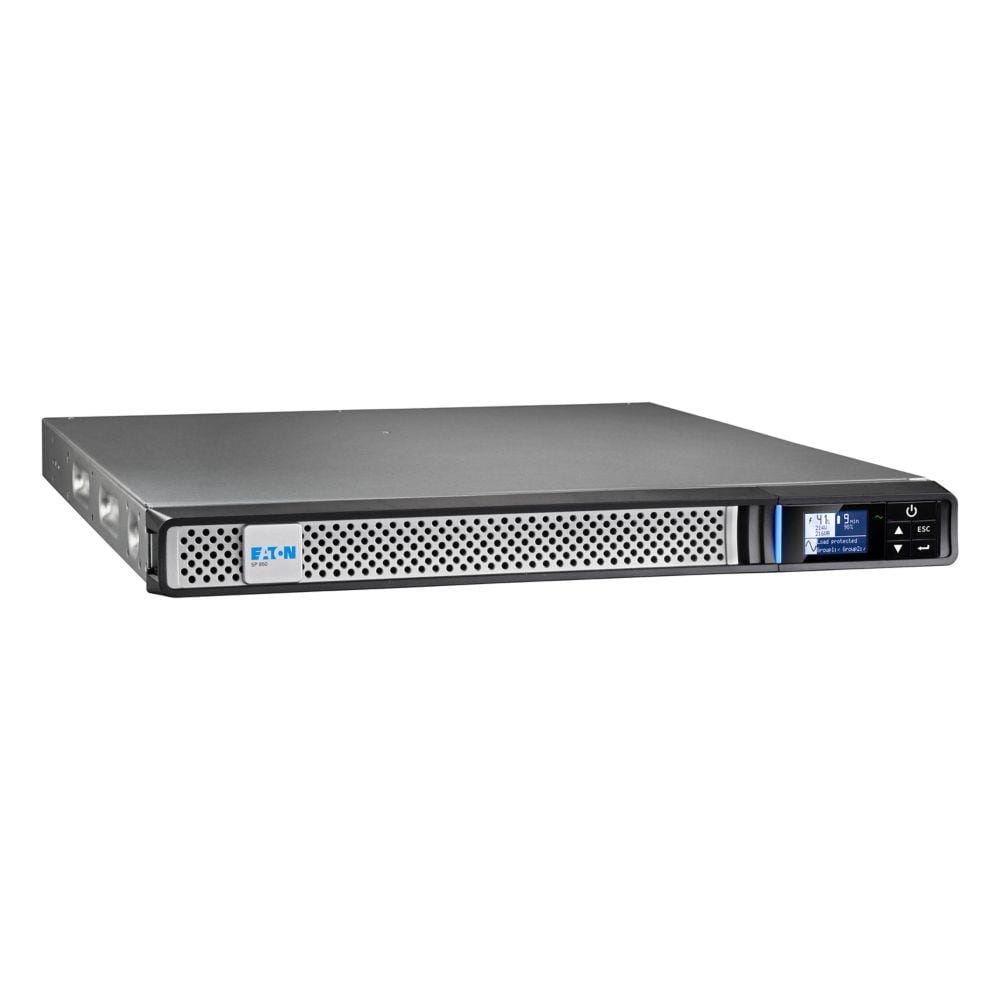

5P850IRNG2 (Black/Silver) Eaton 850VA 680W Line-Interactive Rackmount 1U UPS
- Power Capacity: 850VA / 680W with 98% energy efficiency.
- Output Quality: Pure Sine Wave for sensitive server and IT equipment.
- Design: Compact 1U Rackmount form factor with intuitive LCD display.
- Connectivity: Integrated USB and Serial ports for smart power management.
- Fast shipping to Latvia, as well as Estonia and Lithuania. 2-Year Warranty for all clients (Business & Private).
951,51€
€786.37 (bez PVN)
UPS topology Line-Interactive | Output power capacity 0.85 kVA | Output power 680 W | Waveform Sine | Input operation voltage (min) 150 V | Input operation voltage (max) 294 V | Input frequency 47/70 Hz | Output frequency 50/60 Hz | Heat dissipation 307 BTU/h | Number of input phases 1 | Number of output phases 1 | Efficiency 98 % | AC outlet types C13 coupler | Power plug C14 coupler | USB port Yes | Serial interface Yes | Battery technology Sealed Lead Acid (VRLA) | Battery voltage 6 V | Form factor Rackmount | Colour Black,Silver | Display type LCD | Operating temperature (T-T) 0 – 40 °C | Operating altitude 0 – 3000 m | Rack mount kit Yes | Weight 13.8 kg
| Summary | Eaton 5P850IRNG2. UPS topology: Line-Interactive, Output power capacity: 0.85 kVA, Output power: 680 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 6 V. Form factor: Rackmount, Product colour: Black, Silver, Display type: LCD. Compliance certificates: Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RoHS, Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS |
| Unit Box Height | 0.17 |
| Unit Box Length | 0.59 |
| Unit Box Width | 0.54 |
| Automatic Voltage Regulation (AVR) | Yes |
| Efficiency | 98% |
| Heat dissipation | 307BTU/h |
| Input frequency | 47/70Hz |
| Input operation voltage (max) | 294V |
| Input operation voltage (min) | 150V |
| Noise level | 35dB |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Output frequency | 50/60Hz |
| Output operation voltage (max) | 240V |
| Output operation voltage (min) | 200V |
| Output power | 680W |
| Output power capacity | 0.85kVA |
| Power factor | 0.8 |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| AC outlet types | C13 coupler |
| AC outlets quantity | 4AC outlet(s) |
| Network card slot | Yes |
| Power plug | C14 coupler |
| RS-232 ports | 1 |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| USB port | Yes |
| USB port type | USB Type-B |
| Battery capacity | 7Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 6V |
| Hot-swap battery | Yes |
| Number of battery cells | 4 |
| Typical backup time at half load | 13min |
| Display type | LCD |
| Form factor | Rackmount |
| Product colour | Black,Silver |
| Operating altitude | 0 – 3000m |
| Operating relative humidity (H-H) | 0 – 90% |
| Operating temperature (T-T) | 0 – 40°C |
| Cables included | USB cable |
| Certification | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS |
| Compliance certificates | Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)/RoHS |
| Quick installation guide | Yes |
| Rack mount kit | Yes |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Depth | 509mm |
| Height | 43.2mm |
| Weight | 13780g |
| Width | 438mm |
| Model | 5P850IRNG2 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.05416cubm |
| Unit Calculated Weight | 18.5kg |
Based on 1 review
Only logged in customers who have purchased this product may leave a review.
Can I replace the batteries in the Eaton 850VA 680W UPS without turning off my connected devices?
Yes, this UPS features hot-swappable batteries. You can replace the internal battery modules through the front panel while the UPS continues to power your critical equipment, ensuring zero downtime for your server rack.
Is the Eaton 5P850IRNG2 sold here the official EU version?
Yes, this is the official EU version of the 5P850IRNG2. It is fully compliant with European voltage standards and safety certifications. Apsardze24.lv is an authorized partner, ensuring you receive a genuine product with full software support and firmware update compatibility.
How much backup time does the 5P850IRNG2 provide for a standard 300W server setup?
The Eaton 5P850IRNG2 offers approximately 13 minutes of runtime at half load (340W). For a 300W setup, you can expect slightly more than 13 minutes, providing ample time for your systems to trigger an automatic safe shutdown during a blackout.
Which software do I need to monitor and manage the 5P850IRNG2 from my computer?
For smart power management, you should download Eaton Intelligent Power Manager (IPM) or Intelligent Power Protector (IPP). These applications allow you to monitor the UPS status and gracefully shut down your operating system via the included USB or Serial cables.
Can I install the 5P850IRNG2 in a shallow 1U rack cabinet?
The 5P850IRNG2 has a compact 1U form factor with a height of only 43.2mm. However, it has a depth of 509mm, so please ensure your rack cabinet has sufficient internal depth (including cable clearance) before installation.

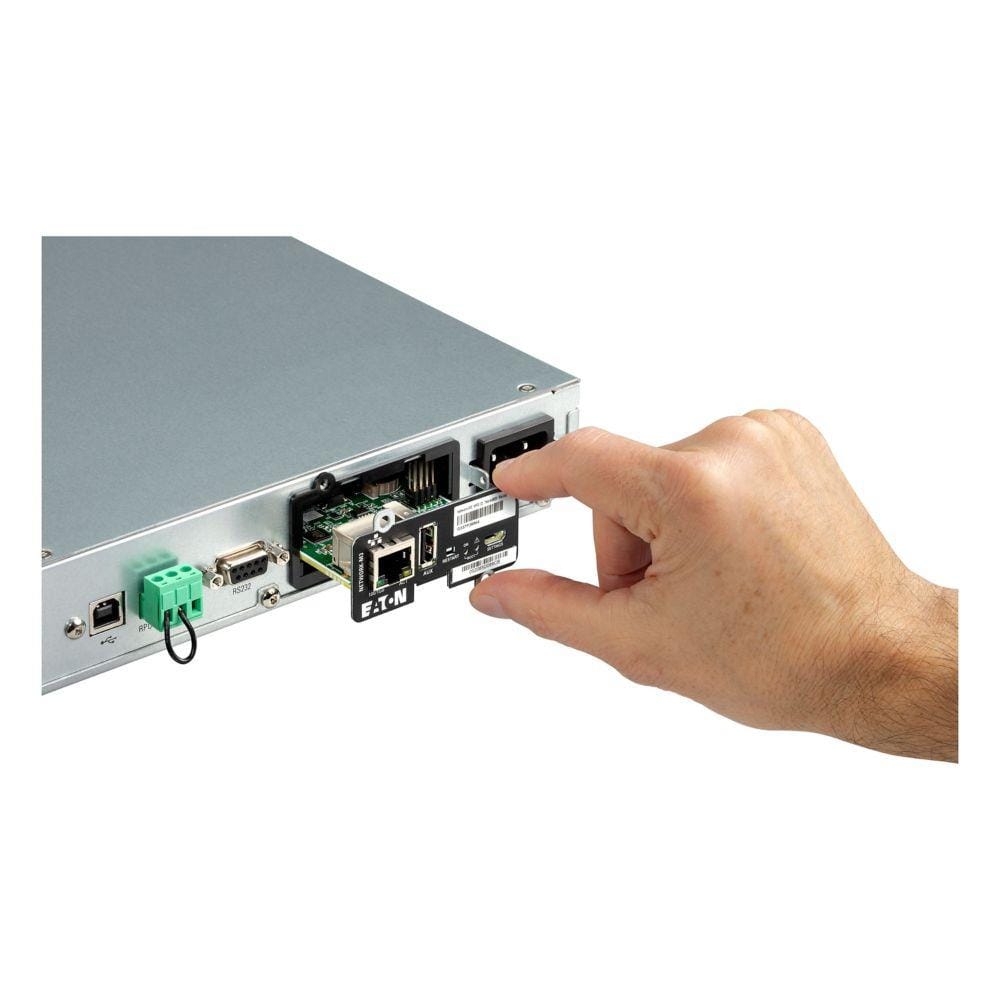

Does the 5P850IRNG2 support remote management over a network (LAN)?
While it comes with USB and Serial ports as standard, the 5P850IRNG2 also features a communication slot. By adding an optional Eaton Network-M2 card, you can fully manage and monitor the UPS remotely via a web browser or SNMP.
What is the specific surge protection Joule rating for the 5P850IRNG2?
Since this specific technical detail is not listed in the standard manufacturer specifications provided, please contact our technical support team at [email protected] for an in-depth data sheet or clarification.
Is the output of this UPS safe for sensitive IT equipment with Active PFC power supplies?
Yes, this model provides a Pure Sine Wave output when operating on battery mode. This high-quality signal is essential for sensitive servers, storage devices, and high-end networking hardware that require clean power to function correctly.
What happens if the internal battery fails after the first year of use?
We provide a comprehensive 2-Year Warranty for both business and private clients. If any issues arise, our local service center at Apsardze24.lv in Riga handles repairs and replacements quickly, so you don't have to worry about expensive international shipping.
