UPS For Workstations

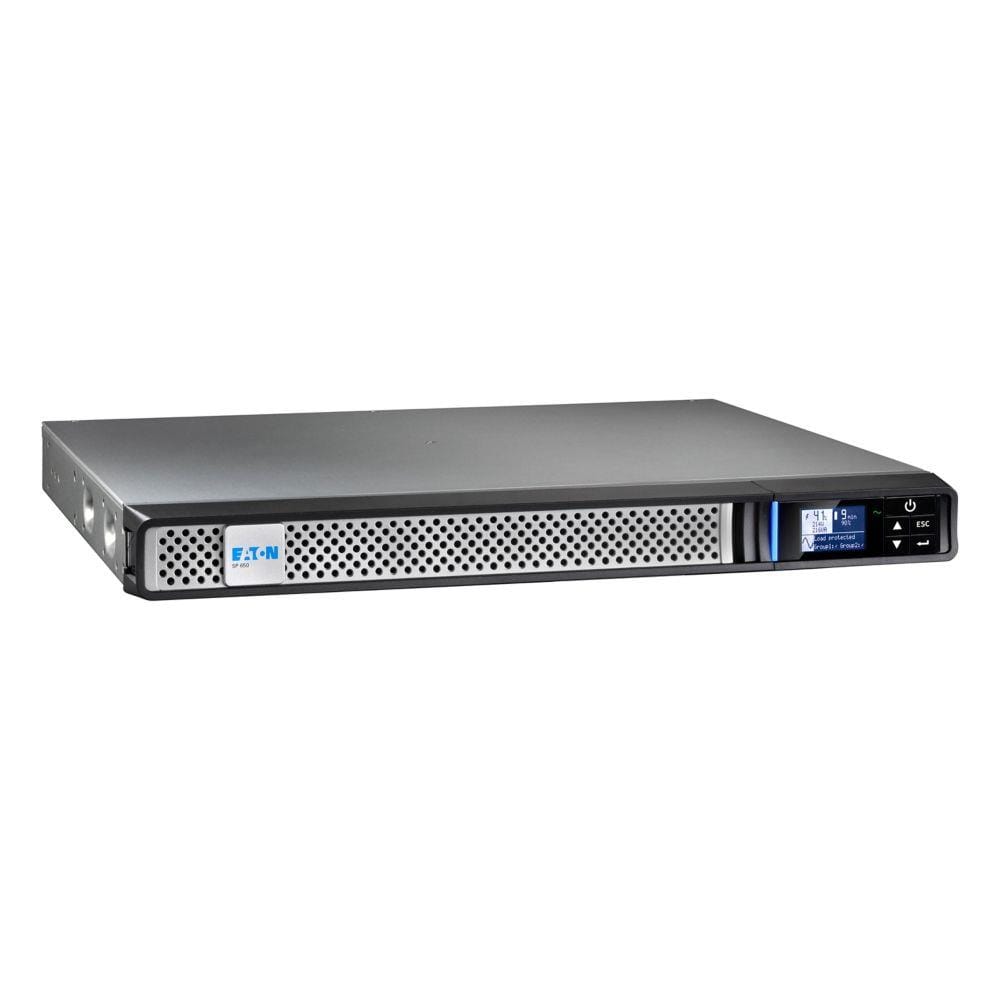

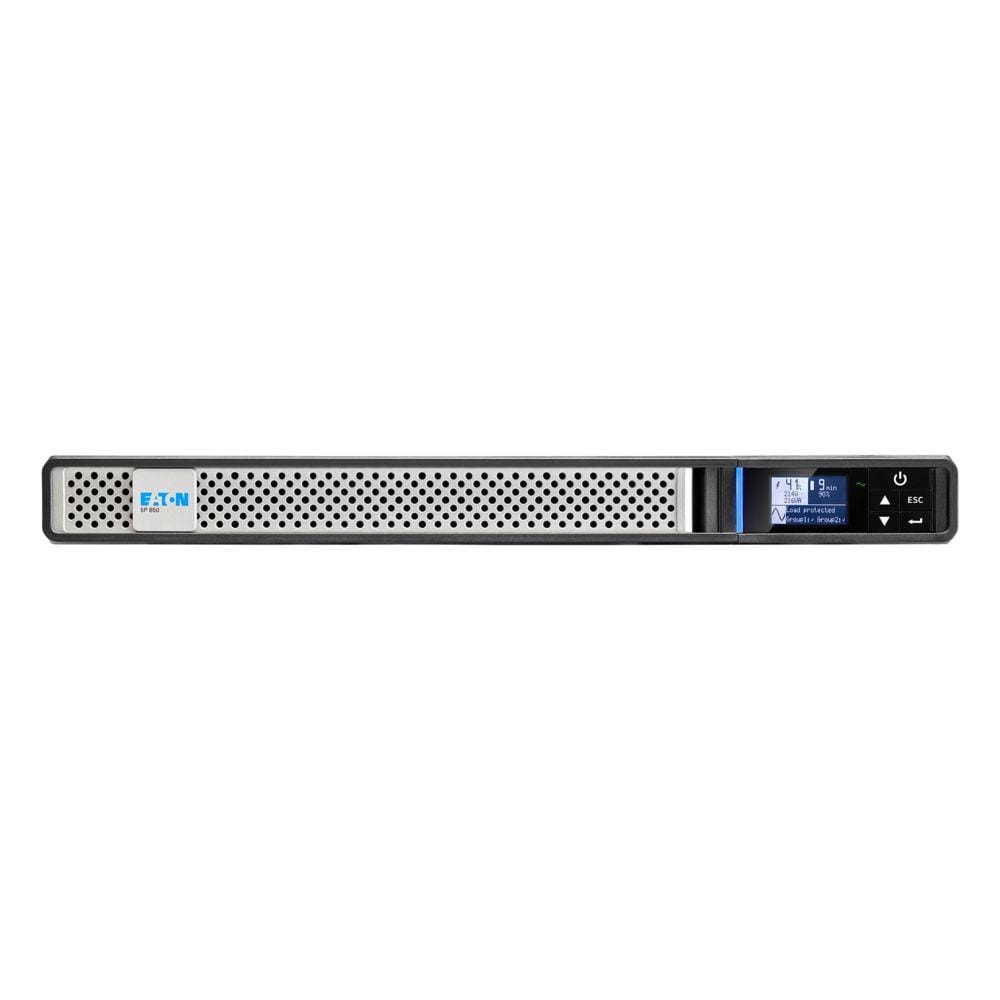

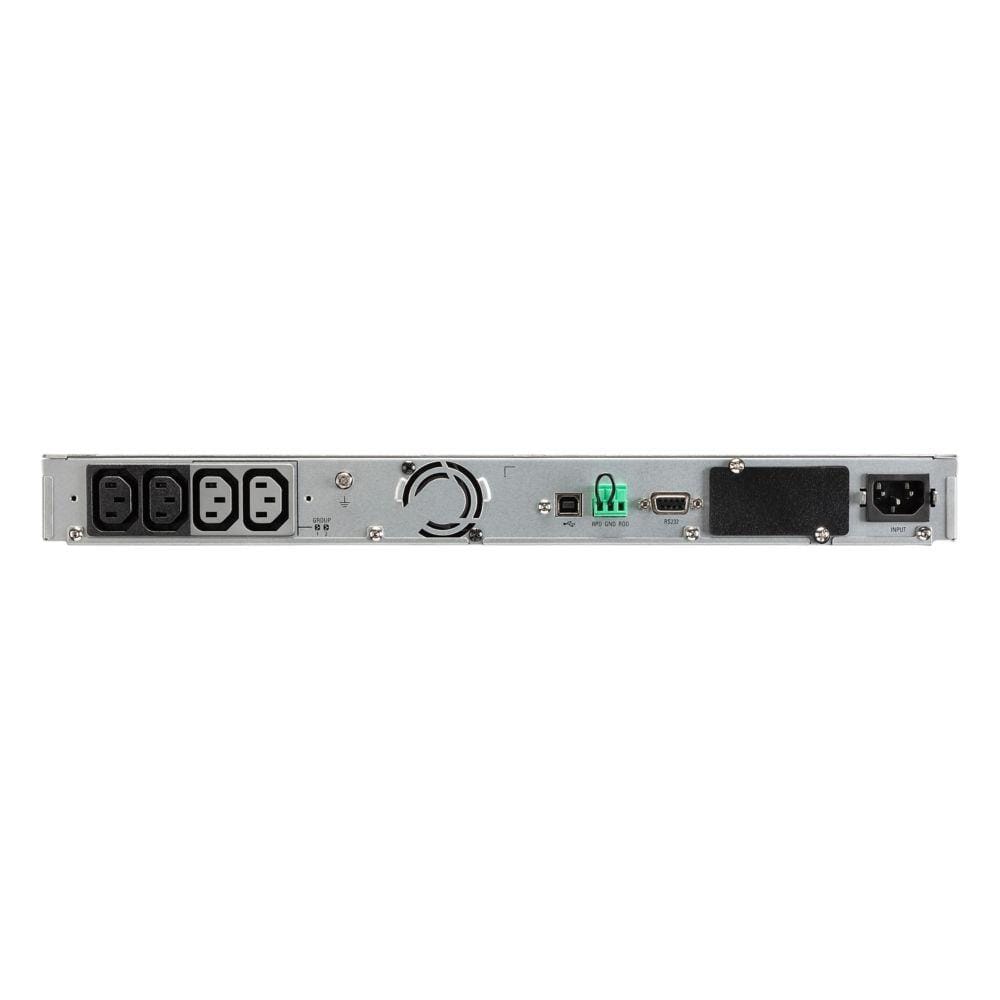

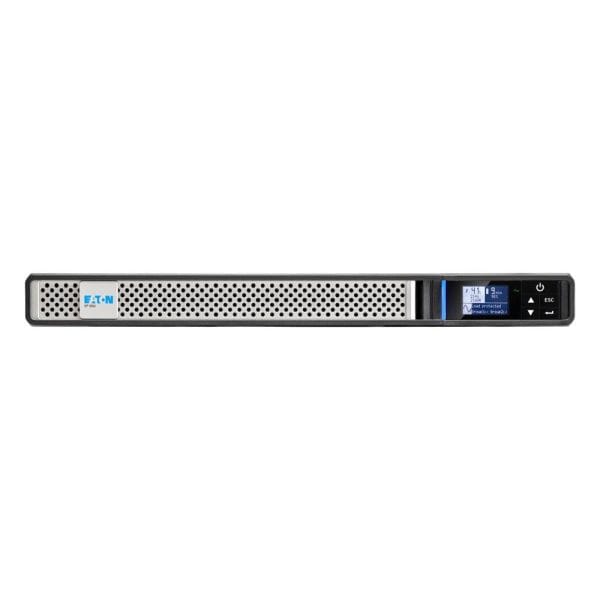

5P650IRNG2 Black 520W Eaton 650VA Line-Interactive Pure Sine Wave 1U Rackmount UPS
- Power: 650VA/520W
- Wave: Pure Sine
- Format: 1U Rack
- Fast shipping to Latvia, Estonia and Lithuania. 2-Year Warranty.
778,08€
€643.04 (bez PVN)
UPS topology Line-Interactive | Output power capacity 0.65 kVA | Output power 520 W | Waveform Sine | Input operation voltage (min) 150 V | Input operation voltage (max) 294 V | Input frequency 47/70 Hz | Output frequency 50/60 Hz | Heat dissipation 461 BTU/h | Number of input phases 1 | Number of output phases 1 | Efficiency 97 % | AC outlet types C13 coupler | Power plug C14 coupler | USB port Yes | Serial interface Yes | Battery technology Sealed Lead Acid (VRLA) | Battery voltage 6 V | Form factor Rackmount | Colour Black,Silver | Display type LCD | Operating temperature (T-T) 0 – 40 °C | Operating altitude 0 – 3000 m | Rack mount kit Yes | Weight 8.68 kg
| Summary | Eaton 5P650IRNG2. UPS topology: Line-Interactive, Output power capacity: 0.65 kVA, Output power: 520 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 6 V. Form factor: Rackmount, Product colour: Black, Silver, Display type: LCD. Compliance certificates: Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RoHS, Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS |
| Unit Box Height | 0.17 |
| Unit Box Length | 0.585 |
| Unit Box Width | 0.45 |
| Automatic Voltage Regulation (AVR) | Yes |
| Efficiency | 97% |
| Heat dissipation | 461BTU/h |
| Input frequency | 47/70Hz |
| Input operation voltage (max) | 294V |
| Input operation voltage (min) | 150V |
| Noise level | 35dB |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Output frequency | 50/60Hz |
| Output operation voltage (max) | 240V |
| Output operation voltage (min) | 200V |
| Output power | 520W |
| Output power capacity | 0.65kVA |
| Power factor | 0.8 |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| AC outlet types | C13 coupler |
| AC outlets quantity | 4AC outlet(s) |
| Network card slot | Yes |
| Power plug | C14 coupler |
| RS-232 ports | 1 |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| USB port | Yes |
| USB port type | USB Type-B |
| Battery capacity | 9Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 6V |
| Hot-swap battery | Yes |
| Number of battery cells | 2 |
| Typical backup time at half load | 7min |
| Display type | LCD |
| Form factor | Rackmount |
| Product colour | Black,Silver |
| Operating altitude | 0 – 3000m |
| Operating relative humidity (H-H) | 0 – 90% |
| Operating temperature (T-T) | 0 – 40°C |
| Cables included | USB cable |
| Certification | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS |
| Compliance certificates | Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)/RoHS |
| Quick installation guide | Yes |
| Rack mount kit | Yes |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Depth | 361mm |
| Height | 43.2mm |
| Weight | 8680g |
| Width | 438mm |
| Model | 5P650IRNG2 |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.04475cubm |
| Unit Calculated Weight | 11.3kg |
Based on 1 review
Only logged in customers who have purchased this product may leave a review.
What is the warranty period for the Eaton 5P650IRNG2 and where is it serviced?
The Eaton 5P650IRNG2 comes with a 2-year warranty covering both private and business users. Because Apsardze24.lv is based in the Baltics, service is handled through regional channels, ensuring faster turnaround times compared to shipping units to distant international repair centers.
Will the 1U Eaton 5P650IRNG2 fit into a shallow wall-mount rack?
This UPS is specifically designed for space-saving efficiency with a 1U height and a depth of only 361mm. It is an ideal fit for shallow networking cabinets and wall-mount racks where space is at a premium. A rack-mount kit is included in the box for easy installation.
How long will the 5P650IRNG2 keep my server running during a power outage?
The backup time depends on your power draw. At a half-load of approximately 260W, the 5P650IRNG2 provides about 7 minutes of runtime, which is typically sufficient to safely save data and perform an automated graceful shutdown of your equipment.
Does the 5P650IRNG2 provide enough power for multiple high-performance workstations?
The unit provides up to 520W of power. To determine if this fits your specific setup of multiple machines, we recommend checking the combined wattage of your hardware. For a detailed load calculation, please contact our technical support team at [email protected].
Can I replace the battery in the 5P650IRNG2 without powering down my equipment?
Yes, the 5P650IRNG2 features hot-swappable batteries. This allows you to replace the internal battery cells while the UPS continues to provide power to your connected devices, ensuring that your network services remain online during maintenance.
Is the 5P650IRNG2 sold here the official EU version?
Yes, we only stock the official EU version of the Eaton 5P650IRNG2. This ensures that you receive a product fully compliant with European safety standards, local power grid specifications, and official firmware update support. Apsardze24.lv is a reliable source for authentic Eaton power protection.
Why is the Pure Sine Wave output of the 5P650IRNG2 important for my gear?
Modern servers and high-end workstations with Active PFC power supplies require a Pure Sine Wave to function correctly. The 5P650IRNG2 ensures a clean, high-quality signal that prevents hardware damage or unexpected reboots that often occur with cheaper 'simulated' sine wave UPS units.
Can I monitor the Eaton 5P650IRNG2 remotely from my computer?
Yes, you can manage the Eaton 5P650IRNG2 using Eaton Intelligent Power Manager (IPM) or Intelligent Power Protector (IPP) software via the included USB or serial ports. For full remote network management over IP, there is an integrated slot for an optional Gigabit Network Card.
Does the 5P650IRNG2 support automatic voltage regulation (AVR)?
Yes, the line-interactive topology of the 5P650IRNG2 includes Automatic Voltage Regulation. It can correct fluctuating incoming voltages (between 150V and 294V) without switching to battery power, which preserves the battery life for actual blackouts.
