3P700D (Black) 700VA Eaton 420W Offline Ellipse 3P Standby Tower UPS

  • Power: 700VA / 420W
  • Design: Silent Fanless Tower
  • Fast shipping to Latvia, as well as Estonia and Lithuania. 2-Year Warranty.

EATON

124,41€
€102.82 (bez PVN)

UPS topology Standby (Offline) | Output power capacity 0.7 kVA | Output power 420 W | Waveform Stepwise | Input operation voltage (min) 161 V | Input operation voltage (max) 284 V | Input frequency 46/70 Hz | Output frequency 50/60 Hz | Number of input phases 1 | Number of output phases 1 | Efficiency 97 % | Surge protection Yes | AC outlet types C14 coupler | Battery voltage 12 V | Form factor Tower | Colour Black | Display type LED | Operating temperature (T-T) 0 – 40 °C | Operating altitude 0 – 3000 m | Weight 3.7 kg

The 3P Ellipse UPS is Eaton’s latest addition to its power protection solution portfolio. Sleek, attractively designed, and silent in operation, this compact UPS offers an exceptional user experience for backup power in both residential and small business settings.

Power up with confidence
Enjoy up to 12% more power than the previous Ellipse ECO models and a typical runtime of 15 to 20 minutes, ensuring you can handle disruptions smoothly.

Save yourself the hassle and the need for additional adapters by plugging your equipment directly into the UPS using FR, DIN/IT, and IEC outlet options. This unique feature in a predominantly IEC-only market ensures convenience.

Operate any device with confidence, thanks to the built-in surge protection that meets the high-level IEC 61643-11 standards.

Designed for your space
Complement any interior with 3P’s contemporary good looks that also come with versatile usability. Flexible, multi-position design allows the UPS to fit seamlessly into any environment—horizontally, vertically, as well as rack or wall-mounted (with optional kits).

Charge mobile devices whenever you need to using 3P’s choice of USB-A and USB-C charging ports.

Watch, listen or work without distraction.
Enjoy a silent user experience in both residential and business settings thanks to 3P’s discreet, no-fan engineering.

Control at your fingertips
Access status and notifications in real time via mobile app or web browser with an optional CLOUDPS card. With remote now the ‘new normal’ for many small businesses, cloud connectivity brings added control and peace of mind from any location.

  • Power up with confidence
  • Designed for your space
  • Control at your fingertips
SummaryEaton 3P Ellipse. UPS topology: Standby (Offline), Output power capacity: 0.7 kVA, Output power: 420 W. AC outlet types: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Display type: LED. Compliance certificates: CB, CE, RoHS, WEEE, Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Cm
Unit Box Height0.32
Unit Box Length0.285
Unit Box Width0.14
Efficiency97%
Efficiency (ECO mode)97%
Input frequency46/70Hz
Input operation voltage (max)284V
Input operation voltage (min)161V
Noise level25dB
Number of input phases1
Number of output phases1
Output frequency50/60Hz
Output operation voltage (max)284V
Output operation voltage (min)161V
Output power420W
Output power capacity0.7kVA
Output power factor0.6
Surge protectionYes
UPS topologyStandby (Offline)
WaveformStepwise
AC outlet typesC14 coupler
AC outlets quantity4AC outlet(s)
Battery capacity7Ah
Battery voltage12V
Display typeLED
Form factorTower
Product colourBlack
Operating altitude0 – 3000m
Operating relative humidity (H-H)0 – 95%
Operating temperature (T-T)0 – 40°C
CertificationIEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
CE
UKCA
Cm
Compliance certificatesCB/CE/RoHS/WEEE
Rack mount kitNo
Waste Electrical and Electronic Equipment (WEEE) complianceYes
Depth235mm
Height263mm
Weight3700g
Width81mm
Model3P700D
Units per Pallet0
Units per Shipping Box1
Unit Calculated Volume0.01277cubm
Unit Calculated Weight4.32kg
SKU: EATON-3P700D Category:

Based on 1 review

0.0 overall
1
0
0
0
0

Only logged in customers who have purchased this product may leave a review.

  1. Liam O’Connor –

    I picked up this Eaton UPS for my home office, and I’m really impressed. It operates completely silently, which is a huge plus for me. It fits perfectly under my desk and provides peace of mind during storms. Fast shipping from apsardze24.lv was the cherry on top!

    Liam O’Connor –

How can I monitor my 3P700D UPS from my smartphone?

To monitor your UPS status via mobile, you need to install the optional CLOUDPS card. This allows you to track power levels and receive real-time notifications through a web browser or a compatible mobile app on both iOS and Android devices.

What happens if my 700VA Eaton 420W UPS develops a fault after a year?

The product comes with a 2-year warranty for both private and business customers. Our specialized service center is located in Riga, which means repairs and technical inspections are handled locally and quickly without the need to ship the unit abroad.

What type of devices can I plug into the 3P700D UPS?

This model is equipped with four C14 coupler outlets, which are standard for computers, monitors, and networking hardware. Additionally, it features integrated USB-A and USB-C ports specifically for charging mobile devices and tablets.

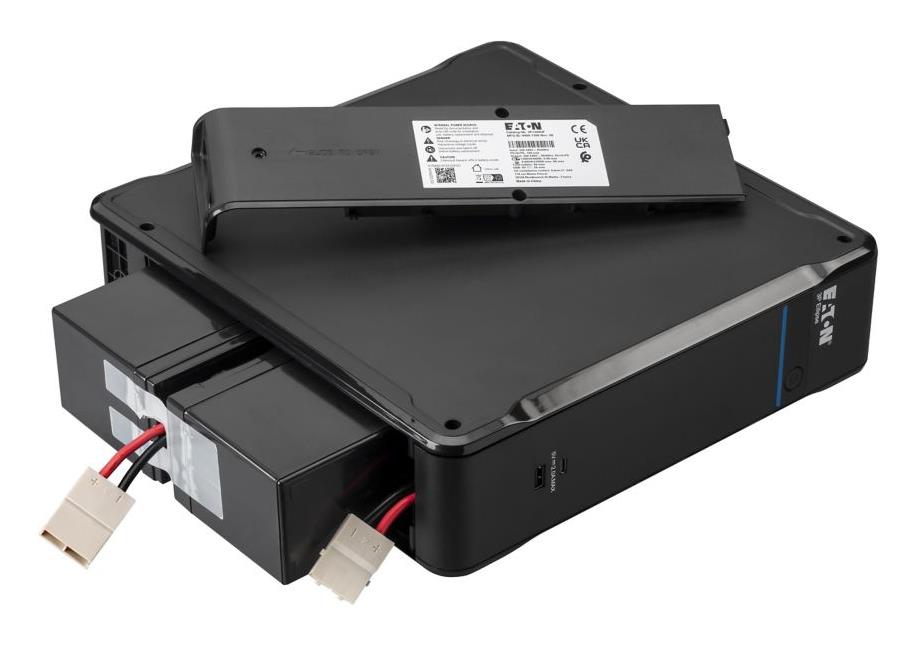

Is the battery inside the 3P700D (Black) 700VA Eaton user-replaceable?

For specific instructions regarding battery maintenance, internal access, and approved replacement procedures for the 3P700D model, please contact our technical support team at [email protected].

Is the Eaton 420W Offline Ellipse 3P UPS loud enough to be distracting in a bedroom?

No, this UPS is specifically engineered with a 'no-fan' design for silent operation. With a noise level of only 25dB, it is ideal for quiet home offices, bedrooms, or residential settings where fan noise would be a distraction.

Does the 3P700D (Black) 700VA Eaton provide protection against lightning strikes?

Yes, the 3P700D includes high-level surge protection that complies with the IEC 61643-11 standard. This safeguards your connected electronics against damaging voltage spikes caused by lightning or electrical grid instability.

Can the Eaton 3P 700VA UPS be mounted in a server rack or on a wall?

Yes, the 3P700D features a versatile multi-position design. It can be placed horizontally on a desk, vertically as a tower, or mounted to a wall or within a rack using optional mounting kits to save floor space.

How long will the 3P700D (Black) 700VA Eaton keep my PC running during a power cut?

The 3P700D typically provides a runtime of 15 to 20 minutes for a standard office workstation. This ensures you have plenty of time to save your work and safely shut down your equipment during a power outage.

Is the 3P700D sold by Apsardze24.lv an official European version?

Yes, we only provide the official EU version of the 3P700D. As an authorized partner, Apsardze24.lv ensures the product is fully compliant with European safety standards (CE/RoHS) and that all future firmware updates will work without region locks.
